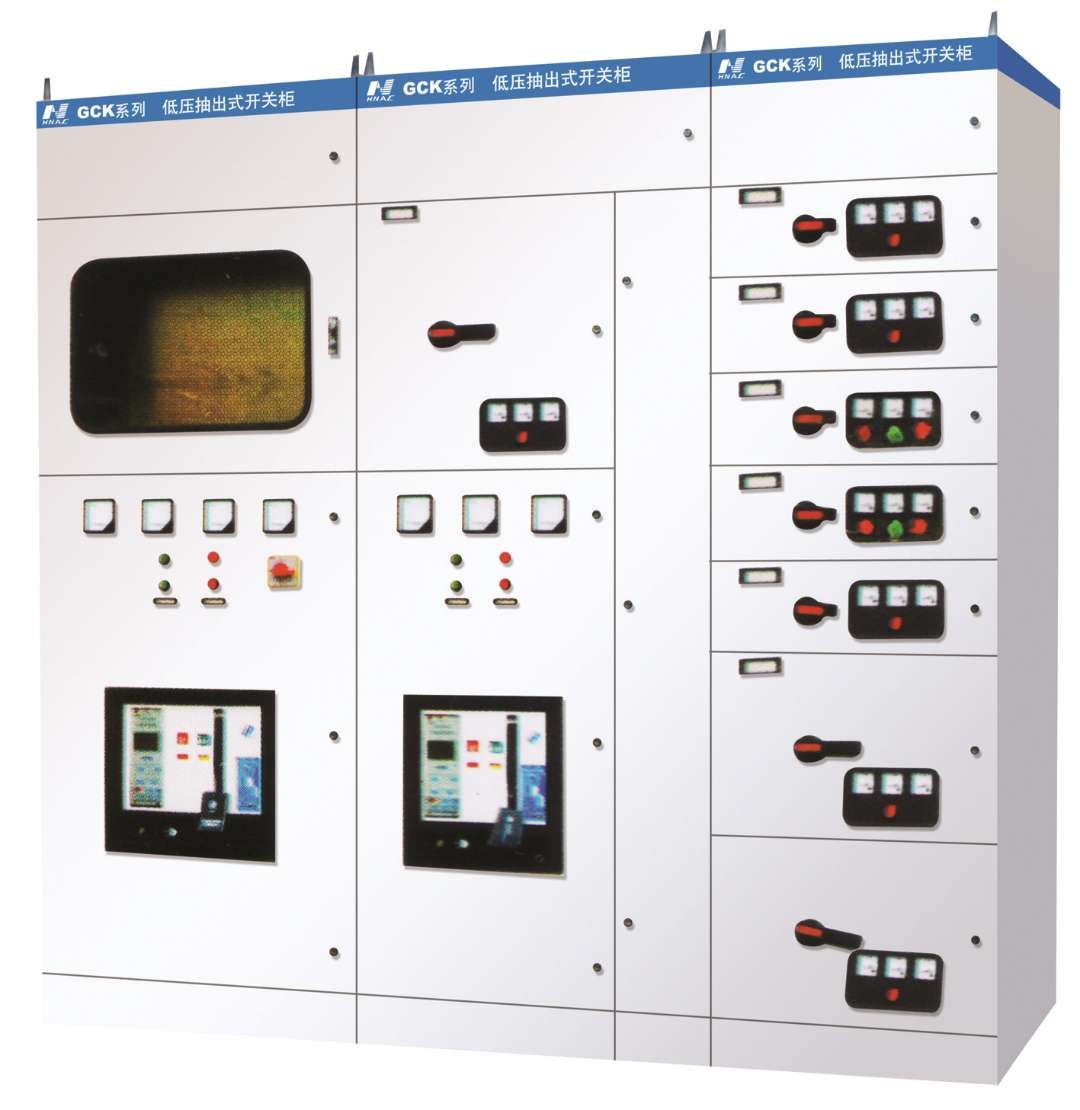

GCK Low Voltage Drawable Switchgears

Electrical & Power Energy Electrical Controls

FOB Price:US$ 1.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : T/T

Keywords:Low Voltag Switchgears Drawable Customizable

Inquire


Add to Favorites

Product Category: Electrical & Power Energy > Electrical Controls Trademark:
Product Package: Wooden box Specifications: Please refer to the details page.
Place of Origin: Changsha Port: Shanghai

1. Structural features

l The series products use the structural section combination as the basic framework. All structural components are fixed with screws. After forming the basic framework, the doors, baffle, clapboard, drawer, mounting bracket, busbar and electrical components are fixed as required to make up the complete switchgear. The product has below features:

l The framework uses rolled section. Positioned by three-dimensional board, and connected by bolt, without welding structure, in order to avoid welding deformation and stress and improve the installation accuracy.

l The installation hole of frame and accessories are changed based on module quantity E=20mm。

l All internal structure are galvanized, the external structure are sprayed with static epoxy powder after pickling and phosphating treated.

l In inlet cabinet of power control center (PC), the top is the horizontal bus, the lower part of horizontal bus is the circuit breaker room, the domestic intelligence circuit breaker can be chosen for indoor use, it can also equipped with circuit breaker of foreign brands according to the requirement of the user, such as ABB, Schneider's products.

2. Ambient conditions

l Ambient air temperature ≤+40℃ and no less than -5℃, the average temperature within 24h ≤+35℃;

l For indoor use, the elevation of using site ≤ 2000m (above this can be negotiated)

l The relative humidity should not exceed 50% at +40℃, while at lower temperatures, larger relative humidity is acceptable, e.g. 90% at +20℃. Considering the change of temperature may sometime cause the condensation, the daily average should be less than 95% and the monthly average less than 90%;

l The gradient between installation surface and vertical plane is ≤ 5°;

l The device should be installed in the location without violent vibration and impact to prevent the electrical components from corrosion.

l For special requirements, please contact the manufacturer for solution.



3. Technical parameters

No.

Item

Unit

Parameters

1

Rated operating frequency

Hz

50-60

2

Rated operating voltage

V

AC:380(660)

10/0.4

0.4

3

Rated insulation voltage

V

660

2000

4

Rated operating current

Horizontal busbar

A

1600-3150

16-65

Vertical busbar

A

400-800

5

Rated peak withstand current

Horizontal busbar

KA

80(Effective value)/1S

Vertical busbar

KA

50(Effective value)/1S

6

Ligntning impulse withstand voltage

Horizontal busbar

KA

175

Vertical busbar

KA

110

7

Main circuit connector

A

200、400、600

8

Auxiliary circuit connector

A

16

9

Power frequency withstand voltage

V/min

2500

10

Max capacity of control motor

KW

0.45-155

11

Protection grade


IP40

IP23

IP30

12

Operation mode


Local/Remote/Auto

IP23

IP30



4. Size specification

No

Description

Rated current

(A)

Power inlet/ outlet method

Configuration function

External dimension (mm)

Height of drawer (mm)

Qty of drawer (mm)

1

Smart CB

630A

Busbar inlet from top/cable inlet from bottom

Power/

Bus couple

800*800*2200

1200

6*200

2

Smart CB

800A

Busbar inlet from top/cable inlet from bottom

Power/

Bus couple

800*800*2200

1200

6*200

3

Smart CB

1250A

Busbar inlet from top/cable inlet from bottom

Power/

Bus couple

800*800*2200

1200

6*200

4

Smart CB

1600A

Busbar inlet from top/cable inlet from bottom

Power/

Bus couple

800*800*2200

1200

6*200

5

Smart CB

2000A

Busbar inlet from top/cable inlet from bottom

Power/

Bus couple

800*800*2200

1200

6*200

6

Smart CB

2500A

Busbar inlet from top/cable inlet from bottom

Power/

Bus couple

1000*800*2200

1200

6*200

7

Smart CB

3150A

Busbar inlet from top/cable inlet from bottom

Power/

Bus couple

1000*800*2200

1200

6*200

8

Smart CB

630A

Busbar inlet from top/cable inlet from bottom

Dual power switch

800*800*2200

1200

6*200

9

Smart CB

800A

Busbar inlet from top/cable inlet from bottom

Dual power switch

800*800*2200

1200

6*200

10

Smart CB

1250A

Busbar inlet from top/cable inlet from bottom

Dual power switch

800*800*2200

1200

6*200

11

Smart CB

1600A

Busbar inlet from top/cable inlet from bottom

Dual power switch

800*800*2200

1200

6*200

12

Smart CB

2000A

Busbar inlet from top/cable inlet from bottom

Dual power switch

800*800*2200

1200

6*200

13

Smart CB

2500A

Busbar inlet from top/cable inlet from bottom

Dual power switch

1000*800*2200

1200

6*200

14

Smart CB

3150A

Busbar inlet from top/cable inlet from bottom

Dual power switch

1000*800*2200

1200

6*200

15

MCCB

32-100

Inlet from left/ Onlet from right

Feeder outlet

600*800*2200

200

1*200

16

MCCB

125-225

Inlet from left/ Onlet from right

Feeder outlet

600*800*2200

200

1*200

17

MCCB

225-400

Inlet from left/ Onlet from right

Feeder outlet

600*800*2200

400

2*200

18

MCCB

400-630

Inlet from left/ Onlet from right

Feeder outlet

600*800*2200

400

2*200
