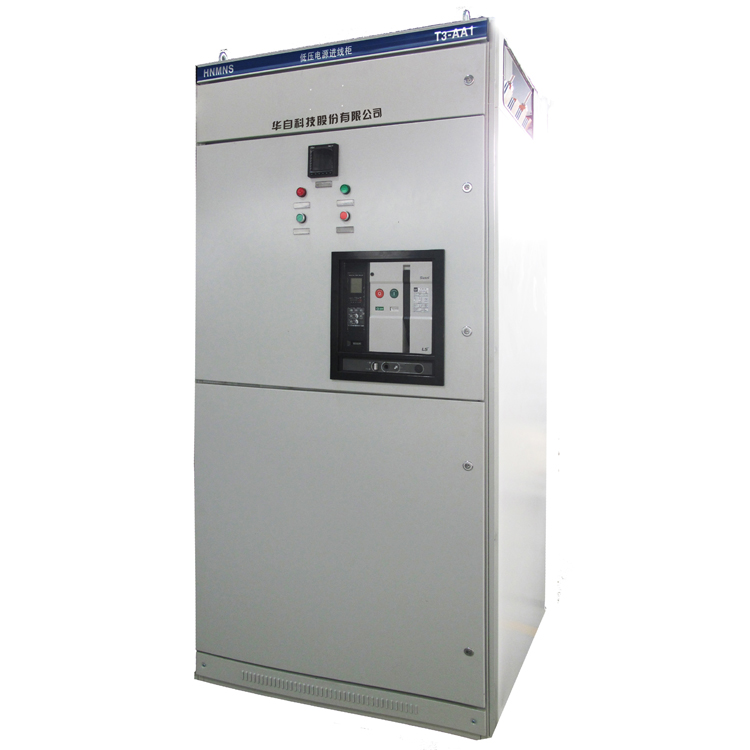

HNMNS Low Voltage Withdrawable Switchgear

Electrical & Power Energy Electrical Controls

FOB Price:US$ 1.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : T/T

Keywords:Low Voltage Withdrawable Switchgear Switchgear Customizable

Inquire


Add to Favorites

Product Category: Electrical & Power Energy > Electrical Controls Trademark:
Product Package: Wooden box Specifications: Please refer to the details page
Place of Origin: Changsha Port: Shanghai

1. Structural feature

l The power distribution center (PC) cubicle is divided into four (04) compartments. The horizontal bus compartment is located on the rear upper part of the cubicle; the function unit compartment is on front upper part; the cable compartment is rear lower part while the control circuit and instrument compartment on front upper part.

l Separation: the horizontal bus compartment, function unit compartment and cable compartment are separated with steel plate.

l The flame retardant polydiphenyl ether plastic housing is used between the control circuit compartment and function unit compartment.

l The function unit compartment and cable compartment are separated by steel plate, each compartment has independent functions.

l The small current power distribution center (MCC) cubicle is divided into three (03) compartments: horizontal bus compartment in the rear, the function unit compartment in front (left side) and cable compartment (right side). The flame retardant polydiphenyl ether plastic housing is used between the horizontal bus compartment and function unit compartment. The cable compartment, horizontal bus compartment and function unit compartment are separated by steel plate.

l Safety the application of high-strength flame-retarded engineering plastics has reinforced the protection safety performance.

l Standard modular design: it forms the standard units such as protection, operation, transition, control, regulation, measurement and indication units.



2. Ambient condition

l Ambient air temperature ≤+40℃ and no less than -5℃, the average temperature within 24h ≤+35℃;

l For indoor use, the elevation of using site ≤ 2000m (above this can be negotiated)

l Ambient relative air humidity is no more than 50% at +40℃, the larger relative humidity is allowed in lower temperature. (e.g.: when the humidity is 90% at﹢20℃, you should consider about the effect of accidental condensation caused by temperature variation)


3. Technical parameters

No.

Description

Unit

Technical parameter

1

Rated working frequency

Hz

50-60

2

Rated working voltage

V

AC:380(660)

10/0.4

0.4

3

Rated insulation voltage

V

660

2000

4

Rated working current

Horizontal bus

A

≤6000

16-65

Vertical bus

A

1000

5

Rated short-time withstand current (effective value)

Horizontal bus

KA

100 (effective value)/1S

Vertical bus

KA

50 (effective value)/1S

6

Rated peak withstand current (max. current)

Horizontal bus

KA

250

Vertical bus

KA

176

7

Main circuit connector

A

200, 400, 800

8

Auxiliary circuit connector

A

25

9

Power frequency withstand voltage

Main circuit

V/min

2500

Auxiliary circuit

V/min

2000

10

Protection grade


IP30

IP23

IP30

4. Size specification

No.

Description

Rated current

Power inlet/  outlet method

Function configuration

Dimension of cubicle (mm)

Drawer depth

(mm)

Module of drawer

(mm)

1

Smart CB

630A

Inlet from top/

bottom outlet

power/coupler

800*800*2200

1200

6*200

2

Smart CB

800A

Inlet from top/

bottom outlet

power/coupler

800*800*2200

1200

6*200

3

Smart CB

1250A

Inlet from top/

bottom outlet

power/coupler

800*800*2200

1200

6*200

4

Smart CB

1600A

Inlet from top/

bottom outlet

power/coupler

800*800*2200

1200

6*200

5

Smart CB

2000A

Inlet from top/

bottom outlet

power/coupler

800*800*2200

1200

6*200

6

Smart CB

2500A

Inlet from top/

bottom outlet

power/coupler

1000*800*2200

1200

6*200

7

Smart CB

3150A

Inlet from top/

bottom outlet

power/coupler

1000*800*2200

1200

6*200

8

Smart CB

4000A

Inlet from top/

bottom outlet

power/coupler

1000*800*2200

1200

6*200

9

Smart CB

4000A

Inlet from top/

bottom outlet

power/coupler

1000*800*2200

1200

6*200

10

Smart CB

5000A

Inlet from top/

bottom outlet

power/coupler

1000*800*2200

1200

6*200

11

Smart CB

6300A

Inlet from top/

bottom outlet

power/coupler

1000*800*2200

1200

6*200

12

Smart CB

630A

Inlet from top/

bottom outlet

Dual power switching

800*800*2200

1200

6*200

13

Smart CB

800A

Inlet from top/

bottom outlet

Dual power switching

800*800*2200

1200

6*200

14

Smart CB

1250A

Inlet from top/

bottom outlet

Dual power switching

800*800*2200

1200

6*200

15

Smart CB

1600A

Inlet from top/

bottom outlet

Dual power switching

800*800*2200

1200

6*200

16

Smart CB

2000A

Inlet from top/

bottom outlet

Dual power switching

800*800*2200

1200

6*200

17

Smart CB

2500A

Inlet from top/

bottom outlet

Dual power switching

1000*800*2200

1200

6*200

18

Smart CB

3150A

Inlet from top/

bottom outlet

Dual power switching

1000*800*2200

1200

6*200

19

Smart CB

4000A

Inlet from top/

bottom outlet

Dual power switching

1000*800*2200

1200

6*200

20

Smart CB

5000A

Inlet from top/

bottom outlet

Dual power switching

1000*800*2200

1200

6*200

21

Smart CB

6300A

Inlet from top/

bottom outlet

Dual power switching

1000*800*2200

1200

6*200

22

MCCB

100-225

Left inlet/right outlet

Outgoing line

600*800*2200

200

1*200

23

MCCB

225-400

Left inlet/right outlet

Outgoing line

600*800*2200

400

2*200

24

MCCB

400-630

Left inlet/right outlet

Outgoing line

600*800*2200

400

2*200

25

MCCB

630-800

Left inlet/right outlet

Outgoing line

600*800*2200

600

3*200
