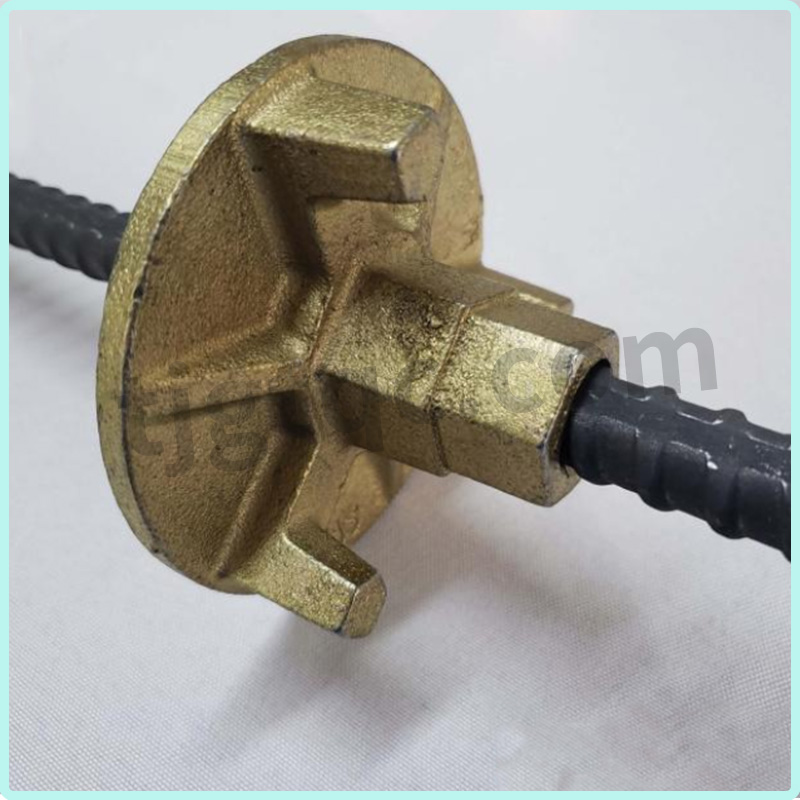

Tie Rod for Formwork in Grade 830/1030
Construction & Decoration Building Structural Material
MOQ:1 Ton(s)
Payment Method : L/C T/T Western Union Money Gram
Keywords:PT Bar Prestressing Steel Bar Metal Materials Construction Materials Civil Engineering
| Product Category: | Construction & Decoration > Building Structural Material | Trademark: | CP-Steel |
| Product Package: | in Bundle | Specifications: | 36mm |
| Place of Origin: | Tianjin | Port: | Tianjin |
FT bars are high-strength, high-precision, straight-line steel bars with external threads on the entire steel bar. The steel bar can be screwed onto the connector with internal threads at any section or screwed with a threaded nut with internal threads for anchoring. The utility model has the advantages of simple connection and anchorage, strong adhesion, safe and reliable tension and anchorage and the like, and is a novel material for developing prestressed concrete component.
FT Bars are currently used to anchor and support the dam body form of the dam foundation. In the cable-stayed bridge, fully threaded bars are used as the main ribs and bridge foundations of the main tower. The use of fully threaded steel bars saves steel, reduces component area and reduces component weight.
The continuous external thread is hot rolled. The shape of thread bar is shown as following figure. The main dimension ranges from ?15mm-?50mm and the grade ranges from 500/630Mpa to 1200/1330Mpa.
| Product Name | Tie Rod for Formwork in Grade 830/1030 |
| Yield Strength | 830Mpa |
| Tensile Strength | 1030Mpa |
| Elongation | 7 |
| Length | 12m or any length you need |
| Technique | Hot Rolled |
| Diameter available | 20mm, 25mm, 32mm, 36mm, 40mm |
| Accessories | Nuts, Couplers, Plates, Washer, Centralizer |
Grade 830/1030 | Norminal Dia. | Cross Section | Yield Strength | Tensile Strength | Yield Load | Ultimate Load | Elongation | Liner Weight |
(mm) | (Area) | ≥(Mpa) | ≥(Mpa) | (KN) | (KN) | (A/%) | (kg/m) | |
15 | 177 | 830 | 1030 | 147 | 182 | 7 | 1.47 | |
20 | 314 | 830 | 1030 | 261 | 323 | 7 | 2.47 | |
25 | 491 | 830 | 1030 | 408 | 506 | 7 | 4.1 | |
32 | 804 | 830 | 1030 | 667 | 828 | 7 | 6.65 | |
36 | 1018 | 830 | 1030 | 845 | 1049 | 7 | 8.41 | |
40 | 1257 | 830 | 1030 | 1043 | 1295 | 7 | 10.34 |
| Contact Name: | Miss Wendy Lee | Contact Email: | tj****c@tjgtqc.com |
| Contact Job Title: | Sales Manager | Contact Mob: | 176***091 |
| Contact Tel: | Contact Fax: | ||
| Address: | B10-1-2 Kexin Industrial Area, Beichen Distraict | Website: | http://www.tjgtqc.com |
Tianjin Cathay Pacific Steel Co., Ltd., which occupies a superior geographical position and convenient transportation. We are the largest agent of Tianjin Tiantie Zhaer Steel Production Co., Ltd., and have won the honor of Sales Champion for many years! Since the establishment of the company in 2008, our company has focused on Screw Threaded Steel products and related construction products. The products on the market are: FT Bar, its accessories: nuts, plates, couplers, spiral bars, PC strand wires and anchors, metal and plastic ducts, etc. Our company always regards product quality as the lifeline of the company, adheres to the rigorous, efficient and innovative concept to serve customers, and we are willing to cooperate with new and old customers at home and abroad to provide customers with better quality service and quality products.
