Air Conditioner Copper Insulation Tube
Household Appliances Air Conditioner, Purifier & Humidifier
MOQ:500 Set(s)
Payment Method : L/C T/T D/P
Keywords:Air Conditioning Parts? Insulated A/C Pipe A/C Connecting Double Tube Air Condition Connection Pipe
| Product Category: | Household Appliances > Air Conditioner, Purifier & Humidifier | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | SHANGHAI |

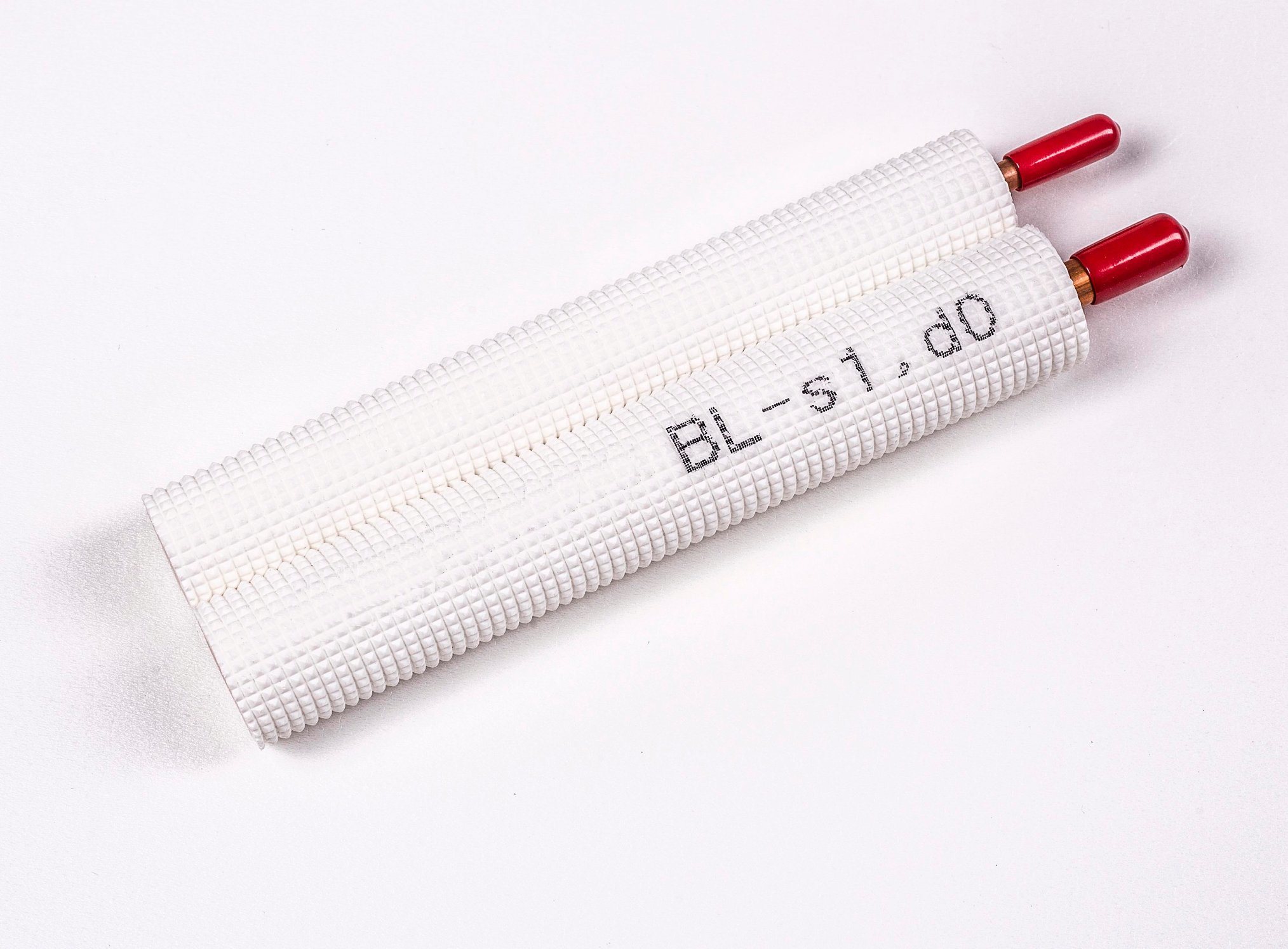

Air Conditioner Copper Aluminium insulated Connecting Pipe
We have copper and aluminum conjunction tube, and also have pure copper conjunction tube.
Air-conditioning pipe insulation(double pipe) Parameters
Note:
1. O. D of copper tube and thickness can order according to the demand of customer.
2. Heat preservation tube can adopt white complex and blank plastic tube.
3. Two ends of 3M-10M air condition coating copper tube can join copper cover.
4. Φ 12.7mm(1/2"), Φ 15.88mm(5/8"), Φ 19.05mm(3/4"), two end of 3M-8M copper tube can add exterior line ripple tube(no jointing)optional bend.
| specificaton | diameter of copper tube | diameter of insulation tube | wall thickness of insulation tube |
| 1/4" +3/8" | 6.35+9.52 | φ 8+φ 12 | 8mm+8mm |
| 1/4" +1/2" | 6.35+12.70 | φ 8+φ 14 | 8mm+8mm |
| 1/4" +5/8" | 6.35+15.88 | φ 8+φ 18 | 8mm+8mm |
| 3/8" +5/8" | 9.52+15.88 | φ 12+φ 18 | 8mm+8mm |
| 3/8" +3/4" | 9.52+19.05 | φ 12+φ 22 | 8mm+8mm |
| 1/2" +3/4" | 12.70+19.05 | φ 14+φ 22 | 8mm+8mm |
Air condtioner tube with nut
| MODEL | LENGTH |
| 1/4+1/2 | 3 7 5 10 |
| 1/4+3/8 | 3 7 5 10 |
| 1/4+5/8 | 3 7 5 10 |
| 3/8+5/8 | 3 7 5 10 |
