1/4"+1/2"Air Conditioner Copper Aluminum Pipe
Household Appliances Air Conditioner, Purifier & Humidifier
MOQ:500 Set(s)
Payment Method : L/C T/T D/P
Keywords:Air Conditioning Parts? Insulated A/C Pipe A/C Connecting Double Tube Air Condition Connection Pipe HVAC Tube
| Product Category: | Household Appliances > Air Conditioner, Purifier & Humidifier | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | SHANGHAI |

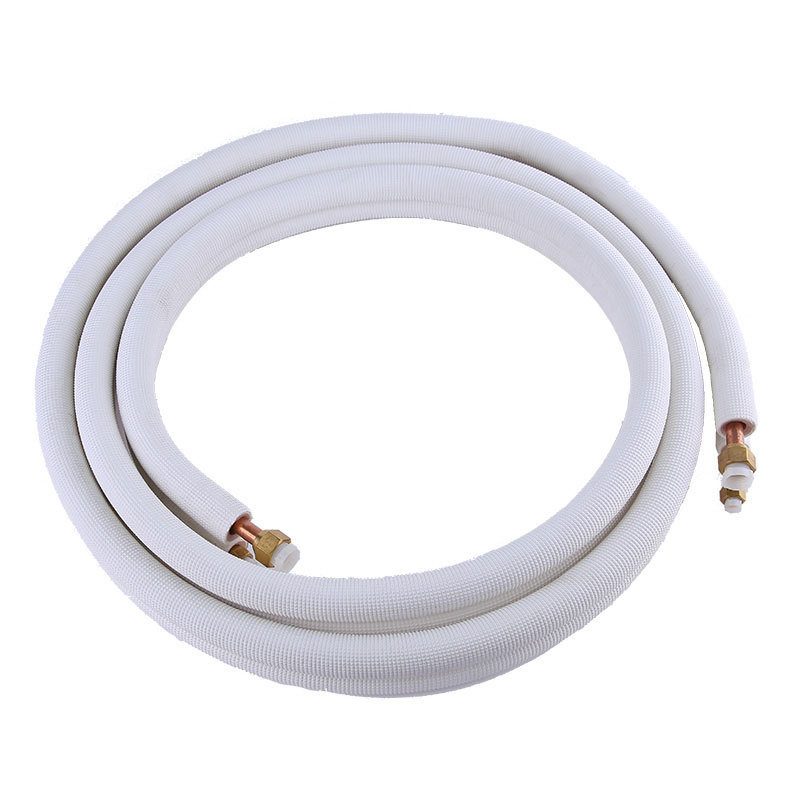

Split Air Conditioner Insulated Copper Tube for Connection (installation kit)
Insulated copper connection pipe for split air conditioners.
Lenght: 3meters to 30meters
Diameter: Wide range available for selection
ITEM: INSULATED CONNECTION COPPER TUBE
(Specification: 1/4"+1/2", 4m covered by double layers insulation tube)
Accessories in the middle including: One set wall- through bushing, a 2m drain-pipe, a 18m bind
Tape, a bag of mastic sealant.
ITEM: INSULATED CONNECTION COPPER TUBE
(Specification: 1/4"+5/8", 5.5m covered by double layers insulation tube)
Accessories in the middle including: Power lines, one set wall- through bushing, a 2m drain-pipe,
A 18m bind tape, a bag of mastic sealant.
Note: Length, outer diameter and wall thickness of copper pipe can
Be provided all kinds of specification according to customers.
Air Conditioner Connecting Tube
Spec.(inch)Metal tube outer dia.*wall thickness(mm)Insilating thickness(mm)Length(m)Quantity per carton
| 1/4" | 6*0.7 | 7 | 2-15 | 5 |
| 3/8" | 9.52*0.7 | 7 | 2-15 | 5 |
| 5/8" | 15.88*0.9 | 7 | 2-15 | 5 |
| 3/4" | 19.05*1.2 | 7 | 2-15 | 5 |
Testings on Air Conditioner Insulated Copper Tube
Items | Test method | Result |
| Airtightness property | 4.0MPA, 5 min | No leak |
| Presure resistance | 12MPA, 1 min | No crackle |
| Bendability | Diameter 180 deg | No pleat and crackle |
