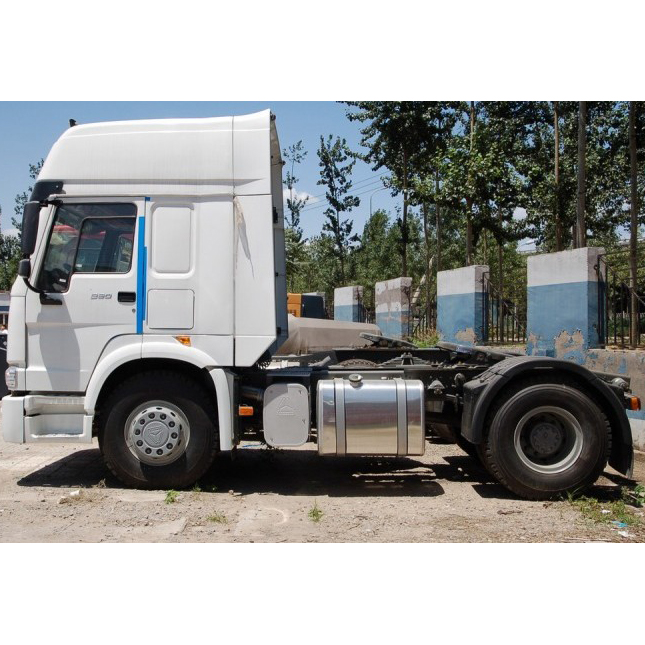

Engine

Engine model: WD615.47, Euro II   emission standard

4 stroke direct injection diesel   engine

6 cylinder in-line with water   cooling, turbo-charging & intercooling

Maximum output: 371hp(273Kw)at   2200 rpm according to DIN

Option: 336hp,290hp.

Maximum torque: 1460Nm at   1300~1600 rpm

Bore: 126mm;    Stroke: 130mm;

Displacement: 9.726L;

Compression ratio:17:1

Specific fuel consumption: 198g/kWh;  Engine oil filling quantity: 19L

Cooling system filling quantity   (long-term filling): 40L

Thermostat opening temperature:   71^oC

Single cylinder air compressor

Rigid fan

Clutch

430mm diaphragm spring clutch,   hydraulic control with air assistance.

WD615.62、WD615.87 engine standard is 430C model

Transmission

SINOTRUK HW series,10 gears   transmission, transmission with main and auxiliary transmission structure.   Main transmission with double counter shaft, auxiliary transmission with   planetary reduction, with PTO.

Ratio:14.284,10.623,7.871,5.876,4.3753.265,2.428,1.799,1.343,1;   13.813(R),3,18(R)

Propeller Shaft

Double universal joint propeller   shaft with gear-shaped coupling flange

Front Axle

HF7, 7 ton. Steering with double   T-cross section. Disc Brake.

Option: drum brake.

Rear Axles

ST16,16ton. Double Reduction(central   reduction+wheel reduction).Differential locks between wheels and axles

Ratio: 5.45 option:4.77

Option: HC16,   ration4.42, 4.8,5.73

Chassis

Frame: U-profile parallel ladder   frame with section of 300×80×8mm   and reinforced subframe, all riveted cross members

Front suspension: 9   semi-elliptic leaf springs with hydraulic telescopic double-action shock   absorbers and stabilizer

Rear suspension: 12   semi-elliptic leaf springs with hydraulic telescopic double-action shock   absorbers

Fuel tank: with one 400 L capacity with locking fuel cap.

Fifth wheel size: 2 inch

Option:3.5 inch

Steering

ZF8118 (Left hand drive) ,   hydraulic steering with power assistance.

Ratio: 26.2:1

Option: Right Hand   Drive

Brakes

Service brake: dual circuit   compressed air brake

Parking Brake: (emergency   brake): spring storage energy without air.

Auxiliary brake: Engine exhausts   braking.

Auxiliary brake: engine exhaust   brake

With ABS

Wheel & Types

Rims: 8.5-20,10 hole-steel

Types: 295/80R22.5

Option: 12R20 tube   etc.

Driver’s cab

Long cab with one berth, with   One all steel forward control, 55^o hydraulic tilting to the front,   2-arm windscreen wiper system with 3 speeds, laminate windscreen, with   casted-in radio aerial, hydraulically damped adjustable driver’s seat and   rigid adjustable co-driver’s seat, heating & ventilation system,   adjustable roof flap, with stereo radio/cassette recorder, sun visor, single   bunk with 4-point support full floating suspension + shock absorbers with   transverse stabilizer.

Electrics

Operating voltage:24V, negative   grounded;  Starter: 24V,7.5KW

Alternator: 3-phrase, 28V, 1500W;  Batteries: 2×12, 165Ah

Cigar-lighter, horn, headlamp,   fog light, brake lights, indicators and reverse lamp

Dimensions in mm

Wheel base

Front wheel track

Rear wheel track

Front overhang

Rear overhang

Approach angle(^o)

Departure angle(^o)

Overall Dimension

3500

2022

1850

1500

1110

16

42

6110×2496×2958

Weight in kg

Dead weight

Rated loading capacity at fifth   wheel

Gross vehicle weight

Gross combination weight

Front axle loading capacity

Rear axle loading capacity

7180

10690

18000

37100

7000

16000

Performance

Maximum driving speed(km/h)

Maximum gradeablility (%)

Minimum ground clearance(mm)

Minimum turning circle(m)

Fuel consumption(L/100km)

102

27

267

14

31
