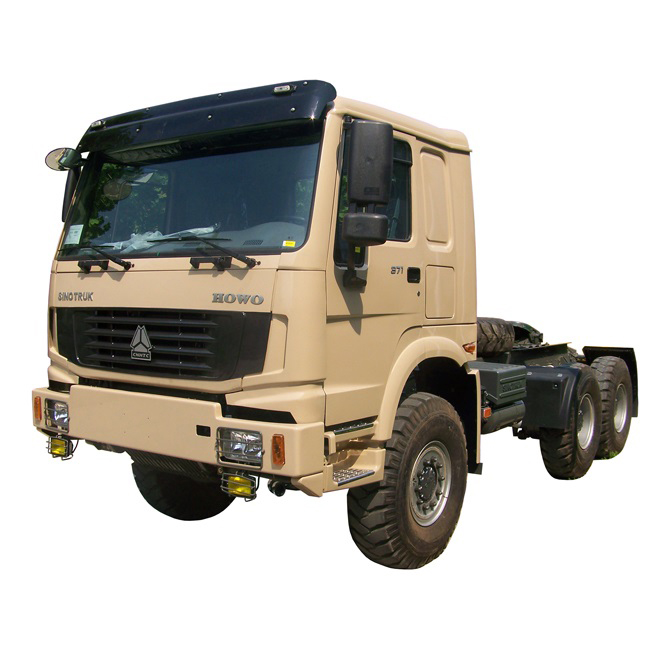

6x6 All Wheel Drive-Dump Head
Auto,Parts & Accessories Truck & Accessories
MOQ:1 Piece(s)
Payment Method : L/C T/T D/P Western Union Paypal Money Gram Others
Keywords:Dump Truck 6x6 All Wheel Drive 6x6 All Wheel Drive-Dump Head All Wheel Drive
| Product Category: | Auto,Parts & Accessories > Truck & Accessories | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | China | Port: | QINGDAO |
Truck Model | ZZ3257N3857A/NOWA | |
Dimension (mm) | 8238x2496x3110 | |
Gross Weight (kg) | 25000 | |
Total Weight (kg) | 12490 | |
Max. Speed (km/h) | 76 | |
Mass. Gradability (%) | 60 | |
Wheel Base (mm) | 3800 | |
Engine | Model | WD615.69(336HP) Option: 371hp |
Rated Engine Power | 249/1900 kw/r/min | |
Max. Torque | 1490/1200-1500N.M/R/Min | |
Clutch | φ430mm B-type diaphragm spring clutch | |
Gearbox | HW19710 | |
Drive Axle | Steel front steering drive axle with planetary wheel reduction. ST16 double drive axle, speed ratio5.73 | |
Steering | ZF8118 | |
Transmission | Model: 2000 | |
High-grade/low-grade ratio: 0.89/1.536 | ||
Brake Type | Service Braking; dual circuit compressed air brake, parking brake, spring energy air cut brake | |
Electric system | HOWO electric system, 24v negative grounded | |
Tyre | 12.00-20 | |
Fuel Tank | 400L | |
Carriage Dimension | 5200x2300x800 | |
Cab | HW76 Standard cab, with one berth, with AC, Left hand drive. | |
