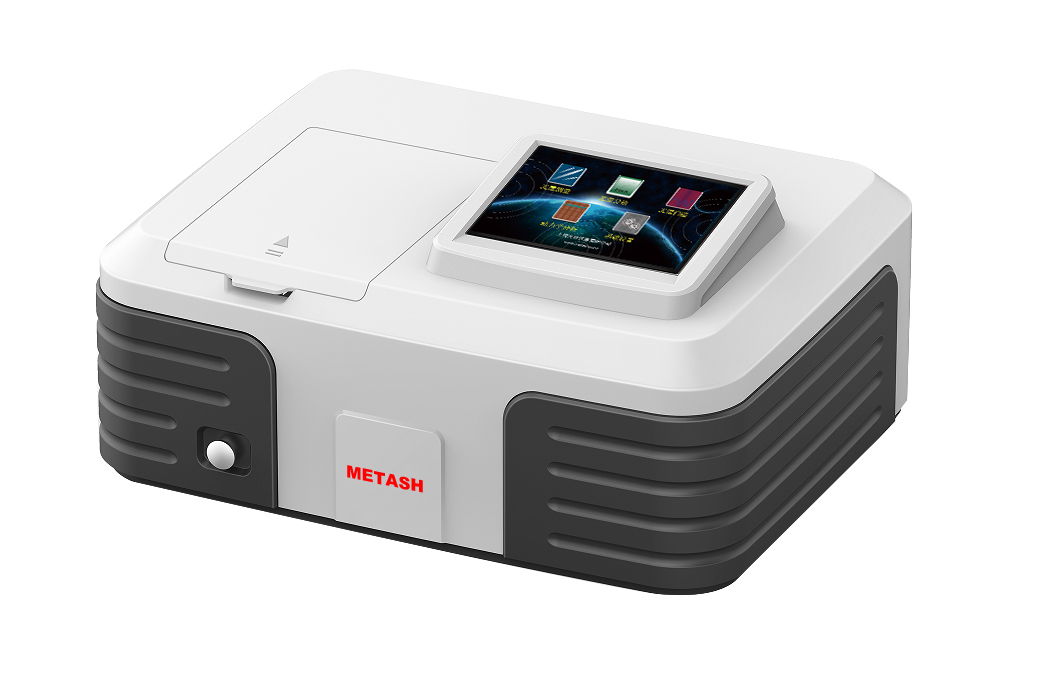

10-inch touch screen double beam UV-8000T series spectrophotometer

Tools,Hardware & Instruments Measuring Instruments

FOB Price:US$ 3,780.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : T/T

Keywords:touch screen double beam cheap price

Inquire


Add to Favorites

Product Category: Tools,Hardware & Instruments > Measuring Instruments Trademark: Metash
Product Package: Specifications:
Place of Origin: Shanghai, China Port: Shanghai


[Features]






◆ Adopt dual beam optical system with precision vertical-type dual optical path and dual detector.


◆ Imported grating of high performance greatly reduced the stray light and improved the stability and reliability of device.

◆ 10 inches large touch screen, built-in 32G memory, support Bluetooth connection network.

◆ Three operation modes are available: Host, Computer and Mobile phone (App).

◆ Powerful data analysis system with internal computer host could realize multi functions independently. Like establishing calibration curve, photometric measurement, quantitative measurement, spectral scanning, dynamics, DNA/Protein test, multi-wavelength analysis and data printing.

◆ Optical system adopts suspension design. All optical parts are independently fixed on the 8mm thick aluminum deformation-free base to avoid the impact of bottom plate deformation and outside vibration on optical system, which greatly improved the stability and reliability of the instrument.

◆ Convenient data storage and printing function. UV-8000T can be directly connected to the printer for A4 format data and graph printing.

◆ Automatic power on self test and system positioning function could inspect and calibrate the deviation before every use.

◆ All test data and analysis report can be exported to USB disk directly.

◆ PC software is in compliance with 21CFR PART 11 requirements.

◆ Graphs support 3D display.










[Technical Specification]




 Model

UV-8000T

UV-8000TS

 Wavelength Range

190-1100nm

 The spectral bandwidth

1.8 nm

0.5, 1.0 2.0, 4.0nm

Wavelength Accuracy

±0.1nm(D2 656.1nm),±0.3 nm full range

 Stray light

0.03%  T @ 220 nm, 360 nm

Wavelength Repeatability

≤0.1nm

Photometric Accuracy

士0.2T(0-1009%T)

±0.002Abs(0-0.5Abs)

±0.004Abs(0.5-1.0Abs）

Photometric Repeatability

≤0.1%T(0-100%T)

0.001Abs(0-0.5Abs)

0.002Abs(0.5-1.0Abs)

Stability

士0.0004A/h@500nm

Photometric Range

0-200%T, -0.3-3.0A, 0-9999C

Baseline flatness

士0.001A

Noise

士0.0004A

Display

800*480 touch screen

Data Output Port

USB

Print Port

USB Port

Light source

Tungsten Lamp & Deuterium Lamp

Power Requirements

AC 220V/50Hz or AC 110v/60Hz

Detector

Silicon Photodiode

Dimension

630*430*210nm

Weight

28KG



[Standard Accessories]


Item

Description

Quantity

Unit

1

Spectrophotometer

1

set

2

1cm Glass cuvette

4

pcs

3

Power cord

1

pcs

4

User’s Manual

1

pcs

5

1 cm quartz cuvette

2

pcs

6

Dust Cover

1

pcs
