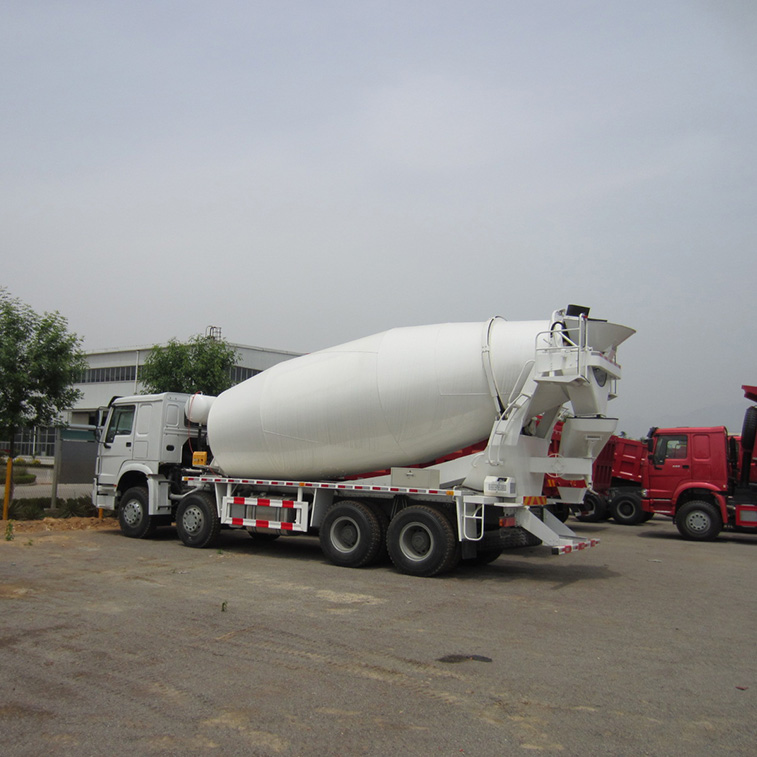

8x4 HOWO Concrete Mixer Truck
Auto,Parts & Accessories Truck & Accessories
MOQ:1 Piece(s)
Payment Method : L/C T/T D/P Western Union Paypal Money Gram Others
Keywords:Mixer Truck Concrete Mixer Truck HOWO Concrete Mixer Truck 8x4 HOWO Concrete Mixer Truck
| Product Category: | Auto,Parts & Accessories > Truck & Accessories | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | China | Port: | QINGDAO |
Concrete Mixer: 16M3 | |||||||
Cabin | Driving type | 8×4 | |||||
HOWO Standard cab | |||||||
Vehicle main Dimensions | Overall dimensions (L×W×H)mm | 11210×2496×3850 | |||||
Wheel base (mm) | 3667x1800x1350 | ||||||
Wheel track (front/rear) (mm) | 2041/1850 | ||||||
Approach/Departure angle(°) | 16/18/35 | ||||||
Weight in KGS | Tare Weight | 10660 | |||||
Loading Capacity | 16370 | ||||||
Front axles loading capacity | 9000kg | ||||||
Rear axles loading capacity | 2×16000 kg | ||||||
Max.driving speed (km/h) | 90 | ||||||
Engine | Brand | SINOTRUK | |||||
Type | 4-stroke direct injection,6-cylinder in-line with water cooking, turbo-charging and inter-cooking | ||||||
Displacement (L) | 9.726 | ||||||
Horse Power (HP)/(KPM) | 336hp | ||||||
Max.Torque/(KMP) | 1160Nm/1100-1600RPM | ||||||
Emission standard | Euro II | ||||||
Gearbox | HW19710, 10 forward, 2 reverse | ||||||
Clutch | Reinforced diaphragm clutch, diameter 420mm | ||||||
Steering Gear | ZF power steering, model ZF8118, hydraulic steering with power assistance | ||||||
Fuel tank (L) | 300 | ||||||
Tire | 12.00R20,Optional 12.00-20,12R22.5 etc | ||||||
Mixer Body | |||||||
Volume | M3 | 16 | |||||
Body Thickness | mm | 6 | High tensile strength steel | ||||
Gear box | Italy made imported | BONFILTOLT | |||||
Motor | Italy made imported | BONFILTOLT | |||||
Pump | Italy made imported | ||||||
