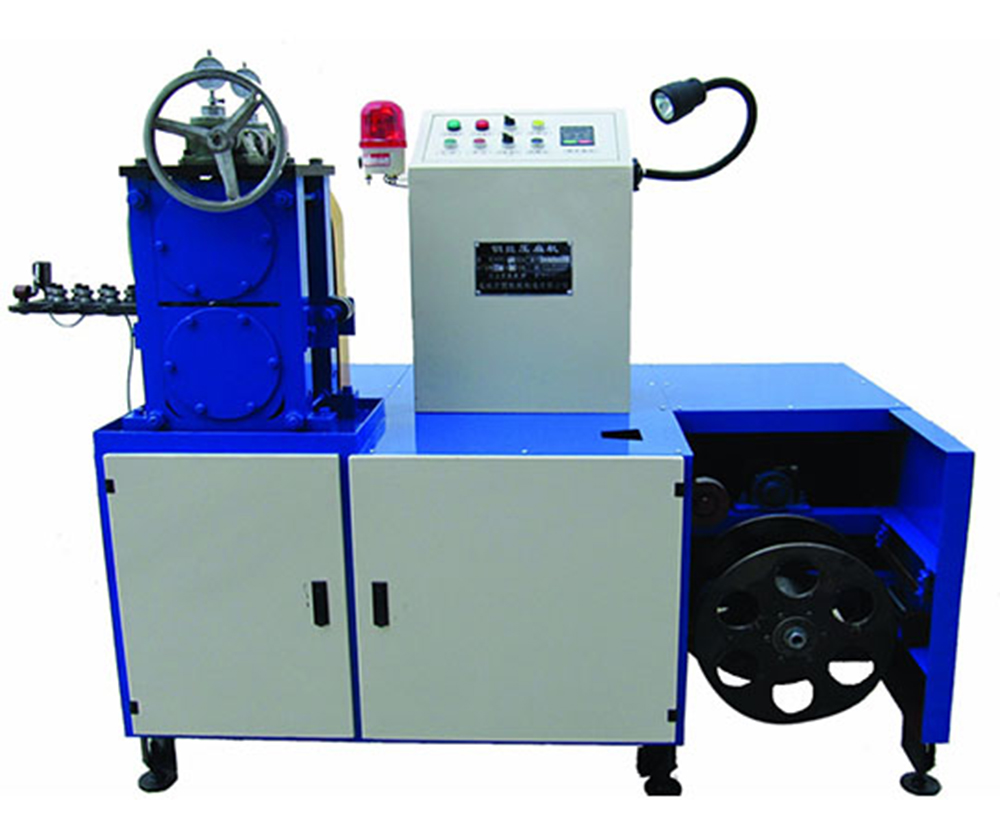

Steel Wire Flattening Machine

Manufacturing & Processing Machinery Packaging & Printing Machine

EXW Price:US$ 10,500.00 / Set(s)

MOQ:1 Set(s)

Payment Method : L/C T/T D/P

Keywords:steel wire flattening flattening machine steel wire conditioner

Inquire


Add to Favorites

Product Category: Manufacturing & Processing Machinery > Packaging & Printing Machine Trademark: WANGUO
Product Package: Specifications: 1800x9000x16500mm
Place of Origin: China Port: Shanghai/Tianjin

After-sales Service Provided : Engineers available to service machinery overseas
Condition : New
Voltage : three phase four wire (380 + n)
Model Number : HWG-3type
Application : automatic control of inverter operation
Driven Type : Other
Dimension(L*W*H) : 1800x9000x16500mm
Weight : 850kg
Brand Name : WANGUO
Automatic Grade : Automatic

1. Overview:
Auto and continuous pressing of φ 0.5mm-3mm metal round wires into flat wires of various specifications required for production is used for the previous process equipment of optical fiber armored tube.
2. Equipment specification and function:
Roller specification: φ 220mm; material: Cr12MoV, common roller hrc60-62
 YG15 hard alloy hrc90-93;
Speed 5-80 M / min;
Voltage: three phase four wire (380 + n) frequency: 0-50Hz; power: 4-5.5kw
Overall dimension: 1800x9000x16500mm; weight: 850kg
Function: automatic control of inverter operation, high efficiency, convenient use and maintenance, low noise.
