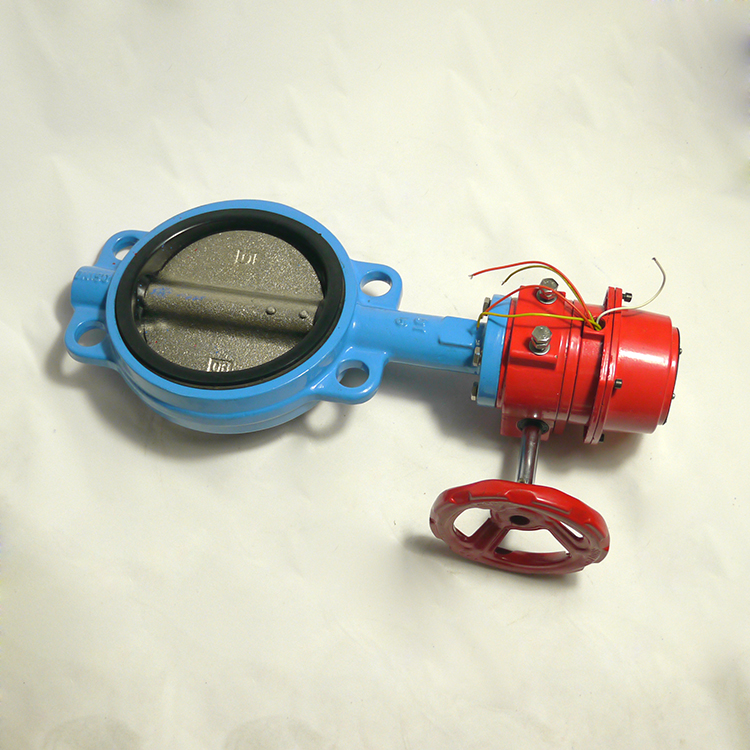

double flanged gear operated cast iron cl butterfly valve
Manufacturing & Processing Machinery Valves & Pumps & Compressors
MOQ:1 Piece(s)
Payment Method : T/T
Keywords:butterfly valve Butterfly Valves rubber seat butterfly valve
| Product Category: | Manufacturing & Processing Machinery > Valves & Pumps & Compressors | Trademark: | |
| Product Package: | Carton box | Specifications: | |
| Place of Origin: | Port: | Tianjin |
standards:
Design standard: API 609, BS EN 593.
Face-to-Face dimension: API 609,DIN 3202 K1,ISO 5752,,BS 5155,MSS SP-67.
Flange Drilling: ANSI B 16.1,BS4505,DIN PN 10/PN16 .
Test: API 598.
Pressure & Temperature ratings:
Working Pressure | PN10, PN16, PN25 |
Testing Pressure | Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. |
Working Temperature | -10°C to 80°C (NBR) -10°C to 120°C (EPDM) |
Suitable Media | Water, Oil and gas. |
Materials:
Parts | Materials |
Body | Cast iron, ductile iron, carbon steel, stainless steel |
Disc | Nickel ductile iron / Al bronze / Stainless steel |
Seat | EPDM / NBR / VITON / PTFE |
Stem | Stainless steel / Carbon steel |
Bushing | PTFE |
“O” ring | PTFE |
Worm gearbox | Cast iron / Ductile iron |
Application:
This kind of butterfly valve is widely utilized in foodstuff, pharmacy, chemical industry etc. and industrial environmental protection, water treatment, high building, water supply and drain tubing line open or close or adjusting medium.
| Contact Name: | Miss Daisy Bai | Contact Email: | da****y@aiwovalve.com |
| Contact Job Title: | Supplier | Contact Mob: | 177***508 |
| Contact Tel: | Contact Fax: | ||
| Address: | Xiaohuangzhuang District Tianjin city China | Website: | www.aiwovalve.cn |
Tianjin AIWO Valve Co., Ltd. is professional valves manufacturer located in Tianjin China, specialized on butterfly valves, gate valves, check valves, ball valves, globe valves, strainers, expansion joints, etc. we are also a professional exporter with 10+ years of experience. we focused on R&D and aim to provide best services to valuable customers. Our plant has fulled equipped with manufacturing processing and testing equipments, strong technical force and over 30 employees including skilled assembly-line workers and experienced technical staffs in valve field. Now our company has passed the ISO9001: 2008 quality management system certification and get CE certification. Our products are widely used in petroleum, chemical, urban water supply and drainage, paper, electronics, shipbuilding, medicine, construction, food and other industries. Tianjin AIWO Valve Co., Ltd enjoys a good fame in wide
customers by virtue of its good product quality and perfect service system. Now our products sell well in Europe and America, Southeast Asia, the
Middle East, Australia, North Africa, and many countries and regions.
