Voltage : three-phase four wire (380 + n)
Model Number : HWG-5type
After-sales Service Provided : Engineers available to service machinery overseas
Application : CNC system controls the movement
Power : 3.5kw
Driven Type : Other
Dimension(L*W*H) : 3800x850x1800mm
Weight : 1350kg
Brand Name : WANGUO
Automatic Grade : Automatic
Condition : New

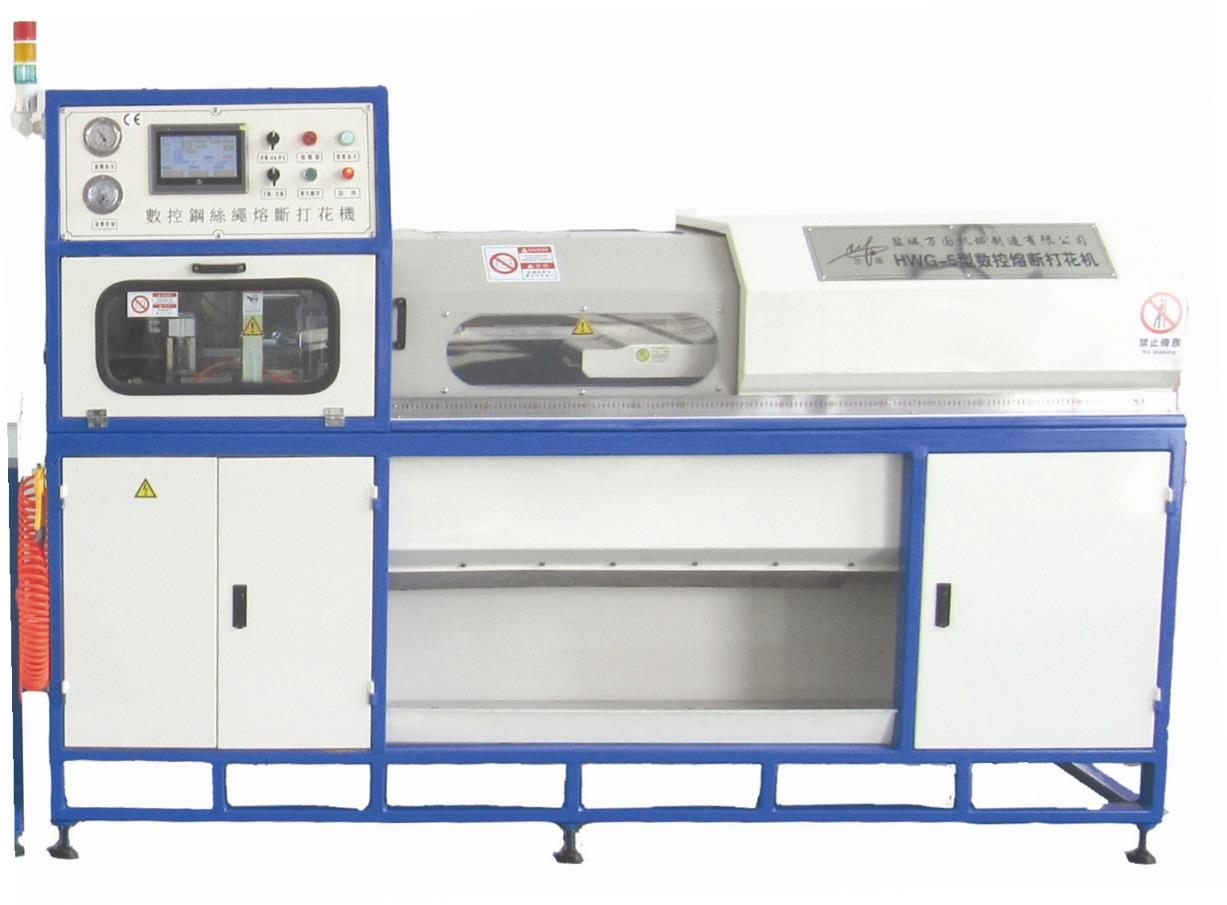

1. Overview:
It is suitable for cutting, peeling and patterning of plastic coated steel wire rope with fixed length, precise length and stable patterning size.
2. Equipment specifications and functions:
Processing specification: φ1.0-2.5mm, length 200mm-2500mm; length can be customized
Beat: 1 out of 4. 7-9s /second;
Voltage: three-phase four wire (380 + n) power: 3.5kw
Overall dimension: 3800x850x1800mm; weight: 1350kg
Function: CNC system controls the movement of the whole machine, the length can be set at will, the six working modes can be switched at will, and the peeling length and the size of flower can be adjusted;
(customizable)
