Dl-410 Cold Room Evaporative Air Cooler with 3% Discounts for Large Quantity Exporting
Household Appliances Air Conditioner, Purifier & Humidifier
MOQ:10 Piece(s)
Payment Method : L/C T/T D/P Western Union Paypal
Keywords:air cooler Industrial Air Cooler COLD ROOM AIR COOLER
| Product Category: | Household Appliances > Air Conditioner, Purifier & Humidifier | Trademark: | RETEK |
| Product Package: | CARTON/WOODEN CASE | Specifications: | 1HP/2HP/3HP/4HP/5HP |
| Place of Origin: | CHINA | Port: | SHANGHAI |

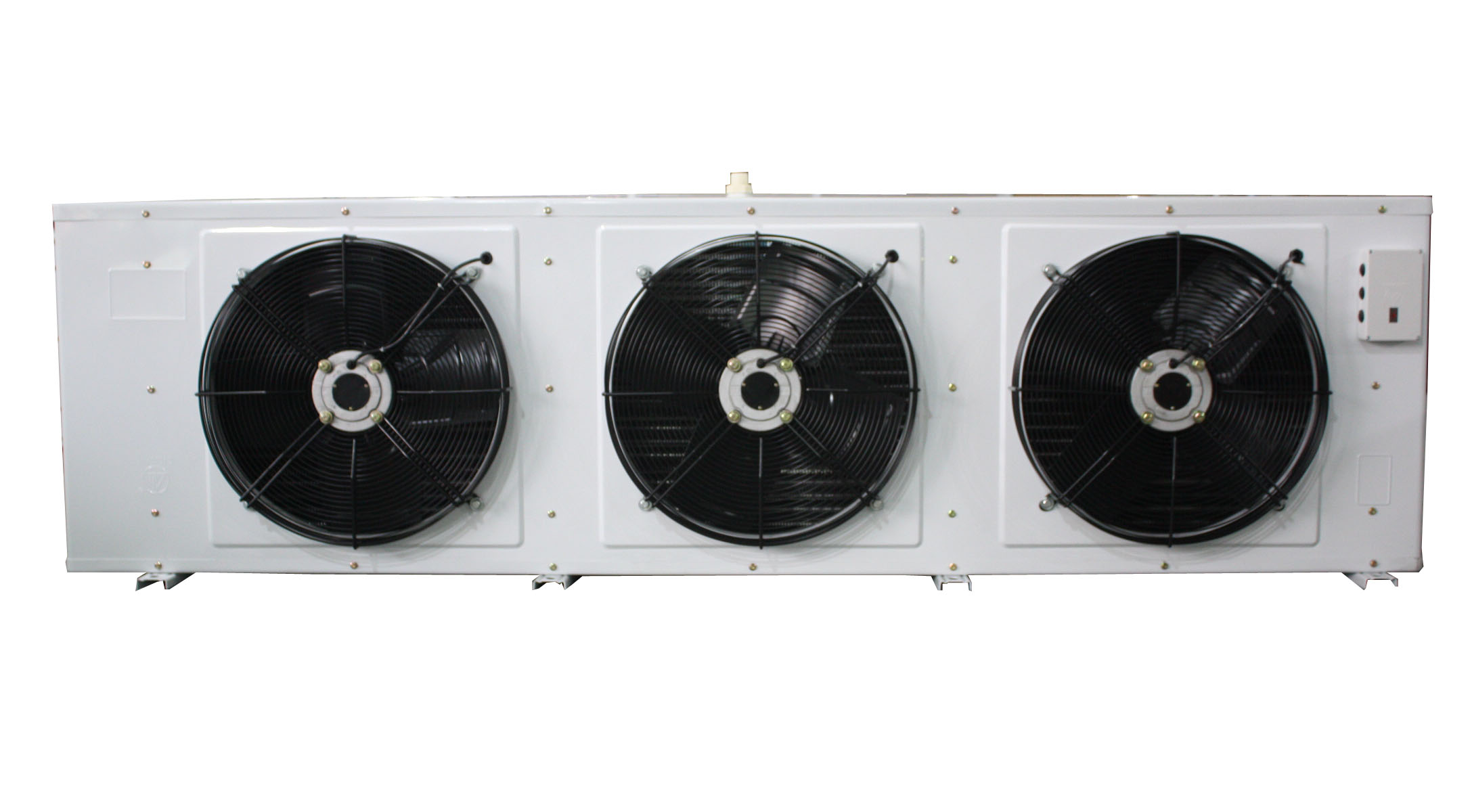

Copper condenser/copper tube fin type condenser/hvac condenser coil/Cold Room Air Cooler
Copper condenser material: Copper tube and aluminium fin
cold room air cooler apply as the following:
cold room air cooler is common refrigeration parts, it mainly has exchange heat in the refrageration system, mainly used in refrigerator, freezer, ice maker, air conditioner
We also can according to your drawing to produce copper condenser
If you have any request. Please do not hesitate to contact me at any time,
,Steel panel Cold Room Evaporator ,Aluminium Panel Cold Room Evaporator
welcome to visit our factory
We also could supply cold room parts cold room evaporators, Cold room air cooled condenser, Compressors ,Cold room panle, Cold room door, Cold room door hinge,Cold room ventilator fan ,Cold room lights, Cold rool Control box !
| MODEL | CAPACITY | EXCHANG AREA | INLET | OUTLET | TOTAL TUBE | FAN | DEFROST HEATER | OVERALL DIMESSON(MM) | ||||||||
| (KW) | () | ID(mm) | ID(mm) | L(m) | V(m3) | No. | Input(w) | Dia(mm) | Air flow(m3/h) | Voltage(V) | Coil | Rr | Length(mm) | Width(mm) | Height(mm) | |
| DL-10 | 1.92 | 10 | 12 | 16 | 10 | 1.8 | 1 | 90 | 330 | 1700 | 220 | 1 | 0.5 | 730 | 370 | 480 |
| DL-15 | 3.21 | 15 | 12 | 16 | 10 | 2.9 | 2 | 90 | 330 | 3400 | 220 | 1.8 | 0.9 | 1110 | 370 | 480 |
| DL-20 | 4.28 | 20 | 12 | 22 | 10 | 3.9 | 2 | 90 | 330 | 3400 | 220 | 1.8 | 0.9 | 1110 | 370 | 480 |
| DL-25 | 5.46 | 25 | 12 | 22 | 10 | 5 | 3 | 90 | 330 | 5100 | 220 | 2.4 | 1.2 | 1560 | 370 | 480 |
| DL-40 | 8.02 | 40 | 16 | 28 | 12 | 8.3 | 2 | 250 | 400 | 6000 | 220 | 2 | 1.5 | 1385 | 450 | 530 |
| DL-55 | 10.56 | 55 | 16 | 28 | 12 | 11.1 | 2 | 250 | 400 | 6000 | 220 | 3 | 1.5 | 1760 | 450 | 530 |
| DL-80 | 16.3 | 80 | 16 | 35 | 17 | 16.5 | 2 | 550 | 500 | 12000 | 220 | 4.5 | 1.5 | 1920 | 540 | 700 |
| DL-105 | 22.38 | 105 | 16 | 35 | 17 | 22.7 | 2 | 550 | 500 | 12000 | 220 | 4.5 | 4.5 | 1920 | 610 | 650 |
| DL-125 | 27.42 | 125 | 22 | 42 | 17 | 26.3 | 3 | 550 | 500 | 18000 | 220 | 7.2 | 1.8 | 2420 | 610 | 650 |
| DL-160 | 33.71 | 160 | 22 | 42 | 17 | 33 | 3 | 550 | 500 | 18000 | 220 | 8 | 2 | 2720 | 610 | 650 |
| DL-185 | 40 | 185 | 22 | 42 | 17 | 38.5 | 4 | 550 | 500 | 24000 | 220 | 8.8 | 2.2 | 3120 | 610 | 650 |
| DL-210 | 44.96 | 210 | 28 | 54 | 17 | 44 | 4 | 550 | 500 | 24000 | 220 | 13 | 2.6 | 3520 | 610 | 650 |
| DL-260 | 52.92 | 260 | 28 | 54 | 17 | 52 | 4 | 550 | 500 | 24000 | 220 | 15.6 | 2.6 | 3520 | 610 | 700 |
| DL-330 | 67.25 | 330 | 28 | 54 | 17 | 66.2 | 4 | 550 | 500 | 24000 | 220 | 13.2 | 4.4 | 3120 | 700 | 800 |
| DL-410 | 83.43 | 410 | 28 | 54 | 17 | 82.3 | 5 | 550 | 500 | 30000 | 220 | 15.6 | 5.2 | 3520 | 700 | 800 |
