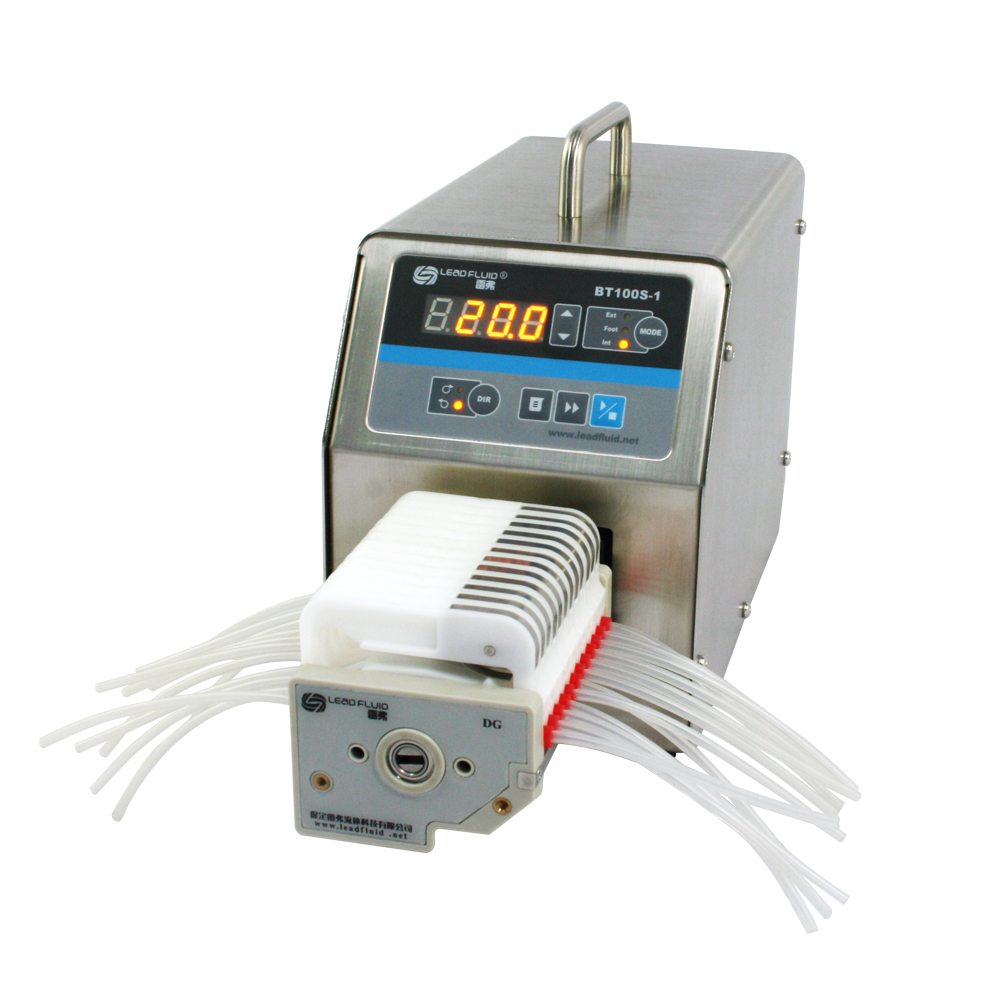

Lead Fluid BT100S-1 Viscous fluid with food grade silicone tubing peristaltic pump ce approval

Manufacturing & Processing Machinery Valves & Pumps & Compressors

FOB Price:US$ 705.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : T/T Western Union Paypal Others

Keywords:LEADFLUID peristaltic pump BT100S-1 varibale speed dispensing function external device Adjustable speed multichannel peristaltic pump silicone tubing ce approval

Inquire


Add to Favorites

Product Category: Manufacturing & Processing Machinery > Valves & Pumps & Compressors Trademark: LEADFLUID
Product Package: By cartons Specifications: 43*29*32
Place of Origin: China Port: tianjin,shanggai,qingdao

Description

BT100S-1 basic variable speed peristaltic pump provides flow range from 0.00011 to 1700 mL/min with variable pump heads and tubings. It has not only basic functions such as reversible direction, start/stop, full speed (for fast cleaning), adjustable speed, but also dispensing function to easily repeat liquid dispensing by time or volume. With RS485 MODBUS interface, the pump is easy to be controlled by external device, such as computer, human machine interface or PLC.

Functions and Features

  • Four digits LED indicator displays working speed.

  • LED indicator displays the internal control, external control, footswitch and other working mode.

  • Membrane keypad operation.

  • Reversible direction, start/stop, full speed. Running parameters stored automatically.

  • Easy dispensing function, repeats timing quantitative liquid dispensing.

  • When 0.1-100 rpm, speed resolution 0.1 rpm; when 100-150 rpm, speed resolution 1 rpm.

  • Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid, alkali, sodium and the organic solvents.

  • Can drive multi-channels and various types of pump heads.

  • The circuit board with conformal coating makes it dust-proof and moisture-proof.

  • Anti-interference feature, wide input voltage range for complex power environment.

  • External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; External analog adjusts the rotate speed.

  • RS485 MODBUS interface available.

Specifications

  • Flow range: 0.0001-1700 mL/min

  • Speed range: 0.1-150 rpm

  • Speed resolution (rpm): 0.1-100 rpm, 0.1 rpm resolution; 100-150 rpm, 1 rpm resolution

  • Speed accuracy: 0.5%

  • Power supply: AC100-240V,50Hz/60Hz

  • Power consumption: < 60W

  • External control: Input level 5V, 12V (standard), 24V (optional). External control analog 0-5V (standard); 0-10V, 4-20mA (optional)

  • Communication interface: RS485 communication interface, MODBUS protocol is available

  • Operating condition: Temperature 0-40°C; Relative humidity <80%

  • IP grade: IP31

  • Dimensions (L x W x H): 285 x 150 x 195 mm (11.2 x 5.9 x 7.7 inch)

  • Weight: 6.5 kg (14.3 lbs)

BT100S-1 Applicable Pump Heads and Tubings, Flow Parameters

Drive typePump headCh       Tubing size (mm)Flow rate per channel (mL/min)
BT100S-1DG6-8 (6rollers)8     Wall:0.8~1, ID:≤3.17                  0.0001-49
DG10-8 (10rollers)8     Wall:0.8~1, ID:≤3.17                  0.0001-41
DG6-12 (6rollers)12     Wall:0.8~1, ID:≤3.17                  0.0001-49
DG10-12 (10rollers)12     Wall:0.8~1, ID:≤3.17                  0.0001-41
DG6-16 (6rollers)16     Wall:0.8~1, ID:≤3.17                  0.0001-49
DG10-16 (10rollers)16     Wall:0.8~1, ID:≤3.17                  0.0001-41
DG6-24 (6rollers)24     Wall:0.8~1, ID:≤3.17                  0.0001-49
DG10-24 (10rollers)24     Wall:0.8~1, ID:≤3.17                  0.0001-41
DT10-888     13# 14#, Wall:0.8~1, ID:≤3.17                  0.0002-82
YZ151     13# 14# 16# 19# 25# 17#                  0.006-420
YZ251     15# 24#                  0.16-420
2 x YZ152     13# 14# 16# 19# 25# 17#                  0.006-420
2 x YZ252     15# 24#                  0.16-420
4 x YZ154     13# 14# 16# 19# 25# 17#                  0.006-420
4 x YZ254     15# 24#                  0.16-420
KZ251     15# 24# 35# 36#                  1-1700
2 x KZ252     15# 24# 35# 36#                  1-1700
DT15-444     19# 16# 25# 17#                  0.05-400
YT151     13# 14# 16# 19# 25# 17# 18#                 0.006-570
YT251     15# 24# 35# 36#                 0.006-720
2 x YT152     13# 14# 16# 19# 25# 17# 18#                 0.006-570
2 x YT252     15# 24# 35# 36#                 0.006-720
4 x YT154     13# 14# 16# 19# 25# 17# 18#                 0.006-570
4 x YT254     15# 24# 35# 36#                 0.006-720


Contact Name: Mrs Diana Lian Contact Email: ma****r@leadfluid.com
Contact Job Title: Commercial Manager Contact Mob: 156***761
Contact Tel: 86-3123250877 Contact Fax: 86-3123250877-804
Address: no999 easy of fuxing road Website: www.leadfluid.com

Lead Fluid Technology Co., Ltd. is a high tech company founded in October 1999, and mainly engaged in R&D, production and the sale of peristaltic pump, syringe pump, gear pump and related precise fluid transfer devices. We perform all types of intelligent flow control system design, customization and technical consulting. The products are widely used in agriculture, biotechnology, filtration, chemical industry, environmental protection, pharmaceutical industry, printing industry, water treatment and wastewater treatment as well as other fields.
