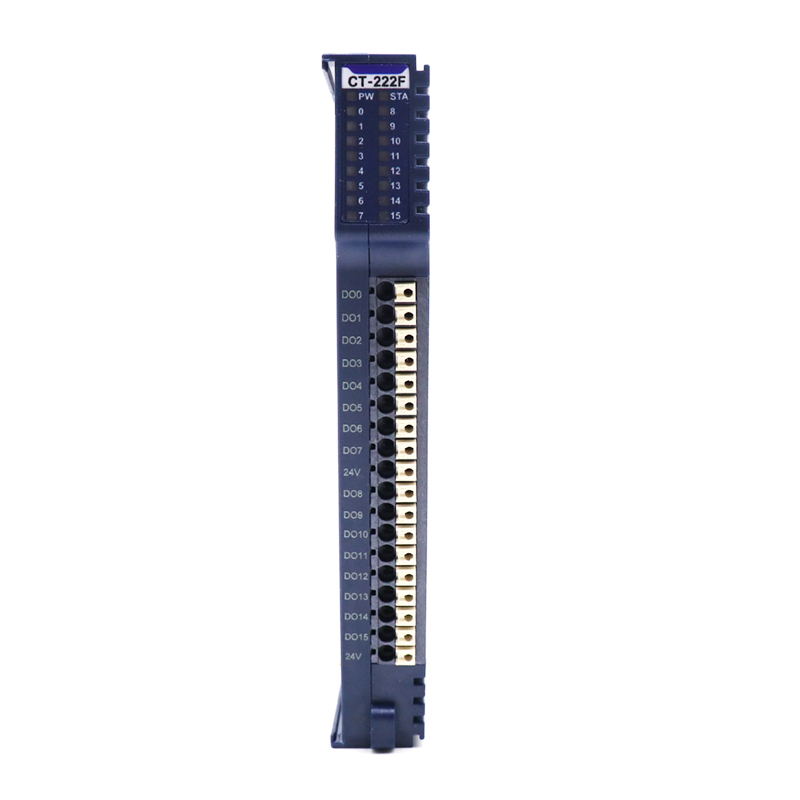

Odot Extended Io Module CT-222 F

Manufacturing & Processing Machinery General Industrial Equipment

FOB Price:US$ 126.92 / Piece(s)

MOQ:1 Piece(s)

Payment Method : T/T Western Union Paypal Others

Keywords:IO Module remote IO remote IO module

Add to Favorites

Product Category: Manufacturing & Processing Machinery > General Industrial Equipment Trademark: ODOT
Product Package: Cartons Specifications: 115*14*75mm
Place of Origin: mianyang Port: mianyang

CT-222F 16 channel digital output/24VDC/source
type
1 Module features
*the module supports 16 channels digital output, the output high level is valid,
the output voltage is 24VDC.
*module can drive field equipment. (relay, solenoid valve, etc.)
*the internal bus of the module and field output are using opto-coupler.
*the module has 16 digital output channel LED indicator light.
*the module has the functions of thermal shutdown and overcurrent protection.
*the module supports short circuit protection and overload protection.
2 Technical parameters
General Parameters
Power  Max.175mA@5.0Vdc
Isolation  I/O to internal bus: opto-couple isolation (3KVrms)
Field Power  Nominal:24Vdc, Range:22-28Vdc
Wiring  Max.1.5mm2 (AWG 16)
Mounting Type  35mm DIN-Rail
Size  115*14*75mm
Weight  65g
Environment Specification
Operational Temperature  -40~85oC
Operational Humidity  5%-95% (No Condensation)
Protection Class  IP20
Output parameters
Channel Number  16 channel source type output
LED Indicator  16 channel output LED indicator
Rated current  Typical value: 500mA
Leakage current  Max:10uA
Output impedance  <200mΩ
Output delay
OFF to ON: Max.100us
ON to OFF: Max.150us

Protection
Overtemperature shutdown: typical value is 135oC
Overcurrent protection: typical value 1.1A
Short circuit protection support
