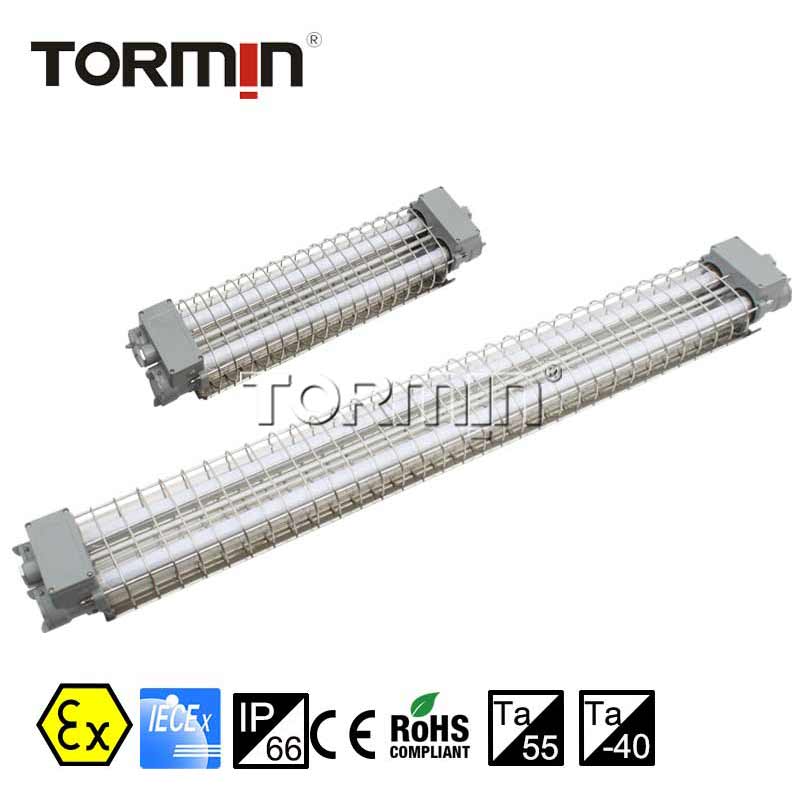

LED Explosion Proof Tube Light

Lights & Lighting Explosion-proof light

FOB Price:US$ Customizable price / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T Paypal

Keywords:led light LED Explosion-proof Lights industrial light

Add to Favorites

Product Category: Lights & Lighting > Explosion-proof light Trademark: TORMIN
Product Package: HONEYCOMB BOX Specifications:
Place of Origin: CHINA Port: NINGBO/SHANGHAI

Application

It can be widely used in petrochemical plants, oil platforms, oil pump housing, transit stations and other flammable and explosive places as fixed lighting.


Characteristics

1. It is made using a special aluminum housing, suitable for long-term highly corrosive environment of offshore platforms, chlor-alkali, hydrogen sulfide, etc.
2. Derrick mounting fixture adopt high anti-corrosive aluminum and locking angle equipment, can be safely used in drilling platforms and high vibration environment.
3. The shell adopts high-tech surface spraying technology, wear-resistant, and anti-corrosion, waterproof and dustproof, suitable for various harsh environments.
4. Bracket, reflector, guard, and all exposed fasteners adopt 304 stainless steel (customizable 316), can effectively guarantee the strength and strong anti-corrosion performance of lamp.
5. Terminals are provided at both ends, can be directly wired in parallel, eliminating the junction box and installation costs.
6. A variety of installation as optional: ceiling, oil derrick, the side walls, curved rods, boom, etc.


Technical Specification

Item

Technical specification

Rated power

2*20W(T8 led tube)

2*10W(T8 led tube)

Input voltage range

90~264VAC

Input frequency

50Hz/ 60Hz

Light source

LED

Light efficiency flux

3900lm

> 1800lm

CRI

>Ra 70

Service life

50,000h

CCT

5000K

Screw Thread

G3/4", NPT3/4", M25*1.5

Terminals

Multi-core wire:≤2.5mm2

Single-core wire:≤4mm2

Dimension

1390* 180* 110mm

780* 180* 110mm

Net weight

11 Kg

7.5Kg


Drawing of dimension (Dimensions in mm)


Contact Name: Mr Zongmeng Ying Contact Email: 32****7@qq.com
Contact Job Title: Sales Manager Contact Mob: 188***049
Contact Tel: 0086-577-56966366 Contact Fax: 0086-577-56966166
Address: No.35, Qingjiang Road, High-tech District, Wenzhou City, Zhejiang, China Website: https://tormin-lighting.com/

Zhejiang Tormin Electrical Co., Ltd (stock code: 839558), established in 2003, is a high-tech civilian enterprise that specializes in R & D, manufacturing and selling of industrial lamps. Tormin products are widely used in the fields of petroleum, chemical industry, electric power, mining, metallurgy, railway, fire protection, etc. Tormin, industrial lights are made to the highest world standard in the industry, gets the European ATEX explosion-proof certification, IECEx international explosion-proof certification; CE, ROHS, and other international certification, etc. international quality standard certification. Tormin passes ISO9001 quality control system, ISO14001 environment management system and OHSAS18001 Occupation Health Safety Management System. Tormin has a strong R & D and serious and pragmatic team. Adhere to the “dedicated, innovative and stable” business philosophy, through continuous innovation, with more than 10 years of market experience, always user-oriented, and constantly meet the needs of users as the core, through continuous improvement, products in the explosive gas, dust, corrosion, In harsh environments such as vibration, high temperature, and high humidity, they can work safely and reliably for a long time, and they have made many innovations in the use, maintenance, and intelligence of their products, making them more efficient and user-friendly. Tormin's products not only meet the basic lighting needs, but also attach more importance to light and environment, and the perfect integration of light and biology, providing safer and more reliable energy-saving and environmentally friendly products for the era of smart lighting.
