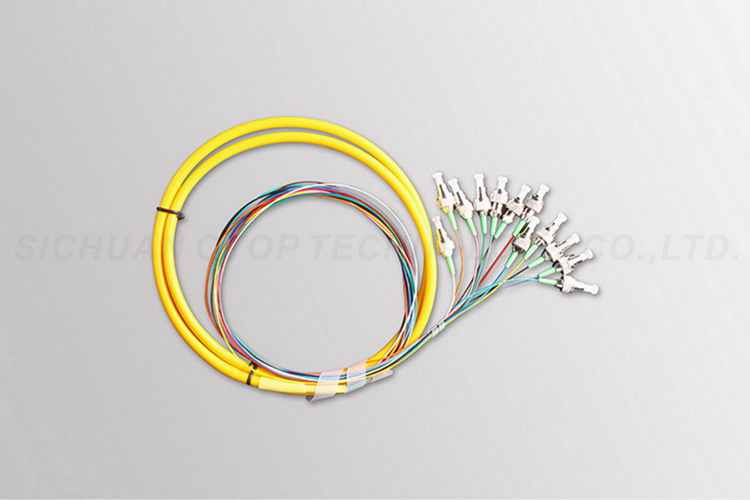

FC / APC Fiber Optic Pigtail Feature Connector with Ceramic Ferrules

Electronics and Communications communication device

FOB Price:US$ Customizable price / Piece(s)

MOQ:1 Piece(s)

Payment Method : T/T

Keywords:FC / APC pigtail fiber optic pigtail 12F fiber optic pigtail FTTH pigtail fiber optical pigtail fiber optic cable

Inquire


Add to Favorites

Product Category: Electronics and Communications > communication device Trademark:
Product Package: Carton Specifications: 12F
Place of Origin: China Port: Guanghzou, Shanghai

FC / APC Fiber Optic Pigtail Feature Connector with Ceramic Ferrules

Description
Product Name:Fiber Optic PigtailLength:1.5m Or Customized
Fiber Type:G652D/G657A1/G657A2 Etc.Certification:ISO9001
Type:9/125μmCable Color:Yellow
High Light:

sc sm pigtail

,

sc pc pigtail


FC / APC Fiber Optic Pigtail Feature Connector with Ceramic Ferrules




Simplex or duplex or multi fiber assemblies
Riser or Plenum rated, LSZH and RoHS cables available
Low insertion loss, IEC, TIA/EIA, Telcordia compliant
Custom fiber optic cable lengths and jacket colors
Various fiber types and wavelengths, typical 9/125 single mode, 50/125 multimode and 62.5/125 multimode
0.9 / 1.8 / 2.0 / 3.0 / mm outer diameter fiber optic cables
PC, UPC, and APC polish types
Good packing, competitive prices and very fast delivery
100% geometry test anc IEC cleaning test are available





? Features



- Price-Competitive

- Low Insertion Loss & PDL

- Factory-terminated and Tested

- Fiber Options: G652D /G657A/OM1/OM2/OM3 and PM Panda Fiber

- Connector Options: FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP

- Polishing Options: PC/UPC/APC

- Feature Connector with Ceramic Ferrules





? Applications



- CATV
- The connect between the cable and receiver
- Optical fiber communication system
- Equipment interupting, multimedian connect





? Specification



ParametersStandard Fiber Cable Assemblies
Fiber TypeSM(G.652/G.657A)MM(OM1/OM2/OM3/OM4/OM5)
Jacket MaterialsLSZH/OFNR/PVC
Connector TypeSC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000
Ferrule MaterialsCeramic
Testing Wavelengths1310±30/1550±30nm850±30/1300±30nm
Insertion Losss(dB)
TIA/EIA-455-107		≤ 0.25dB
(PC/UPC/APC)		≤ 0.3dB
(PC/UPC)
Return Loss(dB)
TIA/EIA-455-107		≥50dB(PC/UPC)
≥60dB(APC)		≥40dB(PC/UPC)
Exchangeability≤ 0.2dB
Cable AssembliesPigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)-10~ + 70
Storage Temperature (° C)-40 ~ +85
Package1unit/bag
*All values specified are with connectors.



Tag:

sc pc pigtail,



lc pc pigtail,



sc sm pigtail
