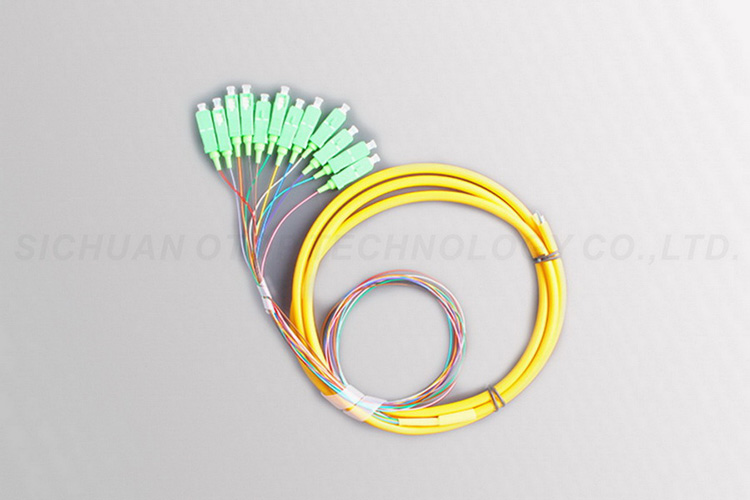

12 Color Sc Apc Pigtail SC / APC Bundle 0.9mm Cable Diameter ISO9001 Certification

Electronics and Communications communication device

FOB Price:US$ Customizable price / Piece(s)

MOQ:1 Piece(s)

Payment Method : T/T

Keywords:12 Color Sc Apc Pigtail， SC / APC Bundle 12F pigtail SC / APC pigtail 12 color fiber optic pigtail SM pigtail fiber optic pigtail

Inquire


Add to Favorites

Product Category: Electronics and Communications > communication device Trademark:
Product Package: Carton Specifications: 12 Color
Place of Origin: China Port: Guanghzou, Shanghai

12 Color Sc Apc Pigtail SC / APC Bundle 0.9mm Cable Diameter ISO9001 Certification

Description
Connector:SC/APC/UPC,SC/APC,SC/LC/FC/ST,FC ST LC SC/APCApplication:FTTH FTTB FTTX Network
Insertion Loss:≤0.25dBLength:1.5m Or Customized
Connector Type:SC / APCCertification:ISO9001
Color:ColorfulCable Diameter:0.9mm
High Light:

sc pc pigtail

,

lc pc pigtail


12 Color Sc Apc Pigtail SC / APC Bundle 0.9mm Cable Diameter ISO9001 Certification





? Features



- Price-Competitive

- Low Insertion Loss & PDL

- Factory-terminated and Tested

- Fiber Options: G652D /G657A/OM1/OM2/OM3 and PM Panda Fiber

- Connector Options: FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP

- Polishing Options: PC/UPC/APC

- Feature Connector with Ceramic Ferrules





? Applications



1. Optical fiber communication system

2. Optical fiber access networks

3. Optical fiber data communication

4. Optical fiber test equipment

5. FTTH FTTX applications

6. Optical Switch Interframe Connection

7. Asynchronous Transmission Mode ( ATM)

8. Premise installations





? Specification



ParametersStandard Fiber Cable Assemblies
Fiber TypeSM(G.652/G.657A)MM(OM1/OM2/OM3/OM4/OM5)
Jacket MaterialsLSZH/OFNR/PVC
Connector TypeSC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000
Ferrule MaterialsCeramic
Testing Wavelengths1310±30/1550±30nm850±30/1300±30nm
Insertion Losss(dB)
TIA/EIA-455-107		≤ 0.25dB
(PC/UPC/APC)		≤ 0.3dB
(PC/UPC)
Return Loss(dB)
TIA/EIA-455-107		≥50dB(PC/UPC)
≥60dB(APC)		≥40dB(PC/UPC)
Exchangeability≤ 0.2dB
Cable AssembliesPigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)-10~ + 70
Storage Temperature (° C)-40 ~ +85
Package1unit/bag
*All values specified are with connectors.
