12F LC Connectors MPO To LC Connector High Density Connections
Electronics and Communications communication device
MOQ:1 Piece(s)
Payment Method : T/T
Keywords:MPO patch cord OM4 LC patch cord fiber optic OM4 fiber optic patch cord
| Product Category: | Electronics and Communications > communication device | Trademark: | |
| Product Package: | Carton | Specifications: | MPO to LC |
| Place of Origin: | China | Port: | Guanghzou, Shanghai |

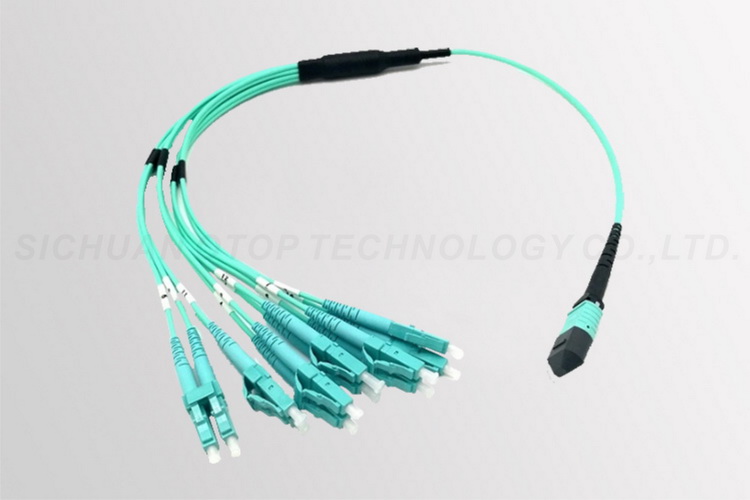

12F LC Connectors , MPO To LC Connector High Density Connections
Description| Operating Temperature: | -40℃ To +85℃ | Return Loss(dB): | 55/50(dB), ≥50, APC≥60 |
|---|---|---|---|
| Core: | Multicore | Cable: | 12 Strand |
| Connector: | MPO To LC | Ceramic Ferrule: | Upc (Flat Polish) |
| Polarity: | Straight (Key-up To Key-Down) | ||
| High Light: | mpo multi fiber push on,apc connector | ||
12F LC Connectors , MPO To LC Connector High Density Connections
? Introduction
1. Single 12-fiber Pull/Push Connector
2. Low Insertion Loss & PDL
3. Factory-terminated and Tested
4. Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber
5. The fiber optical patch cord can be customized according to customers'specific .
requirements (Customized Connector/Length/package...) .
6. Polishing Options: PC/UPC/APC
7. 100% NEW raw material and well quality control ensure the best life time .
8. Color coded housings available to differentiate fiber type, polish type and/or connector grade
Modular and snapping fit design, which offer great convenience to installers at the site for installations as well as future maintenances and services. With the universal system and MPO interface, it will provide trouble-free connection between fiber cable and equipments as well as ensure the channel has the best flexibility, compatibility and reliability.
- Space-saving 12 fibers in a single connector
- High density connections between network equipment in telecommunication rooms
- Easy installation and removal with push-pull latching
- Compact design for high fiber-count applications with space limitations
-. With 12-fiber and 24-fiber MPO/MTP connector standard
- Available in OS1/2, OM2, OM3 and OM4
- Available in FC,LC, SC, ST, MU, and MTP/MPO
- Interface polished type has PC, UPC and APC
- Available in 12 / 24 / 36 / 48 / 72 / 96 / 144-fibers
-100% factory tested
- Discrete connectors are heat-cured and use ceramic ferrules and sleeves
- Fan-out fibers from MPO/MTP connectors into individual simplex or duplex
- Customized for length, staggering, connector type, breakout type, fiber count, and labeling fiber
? Polarity
Type A - Straight (key-up to key-down): Straight-through polarity is typically for connecting patch panels. They are wired in a mirrored configuration, going from Pin 1 on one connector end to Pin 1 on the opposite end, etc.
Type B - Rollover (key-up to key-up): Rollover polarity is used primarily for connecting to switches and transceivers in 40Gb applications. In a 12-strand rollover polarity, the cable is wired from Pin 1 on one connector end to Pin 12 on the opposite end. Then 2 to 11, and so forth.
Type C - Flipped: Pair-Flipped polarity is the most commonly used polarity type for this cable, and typically used in cassette-to-cassette applications. Pin 1 on one end goes to Pin 2 on the opposite end, and 2 to 1, 3 to 4, 4 to 3, and so on. This is the default polarity option, but you can select your desired polarity from our drop-down menu above.
? Specification
| Parameter | Unit | Value | |||||||||||
| Connector | / | MTP/MPO | FC ST … SC LC | ||||||||||
| Ferrule | / | APC | UPC | PC | UPC | APC(Step) | APC(Conical) | ||||||
| Fiber Type | / | SM | MM | SM | MM | SM | MM | SM | MM | SM | MM | ||
| Insertion Loss | dB | <0.7 | <0.5 | <0.25 | <0.20 | <0.25 | <0.20 | <0.30 | / | <0.30 | / | ||
| Repeatability | Time | >500 | >1000 | ||||||||||
| Interchangeability | dB | / | <0.10 | ||||||||||
| Return Loss | dB | >36 | >20 | >45 | >36 | >50 | >36 | >60 | / | >60 | / | ||
