GYTA53 Outdoor Fiber Optical Cable Armored Buried Optical Cable

Electronics and Communications communication device

FOB Price:US$ 0.59 / Meter(s)

MOQ:2000 Meter(s)

Payment Method : L/C T/T D/P Western Union Paypal Money Gram

Keywords:Cable Fiber Optic Cable Duct Cable Communication Cable Network Cable Fiber Optic FTTH Optical Cable Optical Fiber Cable Fiber Cable

Add to Favorites

Product Category: Electronics and Communications > communication device Trademark: Hongan or customized
Product Package: Wooden Reel or Customized Specifications: 2km per roll or customized
Place of Origin: China Port: Qingdao
Product Description

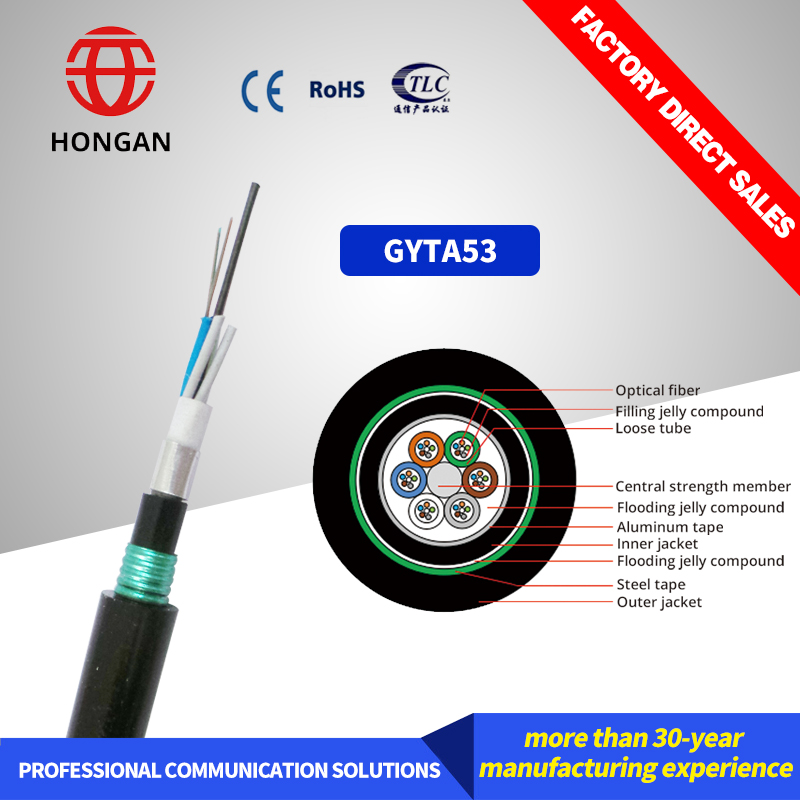

Outdoor direct burial GYTA53 double armored fiber optic cable

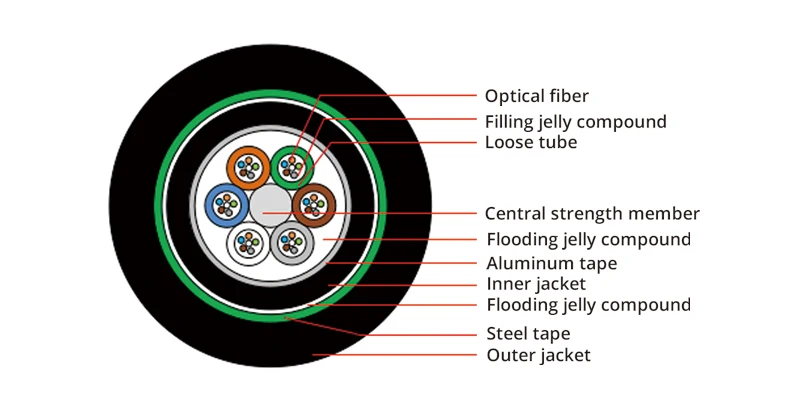

Fiber optic cable GYTA53, 2~288 fibers, central strength member (steel), jelly filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking jelly, copolymer coated aluminum tape, PE inner sheath, longitudinally covered by copolymer coated steel tape, PE outer sheath. G652D SM fiber.Detailed specification on your request.

Item

Parameters
Loose tube
Material
PBT

Color
All colors display

Material
PE
Filler
Color
Black
CSM
Material
Phosphating steel wire
Inner armoured
Material
Plastic coated aluminum strip
Inner jacket
Material
MDPE

Color
Black
Outer armoured
Material
Plastic coated steel strip
Outer jacket
Material
MDPE

Color
Black
Min. bending radius
Static
10 times cable diameter

Dynamic
20 times cable diameter
Repeating bending
Load:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage.
Tensile performance
Short term
3000N
Crush
Short term
3000N/100mm
Torsion
Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage.
Impact
Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage.
Packing & Delivery

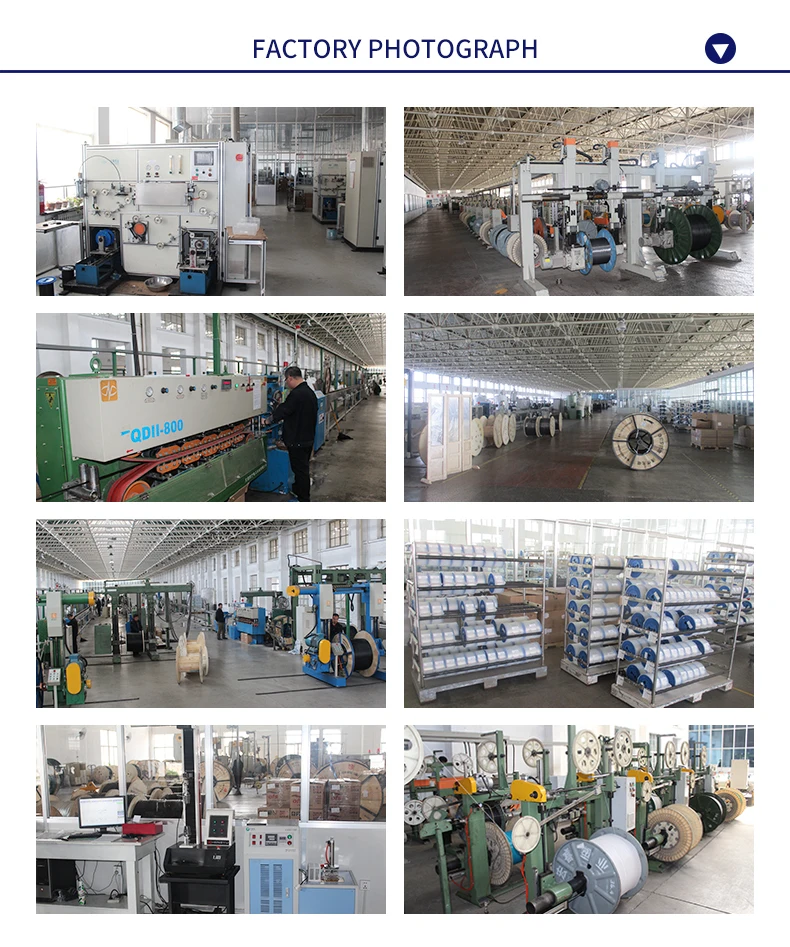

Production Line
Certifications
Our Company
Exhibition Show
FAQ
1. Are you the real factory?

Yes,our factory is located in Shandong Province, near to Qingdao Port,having more than 30- years munufature experience. Welcome to visit.
2. What is the conductor material?
All the cable conductor is made of oxygen-free bare copper. If you need CCA, CCS or other material conductor, please tell the customer service staff.
3.What is your main products?
Our main products are outdoor and indoor fiber optic cable, FTTx cable, network cable and telephone cable.
4.What is your payment term?
30% in advance, 70% before delivery.
