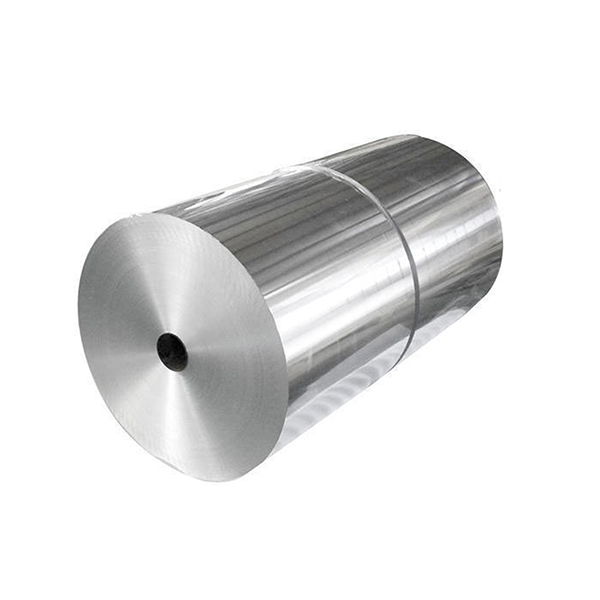

Aluminum Jumbo roll blue goldcolor Hydrophilic Aluminum Foil Packaging Film Finish Temper Feature
Metallurgy,Chemicals & Energy Metallurgy and founding
FOB Price:US$ 2,300.00 / Ton(s)
MOQ:1 Ton(s)
Payment Method : L/C T/T D/P
Keywords:Hydrophilic Aluminum Foil Aluminum Foil Aluminum Foil Packaging
| Product Category: | Metallurgy,Chemicals & Energy > Metallurgy and founding | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | tianjin port |
Products Description
Hydrophilic aluminum foil is the main material of radiating fin in air conditioner. It is widely used in refrigeration plant,
refrigerating cabinet, automotive air conditioner, etc.Our hydrophilic aluminum foil, such as grade 8011,1100,1200, 3102, etc. are entirely in compliance with international high quality standards.
refrigerating cabinet, automotive air conditioner, etc.Our hydrophilic aluminum foil, such as grade 8011,1100,1200, 3102, etc. are entirely in compliance with international high quality standards.
Sepcification
1.Alloy grade: 8011, 3102, 1100, 1030B
2.Temper: O, H16, H18, H22, H24, H26
3.Thickness: 0.085-0.35mm
4.Width: 140-1300mm
5.Coating on both sides: 2.5- 4.5g/m2
6.Inner diameter: 76mm, 152mm
7.OD: in accordance with customers’ requirements
8.Colors: natural aluminum color, blue, golden, black, white, green
9.Adhesion: AICC n° 17 (squares method)
2.Temper: O, H16, H18, H22, H24, H26
3.Thickness: 0.085-0.35mm
4.Width: 140-1300mm
5.Coating on both sides: 2.5- 4.5g/m2
6.Inner diameter: 76mm, 152mm
7.OD: in accordance with customers’ requirements
8.Colors: natural aluminum color, blue, golden, black, white, green
9.Adhesion: AICC n° 17 (squares method)
10.Polymerization evaluation, M. E. K. resistance: ＞ 10 double rubs in according
11.Corrosion resistance: ASTM B117 ≥ 500h = 10, i.e. 500h salt fog, 5%NaCl Blistering size 8 with few frequencies (according to ASTM D 714-87)
12.Water resistance: excellent adhesion test after boiling in water 100℃ for 10 minutes
13.UV-resistance: 250h to QVA UVA 340 0.89W/m2, cycle: 8h light at 60℃ + 4h condensation at 50℃ -gloss at 60 ℃/retention ＜30%
14.Hydrophilic performance: angle measured with demi water, measurements made after 20s drop deposition
15.Value of the contact angle: directly after wetting: ＜10°; After 2 month of exposure at room temperature: ＜10°; After 16h in tap
water at room temperature and 8h of rinsing at room temperature: ＜50°; After 5 cycles (like described before): ＜50°
11.Corrosion resistance: ASTM B117 ≥ 500h = 10, i.e. 500h salt fog, 5%NaCl Blistering size 8 with few frequencies (according to ASTM D 714-87)
12.Water resistance: excellent adhesion test after boiling in water 100℃ for 10 minutes
13.UV-resistance: 250h to QVA UVA 340 0.89W/m2, cycle: 8h light at 60℃ + 4h condensation at 50℃ -gloss at 60 ℃/retention ＜30%
14.Hydrophilic performance: angle measured with demi water, measurements made after 20s drop deposition
15.Value of the contact angle: directly after wetting: ＜10°; After 2 month of exposure at room temperature: ＜10°; After 16h in tap
water at room temperature and 8h of rinsing at room temperature: ＜50°; After 5 cycles (like described before): ＜50°
If you have any question,please feel free to contact me. Sales Service 24 hours we are sure your inquiry or requirements will get prompt attention !!!!
Company Profile
Tianjin Yikuo Co., Ltd.
Tianjin Yikuo Co., ltd is a group company, which includes 5 production lines. Cold rolling, galvanizing, prepainting, stainless steel, and Aluminum.
With 20 years development, Yikuo not only keep updating our production facility but also culture a young and diversified team. Yikuo cares more about Clients interest, including product quality, payment terms, and also logistics service.
Yikuo has built divisions in different countries, not for competing with our local distributors, just to provide a more responsive service. Whenever our goods arrive in the port, our staff will go and check the goods just in case of any error and make sure clients can have a good experience working with us.
Factory photos
Aluminum foil production process
Packing&Shipping
Exhibition
FAQ
Q1. What is the minimum order quantity (MOQ)?
A:Normally, the MOQ for one coil 1 ton.
Q2. What is the payment method?
A:For new customers: 30%T/T deposit 70%T/T Before shipment. – For partners and distributors, 30%T/T deposit 70% T/T Against B/L Copy. For strategic partner, we can accept 30days LC.
Q3.What is the acceptable currency?
A:We accept USD, EUR and RMB.
Q4. What is the delivery time?
A:5-10 days in advance depending on the stock status.
Q5. Where is the loading port?
A:Normally, our loading ports are Tianjin, and Shandong. Or client can assign any port in China.
Q6. What is the delivery term?
A:Normally, our loading ports are Tianjin, and Shandong. Or client can assign any port in China.
Q7. Do you offer free samples?
A:Yes, based on our stock status, we will send our customer free samples. The express fee is to be paid by our customers.
If you have any question,please feel free to contact me. Sales Service 24 hours we are sure your inquiry or requirements will get
prompt attention !!!!
prompt attention !!!!
