polymer pin insulator 10-36kv

Electrical & Power Energy Electrical Switches & Supplies

FOB Price:US$ 4.00 / Piece(s)

MOQ:100 Piece(s)

Payment Method : L/C T/T D/P Western Union Paypal Money Gram

Keywords:COMPOSITE INSULATOR 10kV composite insulator 35kV composite insulator 66kV composite insulator Post composite insulator  polymer pin insulator 10-36kv suspension composite insulator Suspension polymer Insulator 15kv composite insulator

Add to Favorites

Product Category: Electrical & Power Energy > Electrical Switches & Supplies Trademark: SASUN
Product Package: Paper Carton Specifications: 45 X 46 X 28
Place of Origin: CHINA Port: YIWU

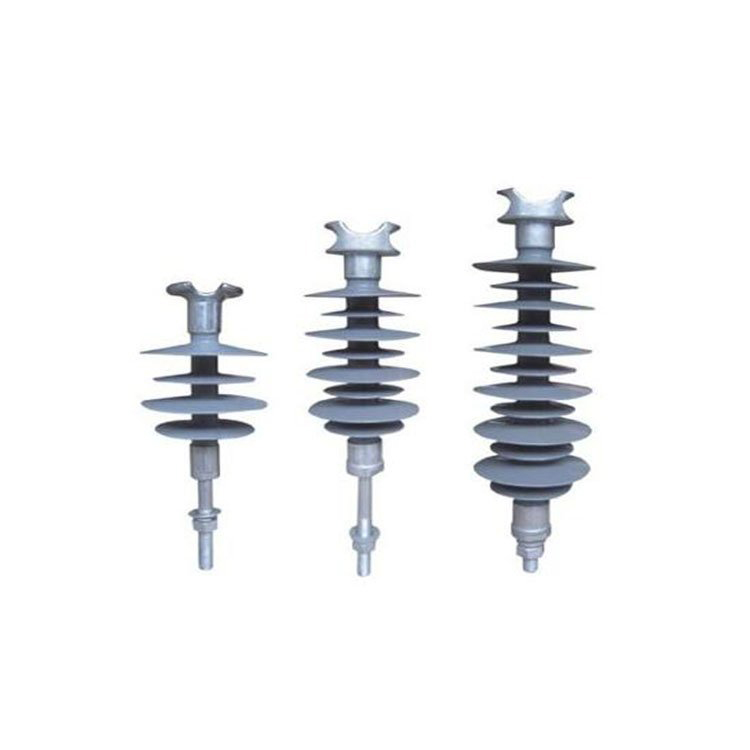

The polymer pin insulator consists of a core rod, a silicone umbrella and a metal fitting.Pin insulators have high resistance to bending, shock, shock and explosion.With reliable internal insulation and light weight, it is an ideal replacement for the traditional tempered glass insulator.
       The silicone rubber shed adopts the all-envelop pressure technology to solve the key problem that affects the reliability of composite insulators -- interface spark breakdown.
Pin insulators have high strength, beautiful appearance, small size and light weight, and the metal parts electroplated can prevent corrosion and exchange with porcelain insulators.
      The product has reliable structure, no damage to the mandrel, and makes full use of mechanical strength.


Polymer Pin Insulator Product Parameter
TypeRated voltage(KV)  Specifified  bending loadSection length(mm)  Min Arcdistance (mm)  Leakage distance (mm)Lightning impulse withstand BIL(KV) Power frequency withstand (wet) (KV)
FPQ-11/411428520545010545
FPQ-11/511530022048010545
FPQ-11/511524517742610545
FPQ-11/10111027619152510545
FPQ-15/10151028016066014565
FPQ-24/824826018077018580
FPQ-33/10331033525074018580
FPQ-33/633649038088020095
FPQ-35/5355540375118523095
FPQ-36/12.53612.56005301440325140
We can customize products according to the parameters and drawings required by customers
