Rail Drilling Rig

Oil & Gas Oil and Gas Equipment

FOB Price:US$ Customizable price / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T

Keywords:Oilfield Drilling Rig rail drilling rig

Inquire


Add to Favorites

Product Category: Oil & Gas > Oil and Gas Equipment Trademark:
Product Package: Specifications:
Place of Origin: Port: Shanghai

Feature:

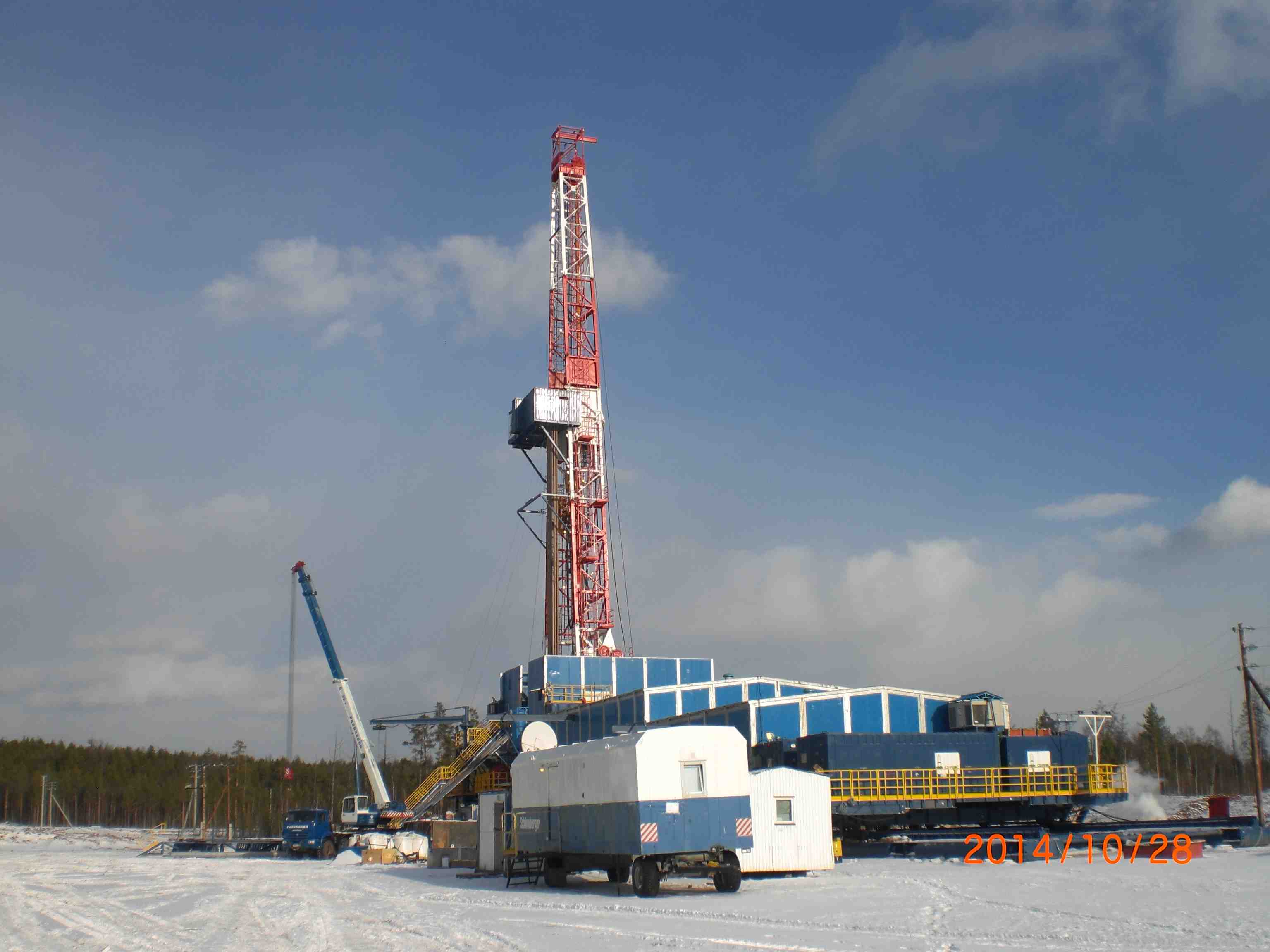

1. Rail drilling rig is to install lifting system, substructure base, power system, electronic control system, generator set, solid control system, mud pump unit, well control system and other equipment on the guide rail, which can move along the track as a whole and is suitable for multi-well drilling.

2. The moving mode of drilling rig includes hydraulic stepping type and wheel-rail rolling type. The integrated design and manufacturing of each module is simple and reliable, and can meet the requirements of highway and railway transportation.

3. The drilling rig is equipped with windproof, sandproof shed and heating equipment, which is suitable for drilling in desert and cold area.



Product Parameters:

Model

ZJ40/2250DBG

ZJ50/3150DBG

ZJ70/4500DBG

Max Hook Load    (kN)

2250

3150

4500

Nominal   Drilling Depth（114 mm）m

2500～4000

3500～5000

4500～7000

Drawworks   Power (kW)

746～1120

1100～1492

1492～2240

Lines

8, 10

10, 12

10, 12

Wire line Dia.   (mm)

29, 32

32, 35

35, 38

Mast Height   (m)

45

45

45

Max Hook speed   (m/s)

1.5

Substructure   Height (m)

7.5, 9

9, 10.5

9, 10.5

RT Hole Dia.   (mm)

698.5

698.5, 952.5

952.5

Main Brake

Disc Brake

Disc Brake

Disc Brake

auxiliary   brake

dynamic braking

dynamic   braking

dynamic   braking

*Mud pump   power (hp)×qty

1300×2

1300×3, 1600×2

1600×3

*engine power   (kW)×qty

810×3, 1310×2

810×3, 1310×3

1310×4

* Reco (mm)ended specification




Contact Name: Mrs XIN WANG Contact Email: 19****8@qq.com
Contact Job Title: Sales And Marketing Contact Mob: 137***804
Contact Tel: 0086 0377 63577509 Contact Fax:
Address: NO.869 WESTERN ZHOGNZHOU ROAD, NANYANG CITY, HENAN PROVINCE, CHINA Website: http://www.ejpetro.com



RG PETRO-MACHINERY GROUP CO., LTD. is one of the largest and the most professional manufacturers of Petroleum drilling equipment in China. RG is the member of Associate Member of IADC. RG Acquired API Spec Q1, 4F, 7K,8C, and obtained TUV Certifications and ATEX Certifications.  We are proud to serve the international oil and gas drilling industry. Our applications not only work reliably from day one. They are built to last a lifetime.



Products classified as 12 Series in more than 200 kinds mainly includes truck-mounted drilling rig, skid-mounted drilling rig, offshore drilling rig and unconventional oil and gas development equipment.
