Cba08-A1-49 Vacuum Welded Metal Bellows Seal for Telius Gate Door

Manufacturing & Processing Machinery Valves & Pumps & Compressors

FOB Price:US$ 1.00 / Other

MOQ:1 Other

Payment Method : L/C T/T D/P Western Union Paypal Money Gram Others

Keywords:mechanical seals Mechanical Seals

Add to Favorites

Product Category: Manufacturing & Processing Machinery > Valves & Pumps & Compressors Trademark:
Product Package: Specifications:
Place of Origin: Port: shanghai

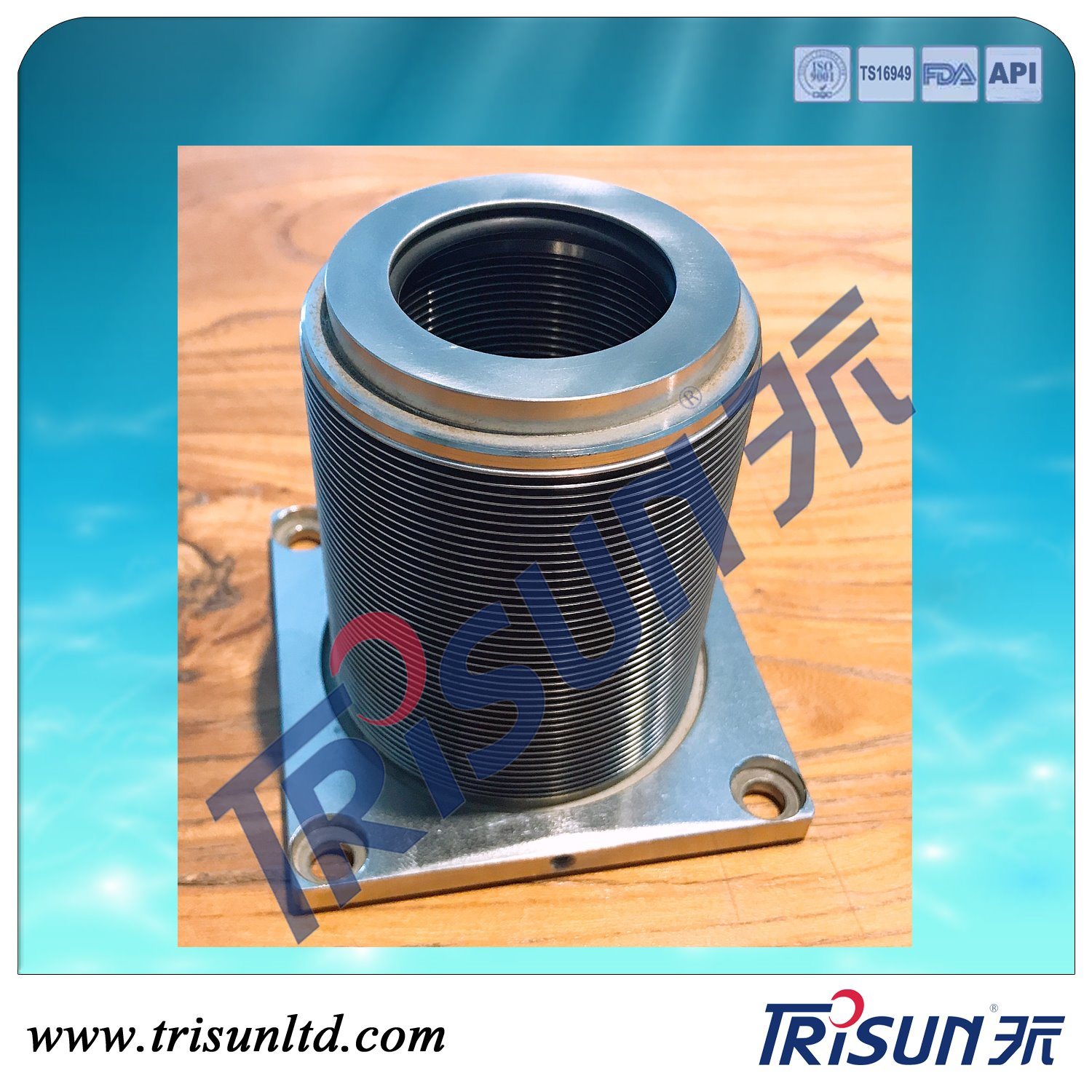

Vacuum welded metal bellows for TEL Telius gate door equipment:


Vacuum welded metal bellows for CVD:
0040-09004, 0040-20021, 0040-20194, 0040-32204, 0040-32052, 0015-055








Vacuum welded metal bellows for  Etcher 839-330743-002, 839-012255-001 and 839-093786-001, 1800-02-027021-12, Sputter 852-BLF and CVD 0015-055.









Vacuum welded metal bellows for semiconductor equipment valves, such as SMC-Japan, MKS-USA, VAT-Switzerland, MDC-Germany


We design metal bellows for Protector in hyper high temperature ESP system (250C) GZNS-136.  If you need metal bellows for
Novomet, Borets, Almaz-Hmao, Benz-Runaco ESP systems, such as 540 series, 535 series, 400 series, pls. contact me


Applications
: To achieve high vacuum
                             To achieve mechanical movement
                             To absorb shock
Semiconductor, Aero-space, Weapon Technology, Precision Measurement, Accelerator, High vacuum, semiconductor industry, solar energy photovoltaic industry, medical equipments, synchronized radiation accelerator industry


For mechanical seals, Isolation valves, Linear motion heavy duty, pneumatic, multi-motion wobble stick, pincer, etc.



1. Apply Hardened Stainless Steel,Hastelloy C,316L,Inconel 718 for Bellows.
2. Fit for the requirement of High Speed,High Temperature,High Pressure.
3.Welded metal bellows inner some degree, which can reduce stress.
4. Mechanical seal performance is stable and reliable.

Specification:
1,Outer diameter:Customized
2,Inner diameter:  Customized
3,Material: Vacuum SUS 316L,SUS 304,AM350,Hastelloy alloy C Haynes alloy 242,Inconel 625 and 718 alloy, titanium
4,Compression: 70%
5,Extended rate:5%
6,Vacuum Leak rage: 1×10-13Pa·m3/s
7,Life Time: >100,000 Cycles
8,Welcome customized.
9, Operating Direction: Vertical or Horizontal
