GJYXFDCH Indoor Fiber Optical FTTH Outdoor Cabling Traditional Bow-Type Drop Cable
Electronics and Communications communication device
MOQ:2000 Meter(s)
Payment Method : L/C T/T D/P Western Union Paypal Money Gram
Keywords:Cable Fiber Optic Cable Duct Cable Communication Cable Network Cable Fiber Optic FTTH Optical Cable Optical Fiber Cable Fiber Cable
| Product Category: | Electronics and Communications > communication device | Trademark: | Hongan or customized |
| Product Package: | Wooden Reel or Customized | Specifications: | 2km per roll or customized |
| Place of Origin: | China | Port: | Qingdao |
transmission performance
| item | 62.5μm(OM1) 850nm/1300nm | 50μm(OM2) 850nm/1300nm | 50μm(OM3) 850nm/1300nm | SM 1310nm/1550nm |
| attenuation of max value(dB/km) | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 0.4/0.3 |
| attenuation of typical value(dB/km) | 3.5/1.5 | 3.0/1.0 | 3.0/1.0 | 0.38/0.25 |
Note :
other types of fiber can also be provided according to customer's demands.
the structure dimension,mechanical performance and material can be designed according to the demands of the customers.

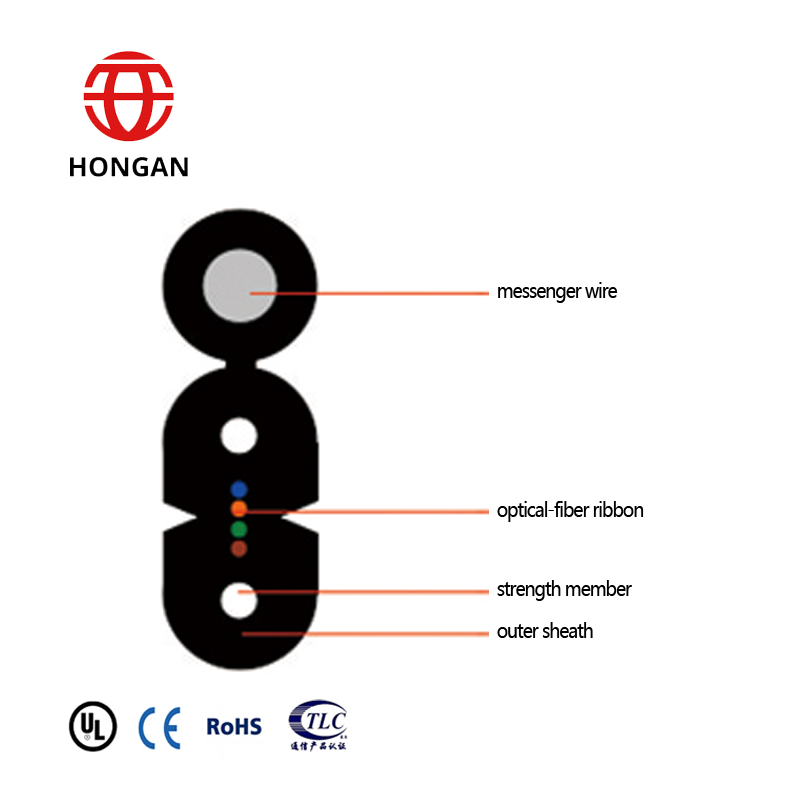

| product name | GJYXFDCH outdoor cabling ribbon drop cable |
| description | optical fiber ribbon LSZH jacket non-metal strength member self-supporting |
| standards | YD/T1997-2009 bow-type drop cable for access network |
| operating temperature | -20~+70°C |
| application | FTTH,access network |
| characteristics | *lighter and small diameter,separated easily and excellent softness *the glass fiber bar, aramid fiber rods and small wire are as strength member *the steel wire and stranding steel wire have excellent tensile strength as the self-supporting bow-type cable messenger wire *special low sensitivity of bending fiber provides higher bandwidth and realize the integration of Internet,CATV and telephone *2 parallel strength members protect fibers and ensure crush and tensile strength *unique gouge design,strip and splice easily,simplify installation and maintenance *environment friendly flame retardant LSZH sheath |
parameters
| fiber count | dimension (mm) | weight (kg/km) | long-term/ short-term permitted tensile (N) | long-term/ short-term permitted crush(N) | static/ dynamic bend radius(mm) |
| 4 | 2.0×6.0 | 17.1 | 40/80 | 500/1000 | 15/30 |
Hongan Group Co., Ltd, since 1985
| employee | total assets | area | |
| 1500 | 1.5 billion RMB | 2 million square meters | |
advanced machines: | |||
KOSOCA-CTF2000 insulated wires production line made by Japanese KOBE STEEL Co., Ltdtesting and monitoring equipment made by US DCM companyDAVIS-2500 of 4 production lines of insulated wires made by US DAVIS company four pairs group twist production line made in Canada secondary coating plastic production line and fiber coloring machine made by NOKIA company back twist pair twister and rotary traction cabling machine from France ring winding machine from US insulated wire from Rosendahl Australia SZ cabling machine from Switzerland | |||
main products form a big whole industry chain, and can be devided into 9 categories:
1.optical fiber
2.indoor & outdoor optical fiber cable (armored & nonarmored cable , drop cable etc)
3.CAT5 CAT5E CAT6 CAT7 network lan cable (both UTP and FTP)
4.municipal telephone cable
5.patchcord, fiber jumper
6.fiber pigtail
7.EPON,GPON , data center solutions and equipments
8.FTTH products
9.OEM products, customized new cable
yearly productive capacity
| fiber | cable | annual export volume |
4 million
fkm | optic cable 1.2 million core km data cable 96000 cases telephone cable 6 couple million 6 couple km | 200,000km length cable 21% of total annual production |
main reference of key performance
1.exports area: Combodia , Vietnam, Myanmar, Laos, Bahrain, United Arab Emirates, Saudi Arabia, Brazil, Cameroon, Iraq, South Africa, Nicaragua, Costa Rica
2.Trunk Line Communication Network in Vietnam, Myanmar and Cambodia
3.village to village projects in Laos
4.integrated wiring projects in Bahrain, United Arab Emirates, Saudi Arabia, Brazil and the US
5.Backbone cabling projects of China Unicom , China Telecom in many provinces
6.nominated for 9 provincial radio and television projects, such as Shandong, Fujian, Hebei, Heilongjiang
7.subway projects of Shanghai , Qingdao and other cities
8.projects for Jinan Military , Nanjing Airforce and Engineering Command of PLA
9.Broadband access integrated projects for the Great Wall broadband, Founder and other broadband
10. ATL Projects in Shandong
for optic cable
inner packaging--wooden /non-wooden /wooden-iron drum
outer packaging--wooden batten and a metal tape secured outside to protect the cable
for network cable
305m(1000ft ) per box or 500-1000m per reel
other lengths are available upon request
shipping
for sample--DHL,UPS,FedEX,TNT,airline
for bulk export--sea shipping ,airline ,road transport (optional)
1.Are you a factory or trade company?
We are TOP 10 cable manufacturer in China, and we have legal import-export operation right.
2.Where is your location ? How can I visit there ?
Our factory is located in Wendeng District, Weihai City, Shandong Province , China.
We warmly welcome you to book a factory tour to visit us when you are free.
3.What kind of material do you use?
High quality PE, PVC, LSZH etc.
4.What is your after-sale service?
2 years warranty and professional technical persons to deal with your problems.
5.Do you provide any sample?
Yes, we provide samples for your reference, your feedback will be highly appreciated.
Free sample is available and can be sent within 3 working days once confirmed.
6.Could I order a small quantity for the first stage ?
Yes, we accept small order.
7.How do you arrange OEM, ODM?
You can send us your design and drawing, and we welcome you to visit us for authorization and incumbency discussion.
8.Do you have certificate for raw material ?
We build long-term friendly relationship with qualified ROHS raw material suppliers.
