GJYXFDCH Indoor Fiber Optical FTTH Outdoor Cabling Double Core Side By Side Bow-Type Drop Cable

Electronics and Communications communication device

FOB Price:US$ 0.20 / Meter(s)

MOQ:2000 Meter(s)

Payment Method : L/C T/T D/P Western Union Paypal Money Gram

Keywords:Cable Fiber Optic Cable Duct Cable Communication Cable Network Cable Fiber Optic FTTH Optical Cable Optical Fiber Cable Fiber Cable

Add to Favorites

Product Category: Electronics and Communications > communication device Trademark: Hongan or customized
Product Package: Wooden Reel or Customized Specifications: 2km per roll or customized
Place of Origin: China Port: Qingdao
Product Description

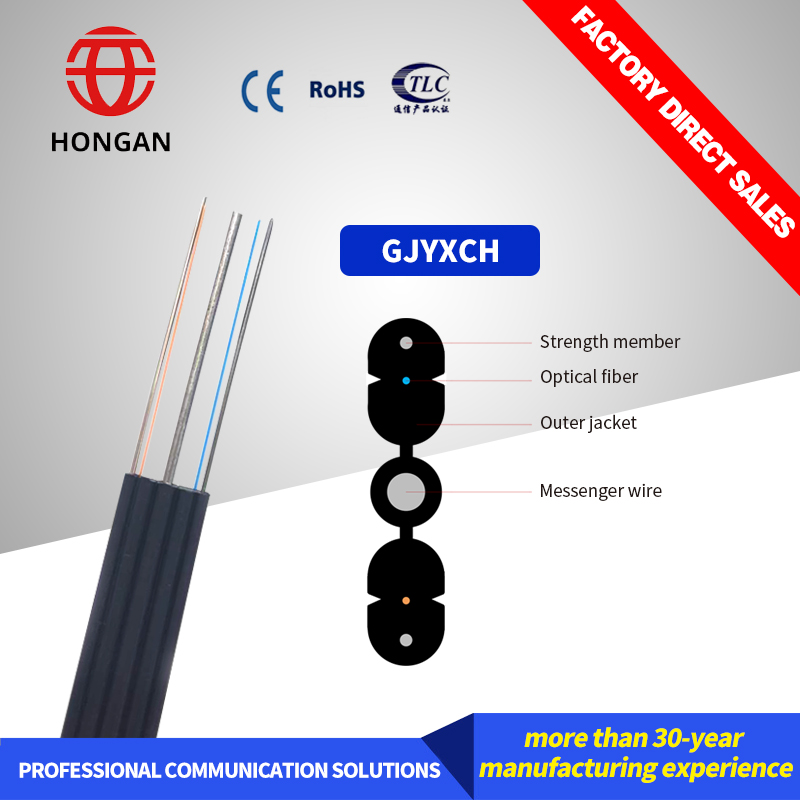

 G657a1 G652d bowtype FTTH drop fiber optic cable

Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G.657A ). The cable is protected by two parallel strength members made of metal, steel wire and a LSZH outer jacket. Designed for outdoor installation, the cable is well suited for connections between the dome closure and small dwelling unit/warehouse and independent villas.



Applications:

1. Used in access network or as access cable from outdoor to indoor in customer premises network
2. Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling.



Characteristics:

? Lightweight and compact

? Two parallel FRP strength members for optimum fiber protection

? Low-bend-sensitivity fiber (G.657A) provides high bandwidth and excellent communication transmission ? Low Smoke Zero Halogen (LSZH), non-toxic and self-extinguishing jacket



Item

Parameters

Fiber

Color

All colors display

Number of cores

2

Strength member

Material

Phosphating steel wire

Diameter (mm)

0.4

Messenger wire

Material

Phosphating steel wire

Diameter (mm)

0.9



Outer jacket

Material

LSZH(Oxygen index25%)

Color

Black

Cable diameter (Rip off the messenger wire)                           (mm)

2.0±0.1*3.0±0.1

Min. bending radius(Rip off the messenger wire)

Static

15mm

Dynamic

30mm

Tensile performance

Short term

600N

Crush

Short term

2200N/100mm







Packaging & Shipping





Certifications





Production Line





Company Information



FAQ

1.Do you provide free samples?

yes,we can supply some free samples of value under USD20,the buyer should bear all the shipping cost.

2. Can we become your distributor or agency in our area?

yes ,it is possible if we do not have an agency or distributor in your area.The best way to start the business and approve your good intentions through several regular orders over a period.we will support very good products to our distributor including samples,price and other supports.please contact with our sales manager for more details.

3.Can you supply OEM products under our brand?

yes ,we are manufacturer ,but we can accept OEM service with OEM package ,you just need to send us your detailed requirements.
