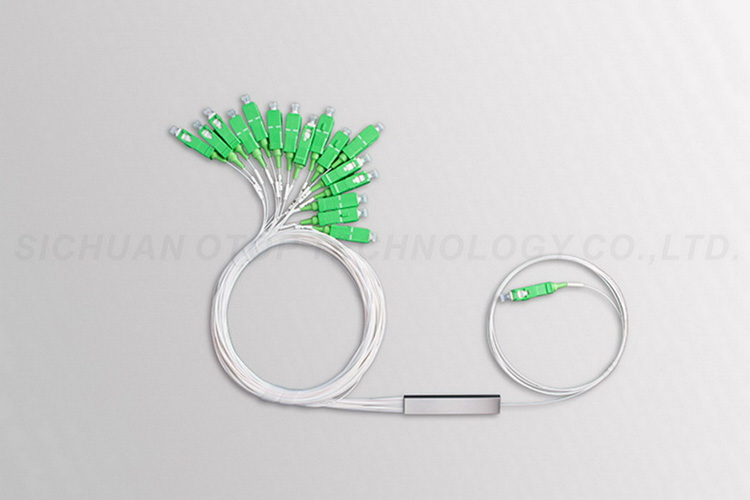

16 Way Fiber Optic Splitter SC / APC / SC / UPC Steel Tube Type Coupler
Electronics and Communications communication device
MOQ:1 Piece(s)
Payment Method : T/T
Keywords:1*16 PLC splitter SC/APC micro type PLC splitter fiber optic coupler steel tube coupler steel tube splitter 0.9mm fiber splitter
| Product Category: | Electronics and Communications > communication device | Trademark: | |
| Product Package: | Carton | Specifications: | 1*16 PLC splitter |
| Place of Origin: | Port: | Guangzhou, Shanghai |
16 Way Fiber Optic Splitter SC / APC / SC / UPC Steel Tube Type Coupler
Description| Endface Of Connector: | UPC, APC, PC | Type: | Fan - Out Fiber Optical Splitter |
|---|---|---|---|
| Insertion Loss: | ≤ 13.5dB | Fiber Type: | G657A |
| Operating Temperature: | - 40°C ~ + 85°C | Case Size: | 4 X 12 X 60 |
| High Light: | fiber optic cable splitter,optical wire splitter | ||
16 Way Fiber Optic Splitter SC / APC SC / UPC Steel Tube Type Coupler
FIber Optic Splitter Introduction
Optical coupler is an optical device that combines or splits power from optical fibers.
Optical splitter divides light from a single fiber into two or more fiber channels.
PLC Splitters offer excellent performances over wide wavelength range (1260~1620nm) at a temperature range
of -40~+85C. They feature low insertion loss and PDL, high return loss and directivity, and very good uniformity.
Applications include FTTx systems, PON and CATV networks.
Fiber Optic PLC (planar lightwave circuit) splitter is fabricated by using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in PON networks to realize optical signal power management. We provide a whole series of 1 x N and 2 x N splitters that are tailored for specific applications. All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network development requirement.
Specification
| Parameter | Unit | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
| Premium Grade | |||||||
| Insertion Loss at 23°C | Max. dB | 4.0 | 7.0 | 10.4 | 13.5 | 16.8 | 20.5 |
| Channel Uniformity | Max. dB | 0.6 | 0.8 | 1.0 | 1.4 | 1.6 | 2 |
| PDL | Max. dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Standard Grade | |||||||
| Insertion Loss at 23°C | Max. dB | 4.2 | 7.3 | 10.6 | 13.8 | 17.1 | 20.8 |
| Channel Uniformity | Max. dB | 0.6 | 0.8 | 1.0 | 1.4 | 1.6 | 2 |
| PDL | Max. dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Operating Wavelength | nm | 1260~1650 | |||||
| Return Loss | Min. dB | 60(Premium Grade) / 55( Standard Grade) | |||||
| Directivity | Min. dB | 55 | |||||
| Operating Temperature | °C | -45 to +85 | |||||
| Storage Temperature | °C | -45 to +85 | |||||
| Fiber Type | - | G657A or Customized | |||||
| Basic Type PLC Splitter | mm | 4x4x40 | 4x4x50 | 4x7x55 | 4x12x60 | ||
| 900um Fan-out Type PLC Splitter | 4x4x40 | 4x4x50 | 4x7x55 | 4x12x60 | |||
| 900um SFF Type PLC Splitter | 4x7x50 | 4x7x55 | 4x12x60 | 6x20x80 | 6x40x100 | ||
| Cassette Type PLC Splitter | 10x80x100 | 18x80x120 | 18x115x140 | ||||
| Rack Type PLC Splitter Module | 482x240x45 (19 inch 1U) | 2U | |||||
| Flat Quick-Connect Termination Type PLC Splitter Module | 130x100x25 | 130x100x50 | 130x100x76 130x100x102 | 130x100x154 130x100x206 | |||
PLC Splitter Application
- Splitting from OLT to building, each floor and single house.
- Passive optical networks
- Local Area Networks
- For net work of CATV.
- Test Equipment
? Fiber Optic Splitter Feature
- Good uniformity and low insertion loss
- Low Polarization Dependent Loss
- Excellent Environmental Stability
- Excellent Mechanical
- Stability Telcordia GR-1221 and GR-1209
Insertion Loss
- Test Wavelength: 1310-1550 nm
- Required Value: P Grade
- Test can be performed on any channel
Return Loss
- Test Wavelength: 1310-1550 nm
- Required Value:>50dB
- Test can be performed on any channel
Our advantages
- As a world class manufacturer we can ensure you are getting world class quality at a competitive price.
- We pride ourselves on earning our clients repeat business. We ensure customer satisfaction by ensuring all out products meet world ISO 9001, SGS, CE standards and best manufacturing practices.
- We also pride ourselves by ensuring we give you our client the best service and experience dealing with a reputable manufacturer.
Question and Answer
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-2 days, mass production time needs 1-2 weeks
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
Q5: What about delivery time?
A: 1) Samples: within one week.
2) Goods: 15-20 days usually.
Packing and Shipment
- Standard blister packing
- DHL, UPS and FEDEX or by ship.
