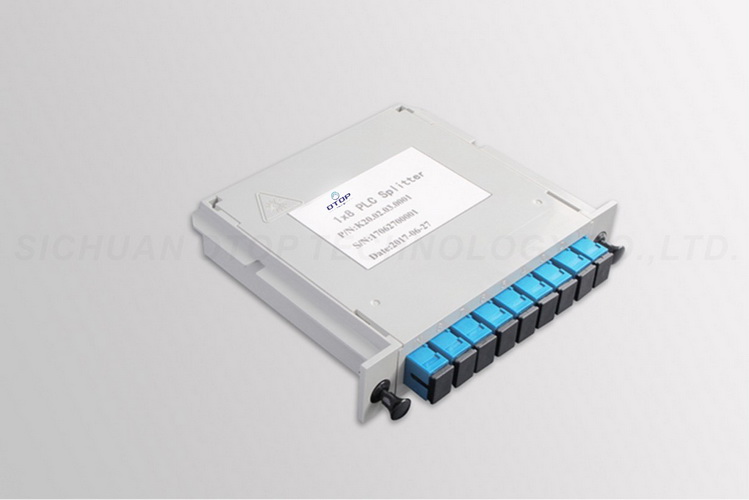

LGX Fiber Optic Cable Splitter 1x8 PLC Blade SC / UPC For Fiber To Home
Electronics and Communications communication device
MOQ:1 Piece(s)
Payment Method : T/T
Keywords:LGX splitter LGX 1x8 splitter blade PLC splitter SC/UPC splitter fiber to the home FTTH
| Product Category: | Electronics and Communications > communication device | Trademark: | |
| Product Package: | Carton box | Specifications: | LGX box |
| Place of Origin: | Port: | Guangzhou, Shanghai, Chengdu |
LGX Fiber Optic Cable Splitter 1x8 PLC Blade SC / UPC For Fiber To Home
? Fiber Optic Splitter Introduction
Fiber optical coupler is an optical device that combines or splits power from optical fibers.
Optical splitter divides light from a single fiber into two or more fiber channels.
PLC Splitters offer excellent performances over wide wavelength range (1260~1620nm) at a temperature range
of -40~+85C. They feature low insertion loss and PDL, high return loss and directivity, and very good uniformity.
Applications include FTTx systems, PON and CATV networks.
Otop provides a whole series of 1xN and 2xN splitters that are tailored for specific applications. All products meet "YD/T1117-2001 All optical fiber branching device technical conditions, YD-T 2000-209 PLC Integrated optical devices PLC optical power splitter, etc, and are certified by TLC for network deployment.
? PLC Splitter Feature
- Good uniformity and low insertion loss
- Low Polarization Dependent Loss
- Excellent Environmental Stability
- Excellent Mechanical
- Stability Telcordia GR-1221 and GR-1209
? Fiber Optic Splitter Parameter
| Parameter | Unit | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
| Premium Grade | |||||||
| Insertion Loss at 23°C | Max. dB | 4.0 | 7.0 | 10.4 | 13.5 | 16.8 | 20.5 |
| Channel Uniformity | Max. dB | 0.6 | 0.8 | 1.0 | 1.4 | 1.6 | 2 |
| PDL | Max. dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Standard Grade | |||||||
| Insertion Loss at 23°C | Max. dB | 4.2 | 7.3 | 10.6 | 13.8 | 17.1 | 20.8 |
| Channel Uniformity | Max. dB | 0.6 | 0.8 | 1.0 | 1.4 | 1.6 | 2 |
| PDL | Max. dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Operating Wavelength | nm | 1260~1650 | |||||
| Return Loss | Min. dB | 60(Premium Grade) / 55( Standard Grade) | |||||
| Directivity | Min. dB | 55 | |||||
| Operating Temperature | °C | -45 to +85 | |||||
| Storage Temperature | °C | -45 to +85 | |||||
| Fiber Type | - | G657A or Customized | |||||
| Basic Type PLC Splitter | mm | 4x4x40 | 4x4x50 | 4x7x55 | 4x12x60 | ||
| 900um Fan-out Type PLC Splitter | 4x4x40 | 4x4x50 | 4x7x55 | 4x12x60 | |||
| 900um SFF Type PLC Splitter | 4x7x50 | 4x7x55 | 4x12x60 | 6x20x80 | 6x40x100 | ||
| Cassette Type PLC Splitter | 10x80x100 | 18x80x120 | 18x115x140 | ||||
| Rack Type PLC Splitter Module | 482x240x45 (19 inch 1U) | 2U | |||||
| Flat Quick-Connect Termination Type PLC Splitter Module | 130x100x25 | 130x100x50 | 130x100x76 130x100x102 | 130x100x154 130x100x206 | |||
? Application
- Optical communication system
- System and signal monitoring
- CATV Systems & Fiber Sensors
- Fiber to the home (FTTH)
- Network redundancy
- Laser splitting
? Working area
- The telecommunication network, mereopolitan area network, optical fiber communication sustem;
- Optical testing equipment / instrument
- CATV optical fiber, optical fiber sensor
- Optical fiber broadband access network, FTTH optical fiber
- Optical fiber broadband frame, frame type and wall type optical fiber distribution unit
? Packing and Shipment
- Standard blister packing
- DHL, UPS and FEDEX or by ship.
