LC / APC - LC / APC Fiber Optic Patch Cord , Lc To Sc Fiber Patch Cable

Electronics and Communications communication device

FOB Price:US$ Customizable price / Piece(s)

MOQ:1 Piece(s)

Payment Method : T/T

Keywords:fiber optic patch cord fiber optic patchcord fiber optic jumper LC/APC-LC/APC Fiber optic patch cable LC to SC LC/UPC SM single mode MM

Inquire


Add to Favorites

Product Category: Electronics and Communications > communication device Trademark:
Product Package: Carton box Specifications: LC-LC
Place of Origin: Port: China

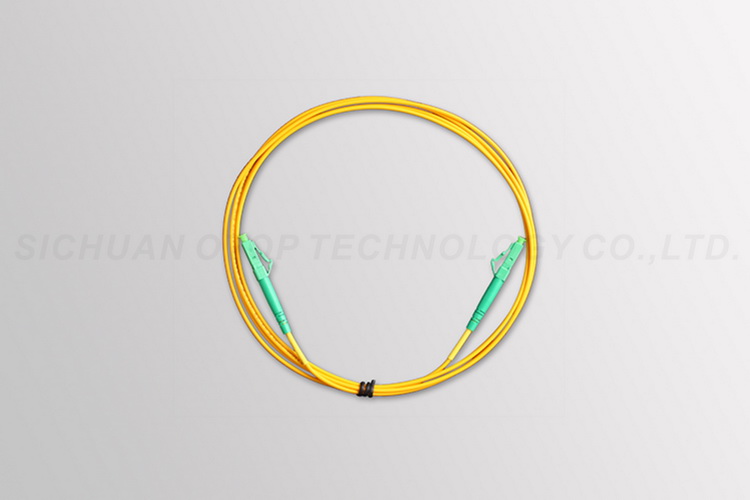

LC / APC - LC / APC Fiber Optic Patch Cord , Lc To Sc Fiber Patch Cable


Feature

Fiber Optic Patch Cord is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

Single mode and multi mode SC fiber optic patch cables, SC-LC, SC-ST, SC-FC, SC-MU, SC-MTRJ, SC-E2000, 9/125μm, 50/125μm, 62.5/125μm, SM, MM, simplex, duplex, UPC, APC, PC. Customized design cables are available.
The SC fiber optic patch cord is one of the earliest type and one of the most commonly used fiber optic cable, it is convenient to use and cost saving, It is the most cheapest type fiber optic patch cable. SC fiber patch is widely uesed in fiber optic networks. SC fiber patch cable is with zirconia sleeve and plastic housing.

Professional manufacturer, 100% tested
Save much costs, bring more benefit for customer to expand business.
Warmly services with careful attentions.


Application



- FTTH
- Fiber optic data transmission
- Optical fiber communications system
- Optical fiber access networks(LAN)
- Optical fiber CATV
- Optical fiber test equipment
- Optical fiber data communication
- Optical fiber sensor


Specification


ParametersStandard Fiber Cable Assemblies
Fiber TypeSM(G.652/G.657A)MM(OM1/OM2/OM3/OM4/OM5)
Jacket MaterialsLSZH/OFNR/PVC
Connector TypeSC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000
Ferrule MaterialsCeramic
Testing Wavelengths1310±30/1550±30nm850±30/1300±30nm
Insertion Losss(dB)
TIA/EIA-455-107		≤ 0.25dB
(PC/UPC/APC)		≤ 0.3dB
(PC/UPC)
Return Loss(dB)
TIA/EIA-455-107		≥50dB(PC/UPC)
≥60dB(APC)		≥40dB(PC/UPC)
Exchangeability≤ 0.2dB
Cable AssembliesPigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)-10~ + 70
Storage Temperature (° C)-40 ~ +85
Package1unit/bag
*All values specified are with connectors.



Packing


- Plastic bag
