GM1000p-12 Cardboard V Grooving Machine Manual

Print,Pack,Plastic Printing Materials & Services

FOB Price:US$ 7,000.00 / Set(s)

MOQ:1 Set(s)

Payment Method : L/C T/T

Keywords:Cardboard Grooving Machine Grooving Grooving Machine Automactic Grooving Machine

Add to Favorites

Product Category: Print,Pack,Plastic > Printing Materials & Services Trademark: ZHENGRUN
Product Package: Wooden Case Specifications: L1800*W1300*H1200mm
Place of Origin: Zhejiang China Port: Ningbo

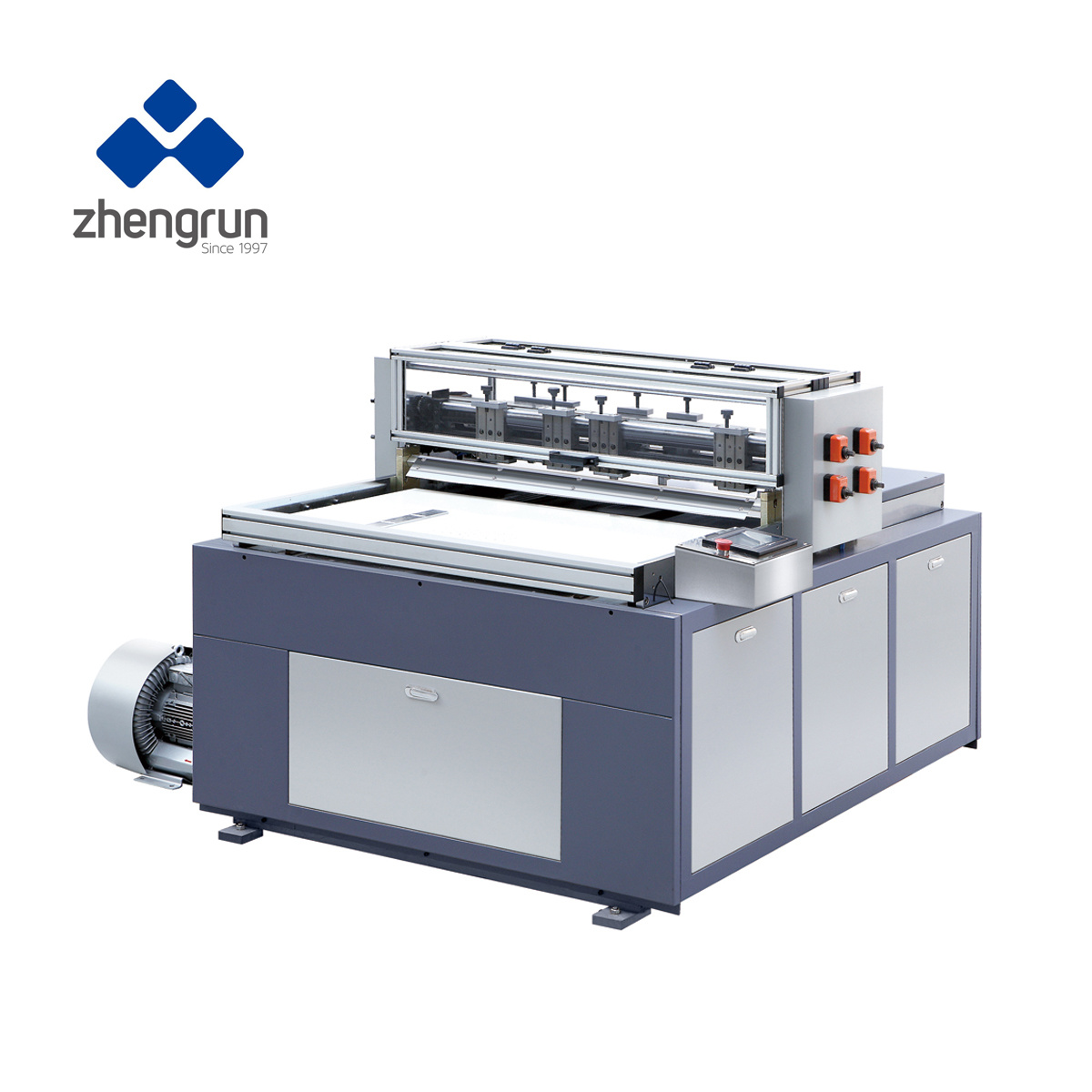

Zhengrun Good Price GM1000P-12 Cardboard V Grooving Machine Manual
PLC Programmed / Touch Screen / International electronic components;
Reliable and stable / PLC programmed / Quality-trustworthy;
High precision / High speed / No Dust / No blur
Professional grooving machine

USE:
Groove Machine: Cutting few pieces of grooves on the paper board or mdf board, for bending or folding purpose of gift boxes, hardcovers or other packages.


Features:
1. It adopts PLC control, featuring in simple operation. The troubles are displayed directly on the HMI, which helps the operator easily remove them.
2. The cardboard feeder is controlled by linear guide line and servo motor, positioning accurately and swiftly.
3. Equipped with high quality vacuum pump for board feeding, which keeps the cardboard grooving accurately without any movement.
4. Supply with high quality durable knife and knife grinder, easy to operate and bring best grooving effect.
5. Wide use: Can be used in grooving the paperboard, corrugated board, cardboard, MDF and other paper packaging materials etc.


Main Technical Parameter:

Model noAGM1000P2-8AGM1000P2-12GM1000P-12
Feeder2 auto feeders2 auto feedersManual feeding
Width of paper board120-950mm120-950mm50-1000mm
Length of paper board60-450mm60-450mm50-600mm
Grooves gap0-900mm0-900mm0-950mm
Shape of grooveV shape (50-150degree), U square shape, L shape for edge trimming
Thickness of paper board0.3-3mm0.3-3mm0.4-4mm
Number of grooves at one time8 pieces12 pieces12 pieces
Knife seats8 knife seats12 knife seats12 knife seats
Flatbed running speed35 times/min35 times/min15-20 times/min
Motor power5.2KW/380V  3Phase3.7KW/380V  3Phase4.5KW/380V  3Phase
Machine Weight2000kg1800kg1800kg
Machine DimensionL1800xW1500xH1400mmL1800xW1500xH1400mmL1800xW1300xH1200mm

Remark:
1. Customizable for special sizes.
2. The speed depends on the size, thickness, quality of board;
3. Machinery need external air and electric supply.
