Filling System Microliter Peristaltic Pump-MLP Series
Manufacturing & Processing Machinery Energy & Mineral Equipment
MOQ:1 Piece(s)
Payment Method : T/T Western Union Paypal Others
Keywords:Filling System Peristaltic Pump leadfluid Dispensing pump MLP Series high accuracy High precision Clinical Analytical Instruments ODM high efficiency
| Product Category: | Manufacturing & Processing Machinery > Energy & Mineral Equipment | Trademark: | LEADFLUID |
| Product Package: | By Cartons | Specifications: | BOX |
| Place of Origin: | China | Port: | tianjin, qingdao, |
Description
Function and Feature
? High filling accuracy，the error is less than ±0.2%.
? Modular design，easy to expand，multiple pumps can be cascaded to form a multi-channel filling system.
? The man-machine interface directly input liquid volume parameters, easy to operate.
? High-precision servo motor drive,large torque,free-maintenance.
? Rotary pressure tube structure, high efficiency, small volume.
? The pump tube is low in loss, the continuous service life up to 700 hours, 12 hours attenuation rate＜1%, simple maintenance.
? Suction back function,zero dripping,instant shutdown.
? High clean pipeline, easy to disassemble, easy to clean and sterilize, support CIP and SIP.
? It can be operated manually or used with an automatic production line.
Technical Parameters
| Filling Range | 1μl~10ml |
| Channel | 1（Single）,up to 16 channels cascade are supported |
| Filling Time | 0.01~99.99S |
| Interval Time | 0.01~99.99S |
| Filling Times | 0（Infinite loop）~9999 |
| Tubing | ID 0.5~9.6mm |
| Display | 7 inch HD color touch screen |
| External Control Signal | Dry contact start signal, lack of bottle filling stop signal, feedback signal |
| Communication | RS485，MODBUS commnunication protocol |
| Power | Single channel<60W |
| Power Supply | AC100~240V，50/60Hz |
| Dimension | Reference size drawing |
Feature Comparision
Compared with Traditional Peristaltic Pump
MLP Peristaltic Pump | Traditional Peristaltic Pump | |
Filling Accuracy | high accuracy,high repeatability, filling10μl error<±0.2μl，100ul error<±1μl, 10ml error<±0.4% | not suitable for filling less than 100ul,200μl error<±3μl, 10ml error<±1% |
Filling Efficiency | high efficiency，productivity up to 60 bottles/min | average efficiency，productivity＜40 bottles/min |
Attenuation | 12 hours continuous operation，attenuation＜1%,work one day without calibration | 12 H continuous operation，attentuation＞5%, need to calibrate every 2 H |
Tube Life | continuous operation，service life＞700 hours | fail after 70-100 hours of continuous operation |
Pulsation | no pulse,small impact,no splash | large pulse, easy to splash |
Compared with Plunger Pump
MLP Peristaltic Pump | Plunger Pump | |
Cleanliness | no dead volume,no effusion,material only contact with clean pipeline,no pollution | dead volume，effusion,material contact with the pump head cavity |
Ease of Use | filling different material,only replace the pipeline to avoid cross contamination, low cost,simple maintenance | One pump can only fill one material, complicated maintenance |
Universality | the material may contain particles such as magnetic beads | material must be clean and free of impurities |
Dripping | retractable without dripping | easy to drip |
Cavity Shedding | low extrusion strength,no mechanical friction,smooth cavity wall without shedding | continuous mechanical friction,the cavity is easy to fall off particles |
Filling Accuracy and Efficiency
MLP500
Filling Range | Filling Time | Error Value | Accuracy Error | 12 Hours Attenuation Rate |
1μl | 0.01~0.02 | ±0.1μL | <±10% | <1% |
5μl | 0.09~0.18s1 | ±0.1μL | <±2% | |
10μl | 0.18~0.36 | ±0.1μL | <±1% | |
0.09~0.18 | ±0.2μL | <±2% | ||
20μl | 0.18~0.36 | ±0.2μL | <±0.5% | |
50μl | 0.22~0.44 | ±0.5μL | <±1% | |
100μl | 0.2~0.4 | ±1μL | <±1% | |
200μl | 0.17~0.35 | ±2μL | <±1% | |
300μl | 0.27~0.541 | ±2μL | <±0.6% | |
0.13~0.27 | ±4μL | <±1.3% | ||
500μl | 0.23~0.46 | ±4μL | <±0.8% |
MLP3000
Filling Range | Filling Time | Error Value | Accuracy Error | 12 Hours Attenuation Rate |
1μl | 0.01~0.02 | ±0.1μL | <±10% | <1% |
5μl | 0.04~0.12 | ±0.1μL | <±2% | |
10μl | 0.09~0.23 | ±0.1μL | <±1% | |
20μl | 0.18~0.46 | ±0.1μL | <±0.5% | |
0.1~0.24 | ±0.2μL | <±1% | ||
50μl | 0.25~0.6 | ±0.2μL | <±0.4% | |
0.08~0.2 | ±0.5μL | <±1% | ||
100μl | 0.16~0.4 | ±0.5μL | <±0.5% | |
0.13~0.3 | 1μL | <±1% | ||
200μl | 0.26~0.6 | ±1μL | <±0.5% | |
0.1~0.25 | ±2μL | <±1% | ||
300μl | 0.15~0.35 | ±2μL | <±0.6% | |
0.1~0.22 | ±4μL | <±1.6% | ||
500μl | 0.25~0.6 | ±2μL | <±0.4% | |
0.16~0.35 | ±4μL | <±0.8% | ||
800μl | 0.11~0.23 | ±8μL | <±1% | |
0.11~0.23 | ±8μL | <±1% | ||
1ml | 0.13~0.26 | ±8μL | <±0.8% | |
0.13~0.26 | ±8μL | <±0.8% | ||
0.08~0.17 | ±13μL | <±1.3% | ||
3ml | 0.25~0.5 | ±13μL | <±0.6% |
MLP10000
Filling Range | Filling Time | Error Value | Accuracy Error | 12 Hours Attenuation Rate |
100μl | 0.15~0.3 | ±1μL | <±1% | <1% |
200μ | 0.25~0.5 | ±1μL | <±0.5% | |
300μl | 0.4~0.8 | ±1μL | <±0.3% | |
500μl | 0.2~0.4 | ±5μL | <±1% | |
1ml | 0.17~0.35 | ±8μL | <±0.8% | |
0.1~0.2 | ±13μL | <±1.3% | ||
3ml | 0.3~0.6 | ±13μL | <±0.5% | |
0.2~0.4 | ±20μL | <±0.6% | ||
5ml | 0.35~0.7 | ±20μL | <±0.4% | 2% |
10ml | 0.5~1 | ±40μL | <±0.4% | 2% |
Dimension UN(mm)

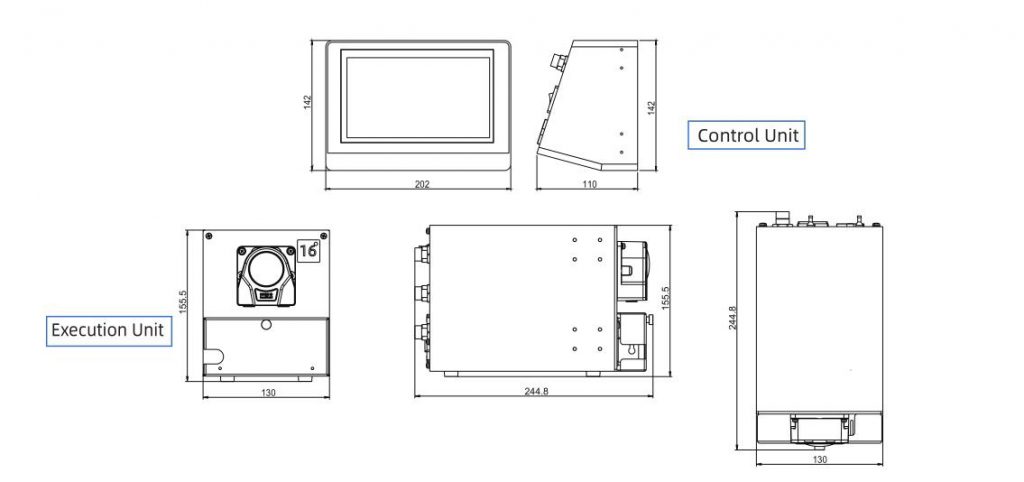

MLP500

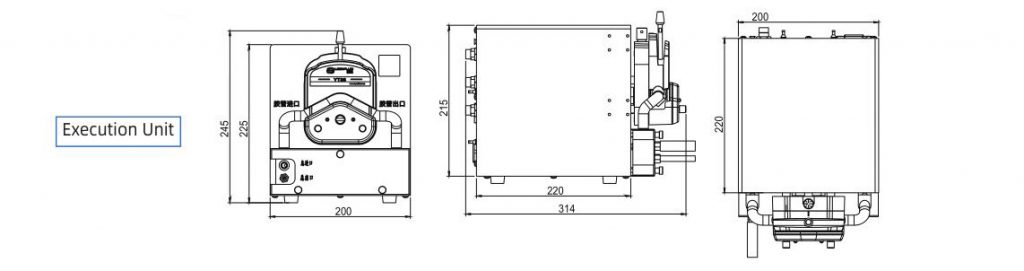

MLP3000

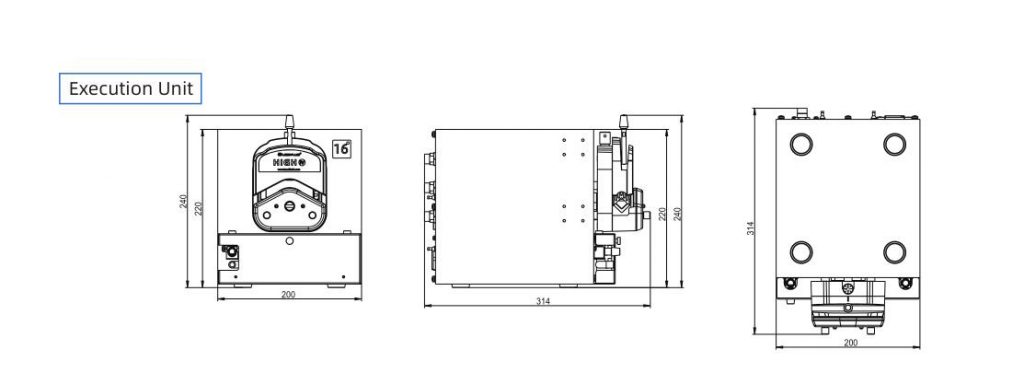

MLP10000
