Zhejiang Future Valve Ball Co.,Ltd

Business Type:Manufacturer

Main Products: Valve Ballsvalve seat ringmetal to metal ball and seat ringball valve parts

view on mobile

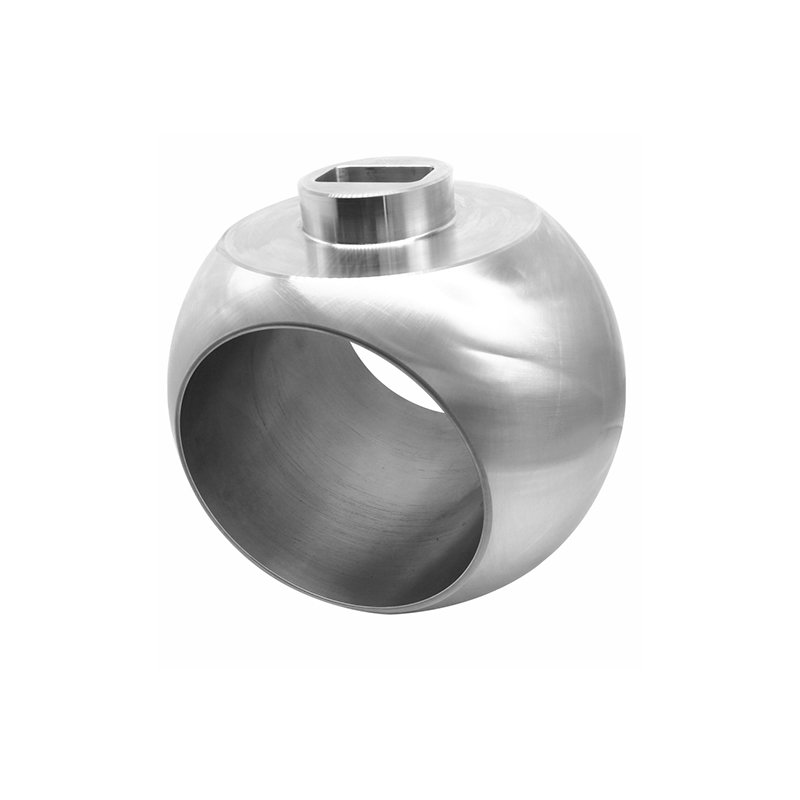

Trunnion Ball

Oil & Gas Piping and valves

FOB Price:US$ 1.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T Others

Keywords:trunnion ball carbon steel ball Valve Balls

Add to Favorites

Product Category: Oil & Gas > Piping and valves Trademark:
Product Package: cardbord in wooden case Specifications: 2''-48''
Place of Origin: wenzhou, china Port: shanghai/ningbo

类型 Type:


浮动球、固定球、三通球、V型球、长柄球、异型球、硬密封球和阀座套组等。

Floating Ball, Trunnion Ball,3-way Ball, V-type Ball,Stem Ball,Special Shape Ball, Metal to Metal Ball& Seat Ring Kits.


产品规格 Product Size:

1/2''-48''(DN15-DN1200)

压力等级 Pressure Range:

Class 150-2500(PN16-PN420)


主要材质 Main Material:

ASTM A105, A350 LF2, A182 F304(L)/F316(L)/F6A/F51/F53/F55, A564 630(17-4PH), Inconel625,Incoloy825, Inconel718,Monel400/K-500, Hastelloy and etc.


喷涂、堆焊 Coating&Cladding:


ENP, Chrome Plating, Tungsten Carbide, Chrome Carbide, Stellite, Inconel overlay etc.,


粗糙度 Roughness:

Ra0.2-Ra0.4


圆度 Roundness:


1/2''-32'': 0.015mm

1/2''-48'': 0.02mm


同心度 Coaxiality:

1/2''-32: 0.02mm

32''-48'': 0.03mm


Contact Name: Mrs Yanyan Ye Contact Email: in****o@future-ballvalve.com
Contact Job Title: Sales Manager Contact Mob: 152***307
Contact Tel: 86-0577-67389903 Contact Fax:
Address: wuxing industrial zone, oubei, wenzhou, zhejiang, china Website: www.future-ballvalve.com
Future Valve Ball Co.,Ltd, established in 2004, located in the valve town of wenzhou, zhejiang. We have much remarkable experience in producing and exporting high quality Ball&Seats for ball valves. The persistence and specialization makes us a well-equipped and well-managed company. We have more than 100 employees and 20 senior technical personnel. With the effort of our coworkers, we have been certified to ISO9001-2015 quality system. The workshop, covers an area of 8000㎡, has about 100 sets of various kinds of advanced machining equipment, including CNC vertical lathes, horizontal machine centers and etc., The laboratory has about 50 sets of inspection device, including three-coordinates measuring machine, portable spectrum analyzer and etc., The main material include: carbon steel. stainless steel, cryogenic steel, and special alloy. Such as A105, LF2,410,F6A,430,4140,F304(L),F316(L),17-4PH,F51,F53,F55, Inconel625,Inconel718,Incoloy825, monel series, Hastelloy and etc. Advanced equipment, excellent management, rich experienced staffs, bright prospect, enable us to serve confidently for ball valve manufacturing industrial around the world. We are dedicated to offer you better price, better quality, better delivery time, better service. Looking forward to a sincere cooperation with you soon.
