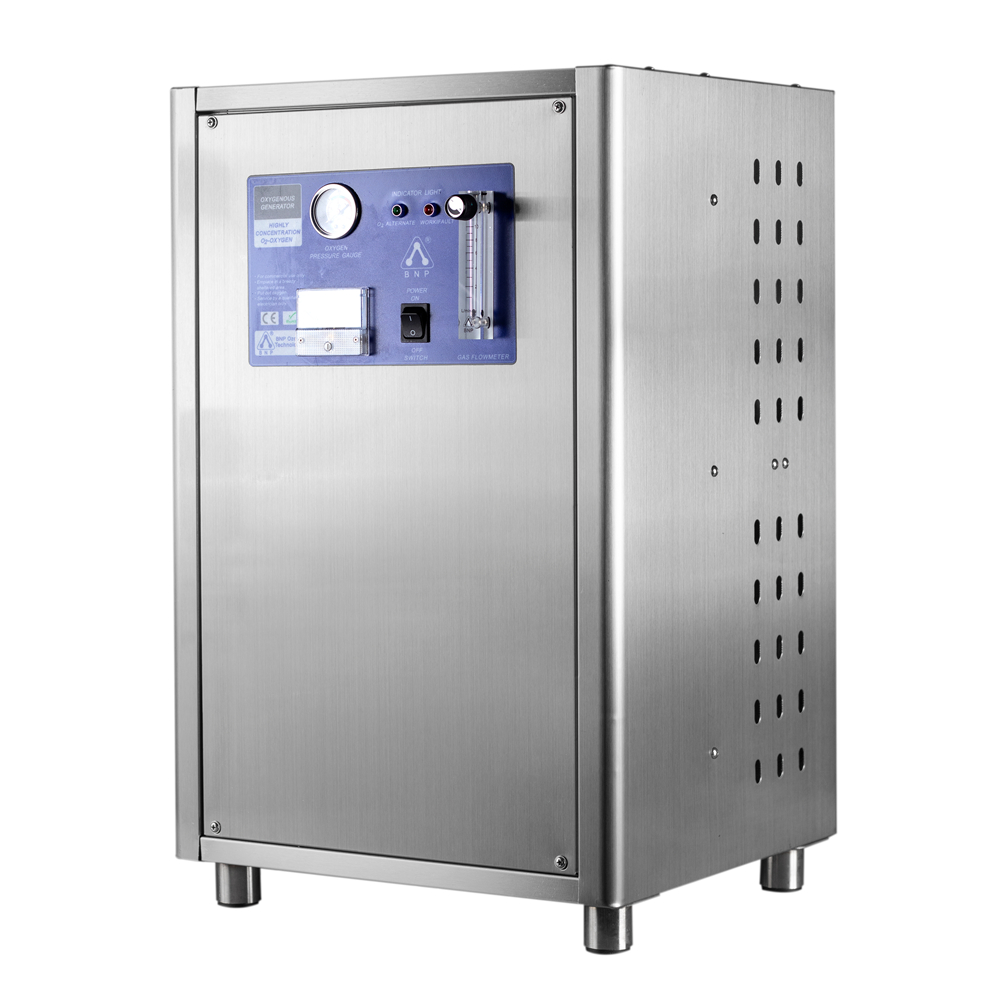

BNP OW-SERIES industrial PSA oxygen generator with air compressor
Manufacturing & Processing Machinery Water treatment & Environment
MOQ:1 Piece(s)
Payment Method : L/C T/T Western Union Others
Keywords:generator for aquaculture PSA oxygen generator industrial oxygen generator
| Product Category: | Manufacturing & Processing Machinery > Water treatment & Environment | Trademark: | BNP |
| Product Package: | Carton box+Wooden case | Specifications: | 530*530*855mm/630*470*1210mm |
| Place of Origin: | Guangzhou,China | Port: | Huangpu |
Product Detail:
This series of products use American zeolite molecular sieve adsorbent, separating oxygen from nitrogen in the air using pres sure swing adsorption (PSA) principle, and filter harmful substan ces in the air , so as to obtain a high concentration oxygen in line with medical oxygen standards. PSA oxygen generating equipm ent provide you with the purity of 90% ± 5 oxygen to meet all re quirements; Installation and operating costs far less than bottled or liquid oxygen.
Component:
1.Two sets of oxygen generation units(American UOP modular sieve)
2.Gas water separator
3.Solenoid valve(CKD and SMC from Japan, AIRTAC and SNS from Taiwan)
4.Switching board
5.ozone generator unit(based on the system size selection)
6.Oil free air compressor
Features:
1. Built-in oil-free air compressor, filtering system, oxygen concentrator and ozone generator,simple process, small volume.
2. PSA oxygen concentrator,highly automated, fast generation of oxygen, a single press on the switch can start or stop the equipment, and oxygen can be generated in 2 minutes.
3. Patented Ti-gold dehydroxylation quartz glass structure with long lifespan and high reliability and efficiency
4. Advanced large IGBT power supply module
5.Essential components from world-class brand,PSA five-way valve from SMC (Japanese brand).
6. Air source input with no additive required and lower power consumption which ensures lower total cost.Output stepless adjustable
7.Highly purified and convenient, output oxygen purity is only influenced by out put flow and can be adjusted in the range of 80%-95%.
8.The whole gas circuits work in low pressure which makes it safe and reliable.
9. Silent operation
10. Air cooling
Model Parameter | OW-2TB | OW-4TB |
Oxygen output | 3L-4/min | 4-5L/min |
Maximum oxygen concentration | 85%±5 | |
Output pressure | 0.8±0.2kg/cm2 | 1.5±0.3kg/cm2 |
Electrical power input | 220~240V, 50~60 HZ; 110V, 50~60HZ | |
Power | 400W | 600W |
Environment temperature | ＜40℃ | |
Environment humidity | ＜70% | |
Dimension（mm） | 420*400*650 | 420*400*650 |
Weight（kg） | 25 | 27 |
Model Parameter | OW-10TB | OW-20TB | OW-50TB | OW-100TB-B |
Oxygen output | 8L/min | 12L/min | 24L/min | 24L/min |
Maximum oxygen concentration | 90%±5 | |||
Output pressure | 2.0±0.5kg/cm2 | |||
Drying system | No | Inbuilt | ||
Electrical power input | 220~240V, 50~60 HZ; 110V, 50~60 HZ | |||
Power | 60W | 100W | ||
Environment temperature | ＜40℃ | |||
Environment humidity | ＜70% | |||
Dimension（mm） | 500*260*900 | 520*370*1200 | 770*500*1200 | |
Weight（kg） | 21 | 29 | 54 | 80 |
Application
