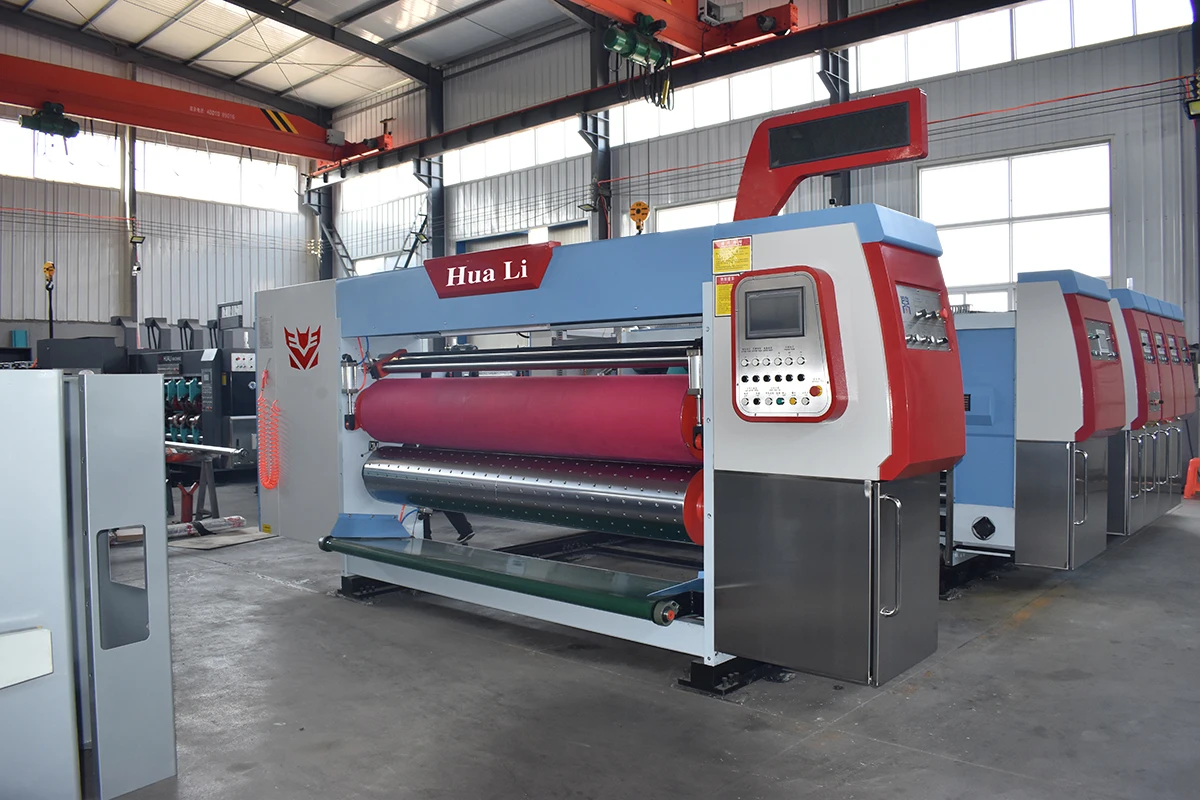

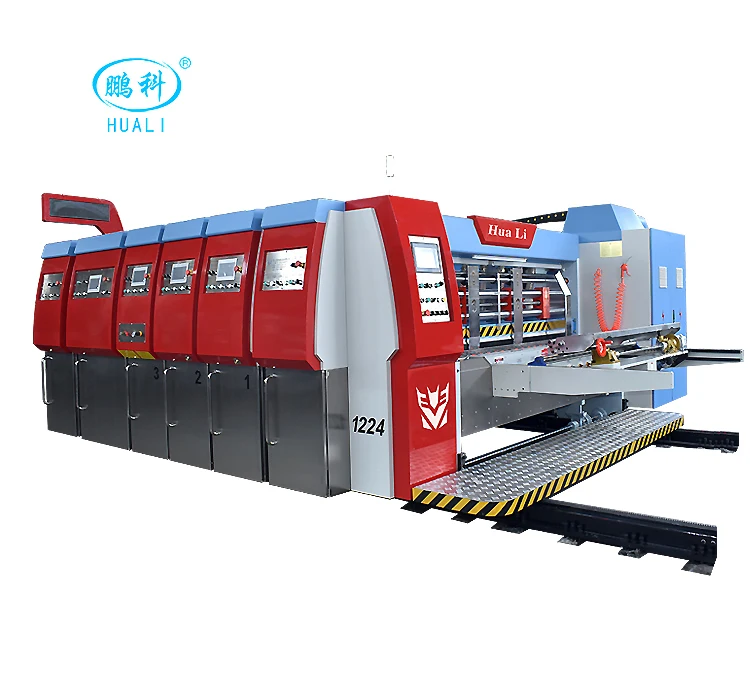

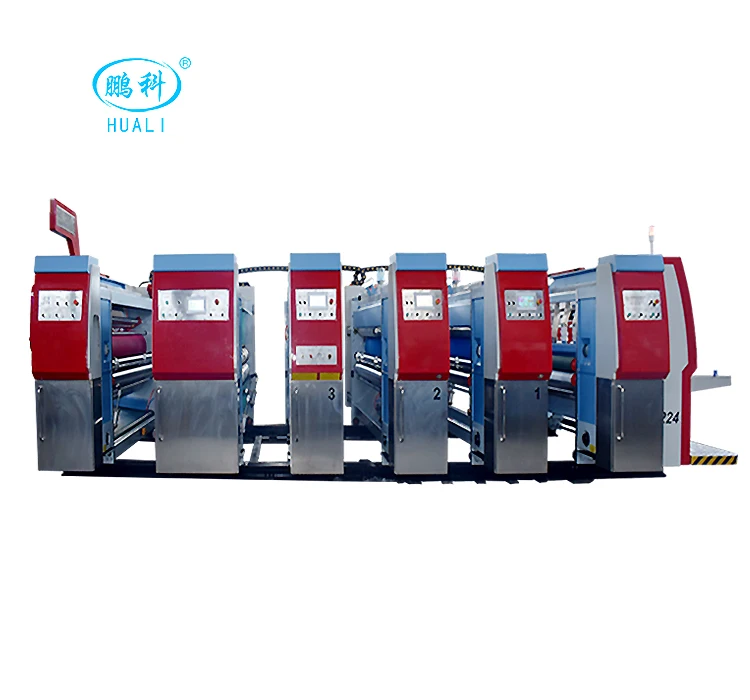

Fully Automatic Flexo 2 3 4 5 color Printing Slotting Die cutting Machine and Folding Gluing Machine
Manufacturing & Processing Machinery Corrugated carton packing machine
MOQ:1 Set(s)
Payment Method : L/C T/T D/P Western Union Paypal Money Gram Others
Keywords:Carton Printing Slotting Die-Cutting Machine corrugated printing machine carton box print slot machine carton box print machine carton box print gluer machine corrugated print slot machine carton print die cut machine box print machine box print die cutting machine carton box printing machine
| Product Category: | Manufacturing & Processing Machinery > Corrugated carton packing machine | Trademark: | Huali |
| Product Package: | Fully Automatic Flexo Printing Machine and Folding Gluing with Packing Machine for Cartoon factory for plastic film | Specifications: | HL-900*2000mm HL-1200*2400mm HL-1400*2600mm HL-1600*2800mm |
| Place of Origin: | Hebei | Port: | Tianjin Port |

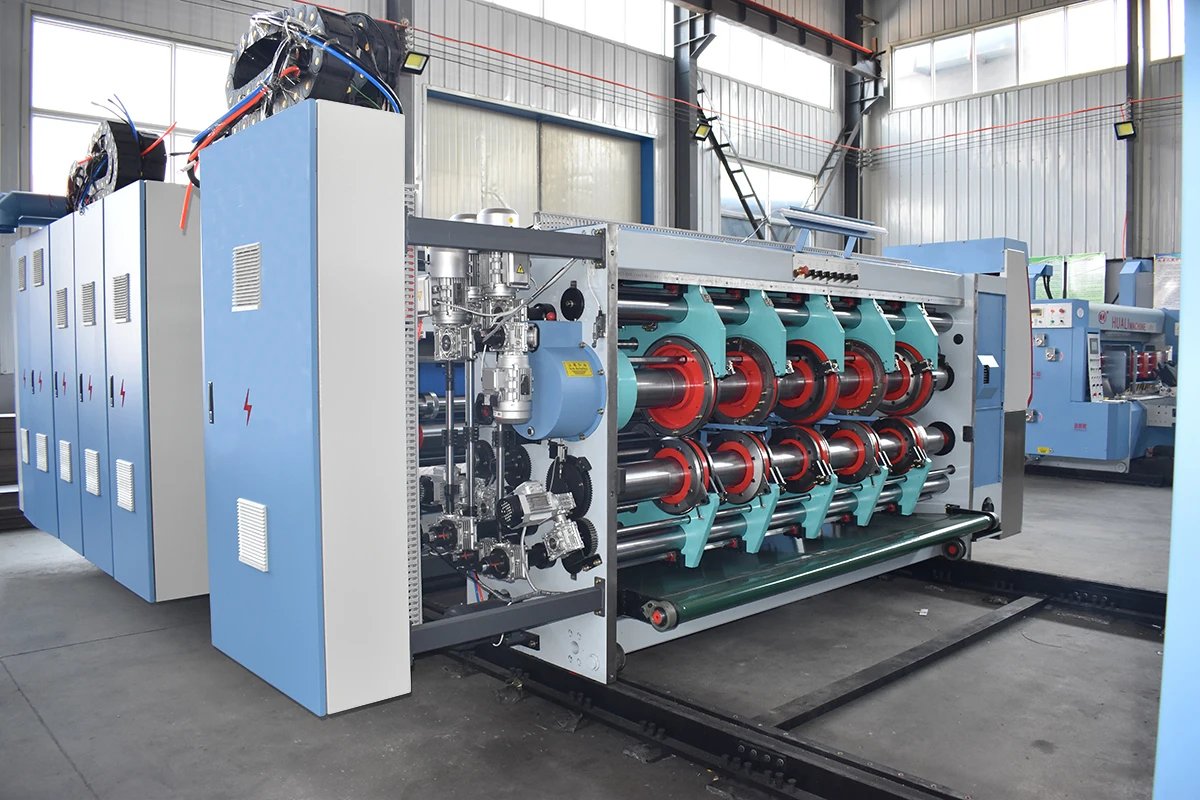

corrugated printing machine mini size, corrugated cardboard 4 colors printer&slotter&rotary die cutter
| name | corrugated printing machine mini size, corrugated cardboard 4 colors printer&slotter&rotary die cutter | |||
| 1 | Color group | to be configured according to user’s needs | ||
| 2 | Printing paper | A,B,C,A/B,B/C and A/B/C type corrugated paperboard (the maximum interval 11mm) | ||
| 3 | Width of machine inside | 2200mm | 2600mm | 2800mm |
| 4 | Max.paper size | 900×2000mm | 1200×2400mm | 1400 ×2600mm |
| 5 | Max.printing size | 900×1800mm | 1200×2200mm | 1400 ×2400mm |
| 6 | Skip feeding paper | 1100×2000mm | 1400×2400mm | 1600 ×2600mm |
| 7 | positive knife Min.paper size negative knife | 300×640mm 300×720mm | 350×720mm 350×740mm | 400 ×720mm 400 ×740mm |
| 8 | Printing plate thickness | 7.2mm | 7.2mm | 7.2mm |
| 9 | Design speed(piece/min) | 200pcs/min | 180pcs/min | 150pcs/min |
| 10 | Economic speed(piece/min) | 80-180pcs/min | 80-160pcs/min | 80-130pcs/min |
| 11 | Tinted precision | 4( color) ±0.5mm | 4( color) ±0.5mm | 4( color) ±0.5mm |
| 12 | Slotting precision | ±1.5mm | ±1.5mm | ±1.5mm |
| 13 | Max.slotting depth | 7 ×220mm | 7×300mm | 7×350mm |
| increase the blade, increase the slot depth | ||||
| 14 | positive knife Min. Slot distance negative knife | 150 ×150 ×150 ×150mm 250 ×90 ×250 ×90mm | 170×170×170×170mm 260×90×269×90mm | 260×90×269×90mm 260×90×269×90mm |
| 15 | Max.die-cutting size | 260×90×269×90mm | 260×90×269×90mm | 260×90×269×90mm |
| 16 | Printing plate diameter (contain plate thickness) | 260×90×269×90mm | 260×90×269×90mm | 260×90×269×90mm |
