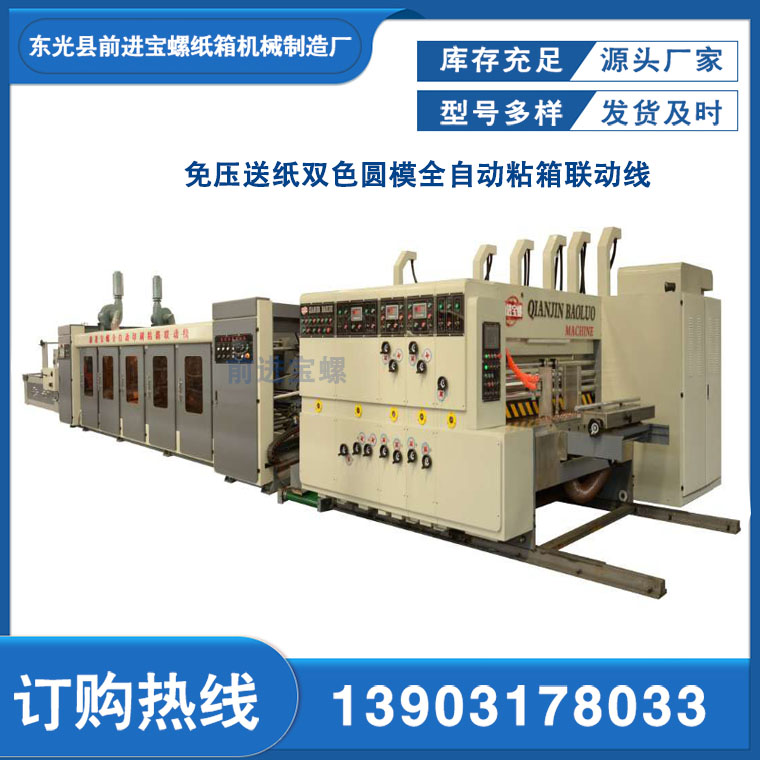

Configuration list for Free pressure paper feeding 2 colors printing die cutting auto folder gluer box linkage line machine

I. 主要技术参数 Main technical parameters

II. 具体配置 Detailed configuration

1. 送纸部： 独立前缘，轻压， 挡板气动拍齐；变频电机，变频风机。（根据客户需要，是否加送纸部）

Feeder part: Independent lead edge feeder, light pressure type, pneumatic flapping of the sheet baffles. Frequency converter motor, frequency converter fan.

2. 印刷部：版辊挂板（根据客户需求）， 送纸轮不用扳子调尺寸。相位仪控制，电动相位360°调整（运转、停止均可调整）。印刷辊电动横向调整距离为10mm,套印精度±0.5mm。

Printing part: Printing plate hanging groove for fast changing of the printing plate, no need use the spanner to adjust the feeding wheels size. Phase control, electrical positioning 360°（operate and stop adjustable）.Printing shaft electrical adjustment distance is 10mm,registering accuracy is ±0.5mm.

3. 电气： 德力西接触器，阿尔法变频器，信捷PLC，触摸屏昆仑通态。

Electrics appliance: Delixi contactor, Alpha frequency inverter, Xinjie PLC, Kunluntongtai  touch screen.

4. 版辊直径288mm，长2000mm,（最小过纸宽度220mmX500mm）

Printing roller diameter Ф288mm, length 2000mm, (min. Sheet size 220x500mm)

5. 网纹辊直径136mm,网线搭配目（可根据客户需求，如印满版用海力辊，效果更佳）。

Anilox roller diameter Ф136mm, mesh LPI as customer need (If print complete sheet with color, use Haili brand anilox roller, can reach better printing effect).

6. 匀墨胶辊直径140mm。

Ink distribution rubber roller diameter Ф140mm.

7. 整机总功率：10千瓦

Complete machine total power: 10KW.

8. 所有传动轴为钢管制成

All the transmission shafts are made of steel pipe.

9. 本机回墨斗为不锈钢材质，下回墨管直径40mm以防止堵塞

The returned ink tank is stainless steel material, down ink refill pipe diameter is 40mm to avoid blocking.

10. 本机所有传动齿轮为40烙磨齿制成，且轴头连接为涨紧套连接（涨紧套浙江产）

All the driving gears on this machine is 40Cr material with precise grinding, and the shaft head is expansion sleeve connection (from Zhejiang).

11. 送纸前缘部，前缘为轻压 前缘送纸轮为排轮，进纸轴为排轴（防止纸板横线部分打滑）， 除胶轮外，前言保三年。

Automatic lead edge feeder is light pressure type, feeding wheels in rows, feeding shafts in rows can avoid the sheets sliding in feeding, except the rubber wheels, this feeder has 3 years warranty.

12. 本机所有调整杆都为冷拔电镀钢

All the adjusting rods on this machine are cold-drawing electroplating steel.

13. 所使用轴承为：哈尔滨等知名品牌

Bearings brand: Ha’er bin brand.

14. 润滑系统为：封闭式双油泵供油及回油，确保各机组油量平衡

Lubrication system: Closing type dual oil pump for oil supplying and returning, make sure the oil level is balancing and same in each machine unit.

15. 主电机为10千瓦变频调速，风机变频调速，电量4.0千瓦

Main motor is 10kw frequency speed governor, fan frequency speed governor 4kw.

16. 本机操作自动化为：采用气动供墨，墨辊与印版自动着墨与脱离，自动匀墨，电子眼计数器，电动相位并配有微电脑控制调整，(各机组配有主机正反电动（调机速度快），各印刷组下横梁处配有脚踏开关，这项必须加版辊挂板）开槽固定组配有各组相位调整及控制主机速度，前缘组配有总锁紧功能，前后配有照明灯等人性化配置。

This machine is automation control: adopt pneumatic ink supplying, anilox roller and printing roller automatically touching with ink and separation, automatic ink distribution, electronic eye counting, electrical phase and equipped with micro computer control, each unit with host obverse and reverse electrical adjustment, more faster, equip with foot pedal under each unit, slotter unit with phase adjustment and can control complete machine speed, on feeder unit with general locking function, in front and back of machine has illumination for easy and convenient working, humanization.

17. 气动抬板.气动锁紧。电动相位。电动分体。喷淋润滑

Pneumatic printing plate lifting up and down, pneumatic locking, electrical phase adjustment, electrical units separation and combination. Spray lubrication.

18. 电器面板选用不锈钢

Stainless steel material electrics operation panel.

19.圆压圆模切胶垫选用意大利奥斯丁、圆模使用寿命800万次、圆模辊配有四个万能模切、解决大众箱开口、免做模板降低使用成本，

Anvil cover for rotary diecutter is Italy Austin brand, lifetime is about 8millions time cutting, on the diecutting roller equipped with 4 slotting attachment for common cartons slotting, no need make wooden die, can save cost.

20.本机由 送纸。印刷、圆压圆一次成型、适用于不同的小箱子、一次成型，最薄纸板厚度1.5毫米、最厚纸板厚度8毫米.

This machine composed with paper feeding.  printing, die-cutter. Suitable for different small boxes, one-step forming, the thinnest cardboard thickness is 1.5mm, the thickest cardboard thickness is 8mm.
