Insertion Type SC / UPC 1X32 19 Inch Fiber Optic Splitter for Fiber Network FTTH

Electronics and Communications communication device

FOB Price:US$ Customizable price / Piece(s)

MOQ:1 Piece(s)

Payment Method : T/T

Keywords:1 x 32 splitter 1 * 32 splitter rack mount splitter fiber optic network network FTTH insertion loss return loss draw out splitter

Inquire


Add to Favorites

Product Category: Electronics and Communications > communication device Trademark:
Product Package: Carton Specifications: 1 x 32
Place of Origin: Port: China

Insertion Type SC / UPC 1X32 19 Inch Fiber Optic Splitter for Fiber Network FTTH





Details

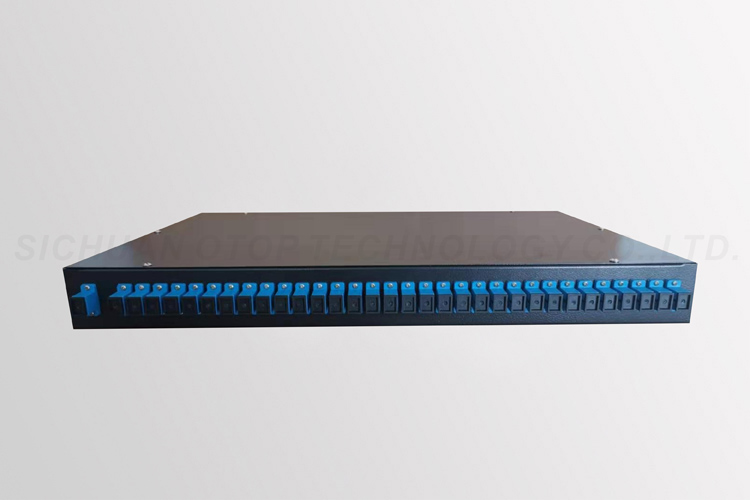

1x32 19 inch Rack mounted PLC Splitter,SM fiber,fiber optic cable OD:0.9mm pigtail,1m length, with SC/UPC connector.



Fiber Optic PLC (planar lightwave circuit) splitter is fabricated by using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in PON networks to realize optical signal power management. We provide a whole series of 1 x N and 2 x N splitters that are tailored for specific applications. All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network development requirement.





Specification



ParameterUnit1x21x41x81x161x321x64
Premium Grade
Insertion Loss at 23°CMax. dB4.07.010.413.516.820.5
Channel UniformityMax. dB0.60.81.01.41.62
PDLMax. dB0.20.30.30.30.30.5
Standard Grade
Insertion Loss at 23°CMax. dB4.27.310.613.817.120.8
Channel UniformityMax. dB0.60.81.01.41.62
PDLMax. dB0.20.30.30.30.30.5
Operating Wavelengthnm1260~1650
Return LossMin. dB60(Premium Grade) / 55( Standard Grade)
DirectivityMin. dB55
Operating Temperature°C-45 to +85
Storage Temperature°C-45 to +85
Fiber Type-G657A or Customized
Basic Type PLC Splittermm4x4x404x4x504x7x554x12x60
900um Fan-out Type PLC Splitter4x4x404x4x504x7x554x12x60
900um SFF Type PLC Splitter4x7x504x7x554x12x606x20x806x40x100
Cassette Type PLC Splitter10x80x10018x80x12018x115x140
Rack Type PLC Splitter Module482x240x45 (19 inch 1U)2U
Flat Quick-Connect Termination Type PLC Splitter Module130x100x25130x100x50130x100x76
130x100x102		130x100x154
130x100x206





Features



- Good uniformity and low insertion loss

- Low Polarization Dependent Loss

- Excellent Environmental Stability

- Excellent Mechanical

- Stability Telcordia GR-1221 and GR-1209





Quality Control



1. Material incoming inspection
2. Full check after every individual process finished
3. Full check after production half-done
4. Full check before packing
5. Spot examination after production





Our Service



- Professional manufacturer, 100% tested.

- Customers solutions in days, not weeks.

- Warmly services with careful attentions.

- Can provide your specific inquiry within 24 hours.

- Save much costs, bring more benefit for customer to expand business.

- We have 12 years experience in this field. We are the professional supplier that you can
