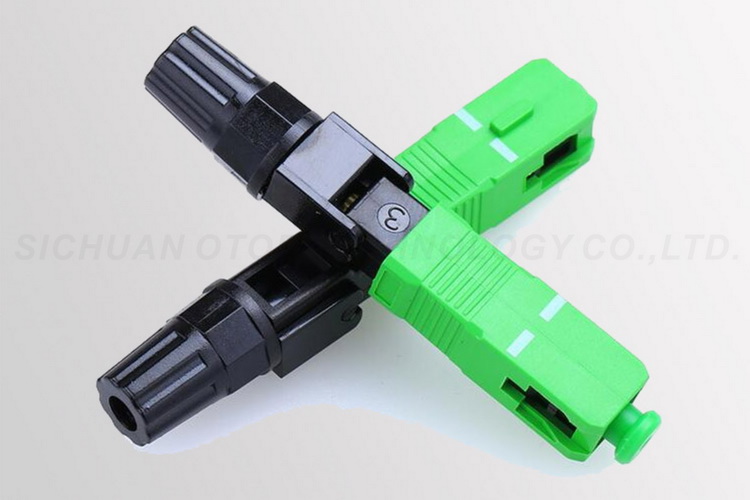

FTTX SC / APC Fast Connector 50mm 60mm Length

Electronics and Communications communication device

FOB Price:US$ Customizable price / Piece(s)

MOQ:1000 Piece(s)

Payment Method : T/T

Keywords:Fast connector Field connector SC/APC connector FTTX fast connector

Add to Favorites

Product Category: Electronics and Communications > communication device Trademark:
Product Package: Carton Specifications: 50mm SC/APC
Place of Origin: Port: China

FTTX SC / APC Fast Connector 50mm 60mm Length ROHS Certification




More information


Our Fast Connector series connectors are now available in FC, SC and LC variants, catering for 250um to 900um diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with PC or APC ferrules.
This Fast Connectors feature a pre-stubbed factory-polished ferrule that couples to the fiber being terminated. Precision mechanical alignment insures low loss with a proprietary gel.
Connector Type: SC/APC
Fiber Application: Singlemode
Fiber Type: Simplex
Number of Fibers: 1





Specification:


- Model APC model
- Connector Type SC/APC
- Fiber diameter 0.125mm
- Fiber Mode Single
- Insertion Loss <0.5dB (typical 0.2dB)
- Return Loss >50dB
- Tensile strength >20N
- Temperature -40oC-+70oC
- Temperature cycling IL<0.3dB,RL<5dB




Product nameFiber optic Fast ConnectorConnecterSC/APC
Insertion Loss≤0.3dBReflection Loss≥50dB
Inner Box Size200*160*90mmInner Box Quantity200pcs
Mother Carton480*350*240mm/10.5kgMother Carton Quantity2000pcs



Packing


- Blister & Carton









Contact Name: Miss Amy Xiao Contact Email: je****y@otoptechnology.com
Contact Job Title: Manager Contact Mob: 153***820
Contact Tel: Contact Fax:
Address: Mianxing Rd, 133, High-technical Zone, Mianyang, Sichuan Website: www.fiber-opticplcsplitter.com

Mission Statement



Otop Technology’s mission is to provide FTTx series products that give our customers a competitive advantage. To accomplish this we continually invest in growth of our employees and in our company’s capabilities.


What we do



Otop Technology engineers and manufactures high quality FTTx series products. We work closely with both Fortune 500 telecommunication carriers and internet server providers of all sizes to understand their application requirements and provide a standard or, in most of cases, a customer-engineered solutions to enable the success of their design project. Since the beginning, our engineering and production teams have continued to develop enabling technologies and products for FTTH, FTTx telecommunication market.





Our dedicated, full-service engineering department truly partners with our customers. We love challenges and work to provide all fiber optic products for fiber to the home solutions. Experienced engineers with expertise in fiber optic telecommunications are available to assist you with your concept and detailed design. Our engineering design service is free of charge in most cases. We love what we do and are eager to share our knowledge and passion with our customers.





Otop Technology main products include fiber optic PLC splitter, Patchcord, rack mounted patch panel, MPO, pigtail, WDM splitter, fiber optic fast connector, fiber optic cable, joint enclosure, attenuator, fiber optic distribution box, terminal box and FTTx fiber optic tools, etc. We have been providing one-stop solution for hundreds of high-end customers.
