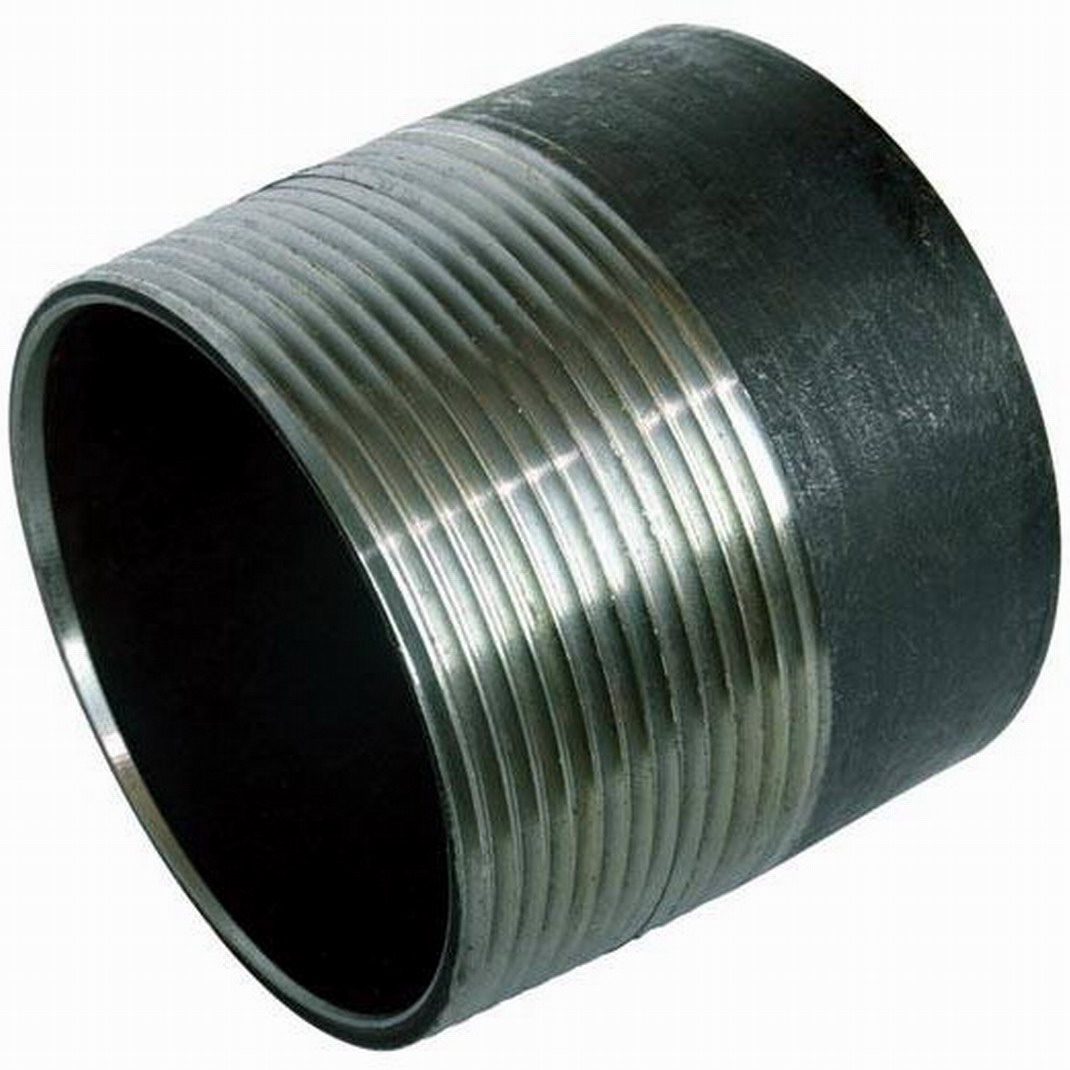

Black/Galvanized Carbon Steel Pipe/Barrel/King/Close/Hose Nipple
Construction & Decoration Building Structural Material
MOQ:1000 Piece(s)
Payment Method : T/T D/P
Keywords:Carbon steel Nipple
| Product Category: | Construction & Decoration > Building Structural Material | Trademark: | |
| Product Package: | Carton | Specifications: | 1/2“-6” |
| Place of Origin: | Hebei | Port: | Tianjin xingang |
| Material | Carbon steel nipple |
| O.D. | 1/8”-6” |
| Length | 3/4”-24”; 19mm-500mm; Or as per customer’s request |
| Thickness | SCH10 SCH20 SCH40 SCH80 SCH160; CLASS A, CLASS B, CLASS C |
| Surface | Hot Dipped Galvanized, Electro Galvanized, Natural finished, Chemical black |
| Threads | DIN, BS, NPT |
| Type | Close Nipple, Short Nipple, Shoulder nipple, Long Nipple, Running Nipple, Barrel Nipple etc |
| Usage | Convey Water, Oil, Gas, Steam and so on |
| Mechanical Properties | Tensile Strength ≥ 320N/mm2 |
| Yield Strength≥ 195N/mm2 | |
| Elongation ≥20% | |
| Hydraulic Test | Working Pressure: Max 1.5MPa |
| Test Pressure: Max 2.5MPa | |
| Temperature | -20 ~ 120 °c |
| NIPPLES BS1387 NIPPLES(Steel Pipe Standard BS1387 Thread Standard BS21) | ||||||||||||||
| Nominal diameter in inch | inch | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" | 5" | 6" |
| Nominal diameter in mm | mm | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 |
| Close Taper Nipple in mm | mm | 27 | 28 | 37 | 39 | 46 | 51 | 51 | 60 | 69 | 75 | 87 | 96 | 96 |
| Barrel Nipple in mm | mm | 38 | 38 | 51 | 54 | 60 | 70 | 70 | 79 | 89 | 102 | 114 | 124 | 127 |
| Series of Length(mm) | 100 | x | x | x | x | x | ||||||||
| 150 | x | x | x | x | x | x | x | x | x | |||||
| 200 | x | x | x | x | x | x | x | x | x | x | ||||
| 250 | x | x | x | x | x | x | x | x | x | x | x | |||
| 300 | x | x | x | x | x | x | ||||||||
| 400 | x | x | ||||||||||||
Q: Are you trading company or manufature?
A: we are trading company, and factory
Q: How long is your delivery time?
A: Generally it is 10-30dasys to make fresh
Q:Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight
Q: What is your term of payment
A: payment <=USD10000, 100% in advance. Payment > USD10000, 30% T/T in advance, balance upon receipt of B/L copy by email or fax.
If you have another question, please feel free to contact us as below.
| Contact Name: | Mrs Sherry Guo | Contact Email: | sa****s@amsteels.com |
| Contact Job Title: | Sales Manager | Contact Mob: | 198***943 |
| Contact Tel: | 0086-31166690778 | Contact Fax: | 0086-31166690778 |
| Address: | A1113 ZHUODA ZHONGYUAN BUSINESS MANSION, NO. 88 HUAIAN WEST ROAD, SHIJIAZHUANG, CHINA | Website: | http://www.hbperfectmetal.com |
We are a well experienced and leading company in the field of pipe, flange, valve, fittings, stainless steel plate and etc. Our products are mainly exported to Africa, Middle East and South America, for more than 20 countries. Widely used in various pipelines to convey gas, water, oil and so on, which are designed, manufactured and tested in strict compliance with the standards of API, ANSI, DIN, BS, JIS, ISO.
Our company has a flange factory with annual capacity 2000tons, and a pipe & fittings processing factory with annual capacity 20000 tons. Also we have a joint wenture factory for valve and we are the first grade agent for some building material.
