380S design speed: 200 m/min 405 s design speed: 220 m/min effective width: 1400 mm - 2500 mm stare blankly roller phi 380 mm。

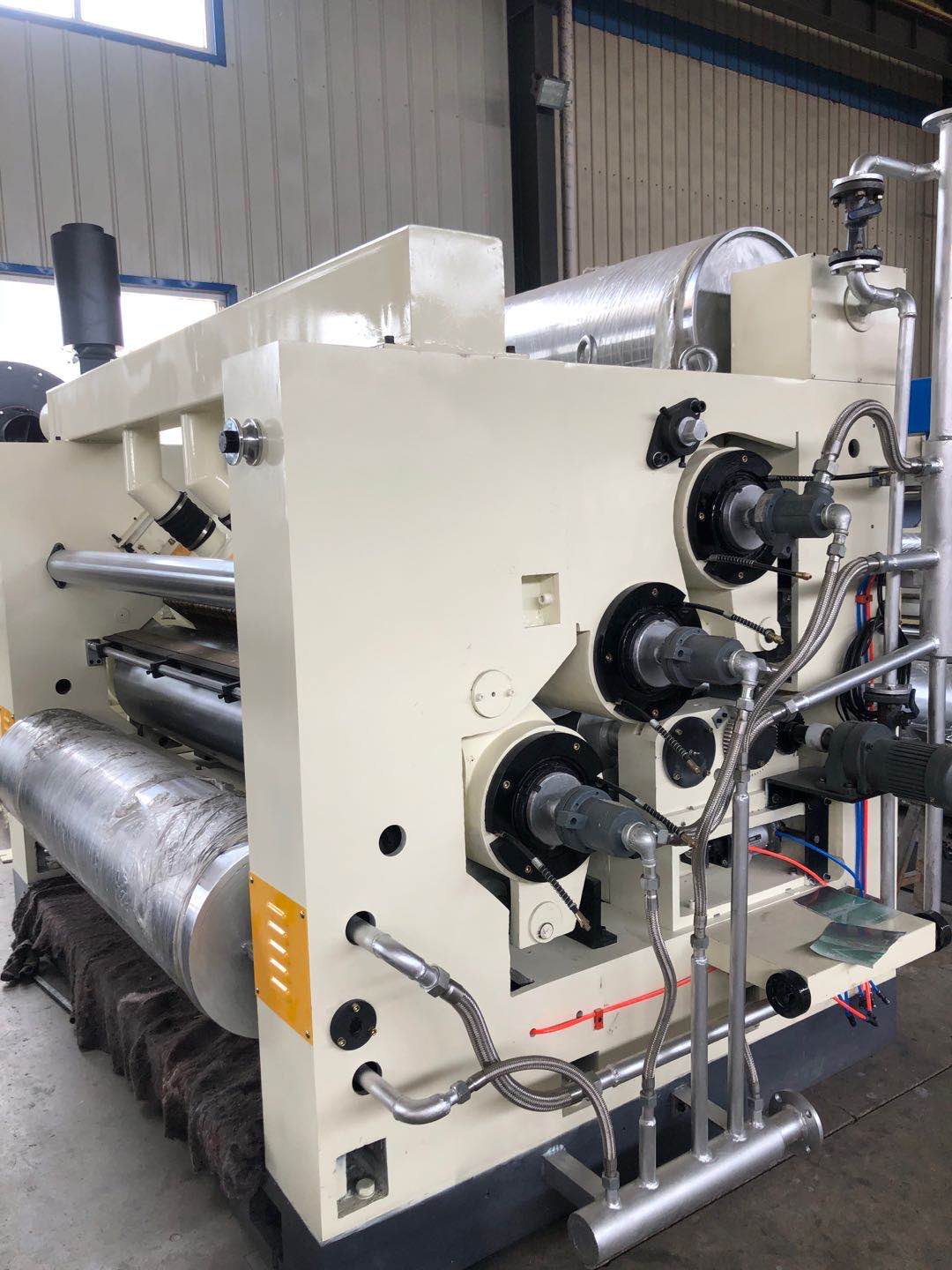

Vacuum adsorption type single face corrugated machine. 52 crmo ?uctuation corrugated roller is made of high quality alloy steel, after

heat treatment hardness HRC58-60 °, polishing and chrome plated on the surface treatment.

Inside the machine is equipped with surface paper preheat roll and core paper modulation jet device.

Corrugated roller up and down separated from the engine design, can change integral hoisting, convenient change stare blankly.

Coating design group and set the paste roller guide rail sliding tear open out?t, shorten the maintenance time.

On the corrugated roller, pressure roller and glue roller lift with pneumatic control.

Main drive, frequency conversion motor drive box independently, three axis transmission, corrugated machine is controlled by inverter, deceleration, communication interface to achieve energy saving more production management in the future.

Closed gear oil bath lubrication, reduce noise, smooth operation, prolong the

service life of gear.

The use of electric isolation device, glue on the host stops independent operation, to prevent the paste dried up, electric adjustment digital display amount.

Top and bottom corrugated roller and pressure roller bearing adopts high temperature grease, to ensure the bearing life, smooth operation.
