SWING CHECK VALVE
Construction & Decoration Piping and valves
MOQ:100 Piece(s)
Payment Method : T/T
Keywords:CHECK VALVE SWING CHECK VALVE cast steel valve valve
| Product Category: | Construction & Decoration > Piping and valves | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | XINGANG |

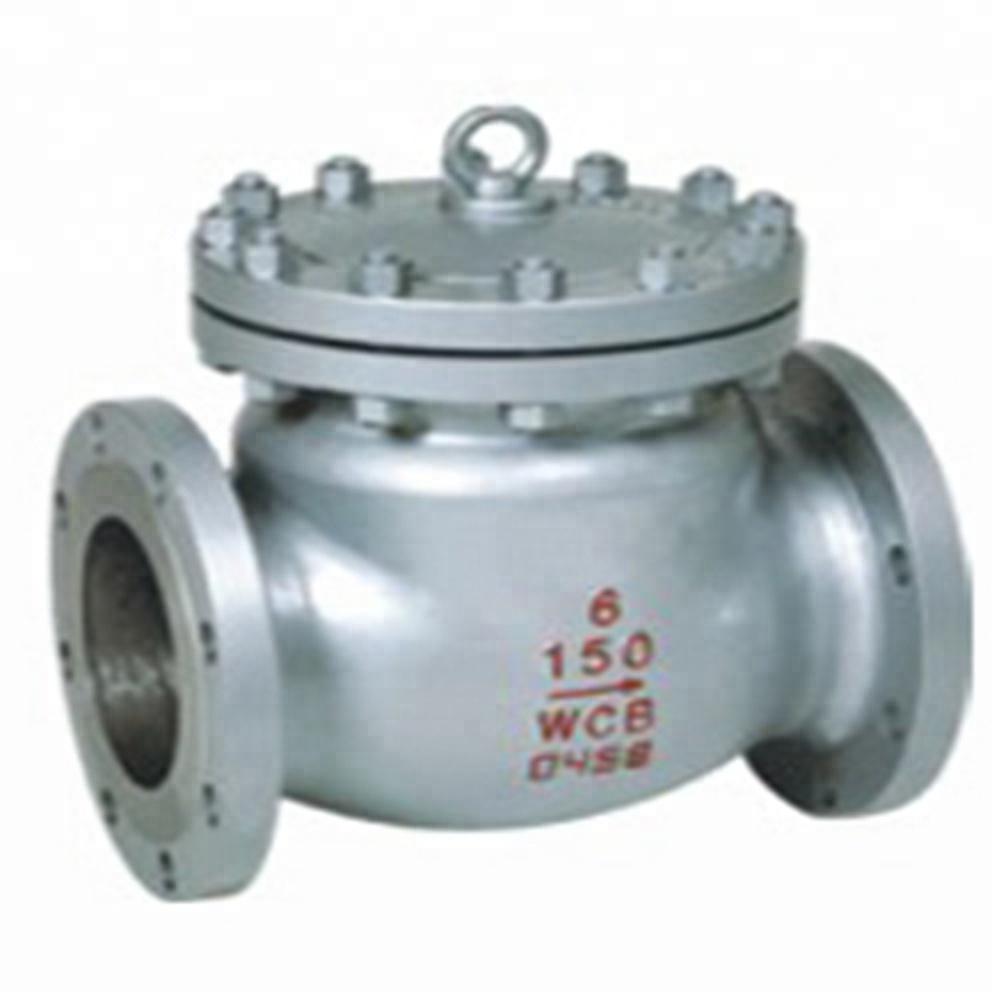

The swing check valve
The swing check valve is used to prevent back flow in the line. Flow is in a straight line through the valve resulting in minimal pressure drop. The disc swings into the open position as the media flows through the line. Back pressure in the line holds the disc in the closed position. Swing check valves may be installed in horizontal or vertical lines, but must be installed in proper relation to the media flow as indicated by the flow direction arrow marked on the body.
A)Material Specification:
1)Body & Cover: WCB, LCB, WC1, WC6, WC9, C5, C12, CF3, CF3M, CF8, CF8M.
2)Seat Ring: A105, LF2, F304(L), F316(L), F51,
3) Hinge & Disc: WCB, LCB, WC1, WC6, WC9, C5, C12, CF3, CF3M, CF8, CF8M 4)Hinge Pin: F6, F304(L), F316(L),
B)Size Range and Pressure Ratings: 2" ~ 24" (DN50 ~ DN600); 150LB ~ 2500LB4.
C)Standards: API 6D, BS1868, ASME B16.34, ASME B16.5, ASME B16.25, ASME B16.10, MSS SP25
Q: Are you trading company or manufature?
A: we are trading company, and factory
Q: How long is your delivery time?
A: Generally it is 10-30dasys to make fresh
Q:Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight
Q: What is your term of payment
A: payment <=USD10000, 100% in advance. Payment > USD10000, 30% T/T in advance, balance upon receipt of B/L copy by email or fax.
If you have other questions, please feel free to contact us.
