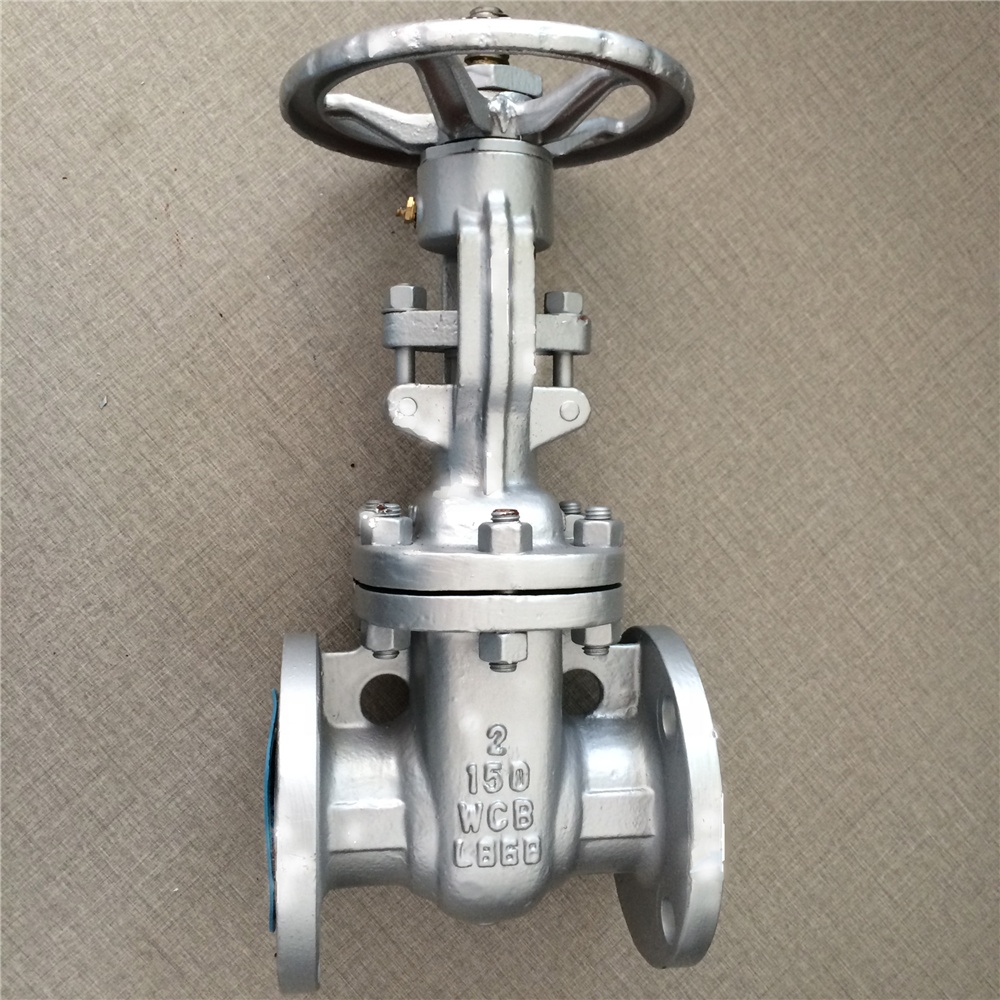

cast steel gate valve
Construction & Decoration Piping and valves
MOQ:100 Piece(s)
Payment Method : L/C T/T D/P Western Union Paypal Money Gram Others
Keywords:GATE VALVE cast steel gate valve valve
| Product Category: | Construction & Decoration > Piping and valves | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | XINGANG |
Gate valve
A gate valve, also known as a sluice valve, is a valve which opens by lifting a round or rectangular
gate/wedge out of the path of the fluid.
The distinct feature of a gate valve is the sealing surfaces between the gate and seats are planar,
so gate valves are often used when a straight-line flow of fluid and minimum restriction is desired.
A)Material
1) Body & Bonnet : WCB, LCB, WC1, WC9, C5, C12, CF8, CF8M, CF3, CF3M,
2) Seat Ring: A105, LF2, F304, F316, F304L, F316L, F51
3) Wedge: WCB, LCB, WC1, WC9, CF8, CF8M, CF3, CF3M,
4) Stem & Gland: F6, F304, F316, F51, F304L, F316L; Bolts & Nuts : B7/2H B8M/8M
5) Hand wheel: Cast Iron, Carbon Steel, Stainless Steel
B) Size and Pressure Ratings:
1/2" ~ 48" (DN15 ~ DN1200); 150LB ~ 2500LB
C) Standards: API 6D, ANSI B16.34, API600, API603, BS1414, DIN3352-F4
D) Working temperature: -196°C -565°C
E) Suitable medium: Water, steam, Oil, Gas, Nitric acid, acetic acid
No. | Part | Material | German Standard |
1 | Body | Cast Iron | Din1691 Gg25 |
2 | Seat Ring | Cast Bronze | DIN1705 G-cusn5znpb |
3 | Wedge Face Rings | Cast Bronze | DIN1705 G-cusn5znpb |
4 | Wedge | Cast Iron | Din1691 Gg25 |
5 | Wedge Nut | Cast Bronze | DIN1705 G-cusn5znpb |
6 | Stem | Stainless Steel | DIN17224 X20cr13 |
7 | Body Gasket | Grphite | |
8 | Nuts | Steel | Din Rrst37-2 |
9 | Bolts | Steel | Din Rrst37-2 |
10 | Bonnet | Cast Iron | Din1691 Gg25 |
11 | Gasket | Grphite | |
12 | Nuts | Steel | Din Rrst37-2 |
13 | Bolts | Steel | Din Rrst37-2 |
14 | Packing | Grphite | |
15 | Packing Gland | Cast Iron | Din1691 Gg25 |
16 | Packing Gland Nut | Cast Brass | DIN1705 G-cusn5znpb |
17 | Handwheel | Cast Iron | Din1691 Gg25 |
18 | Identification Plate | Aluminium | |
19 | Washer | Steel | Din Rrst37-2 |
20 | Handwheel Bolt | Steel | Din Rrst37-2 |
Q: Are you trading company or manufature?
A: we are trading company, and factory
Q: How long is your delivery time?
A: Generally it is 10-30dasys to make fresh
Q:Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight
Q: What is your term of payment
A:
payment <=USD10000, 100% in advance. Payment > USD10000, 30% T/T
in advance, balance upon receipt of B/L copy by email or fax.
If you have other questions, please feel free to contact us.
