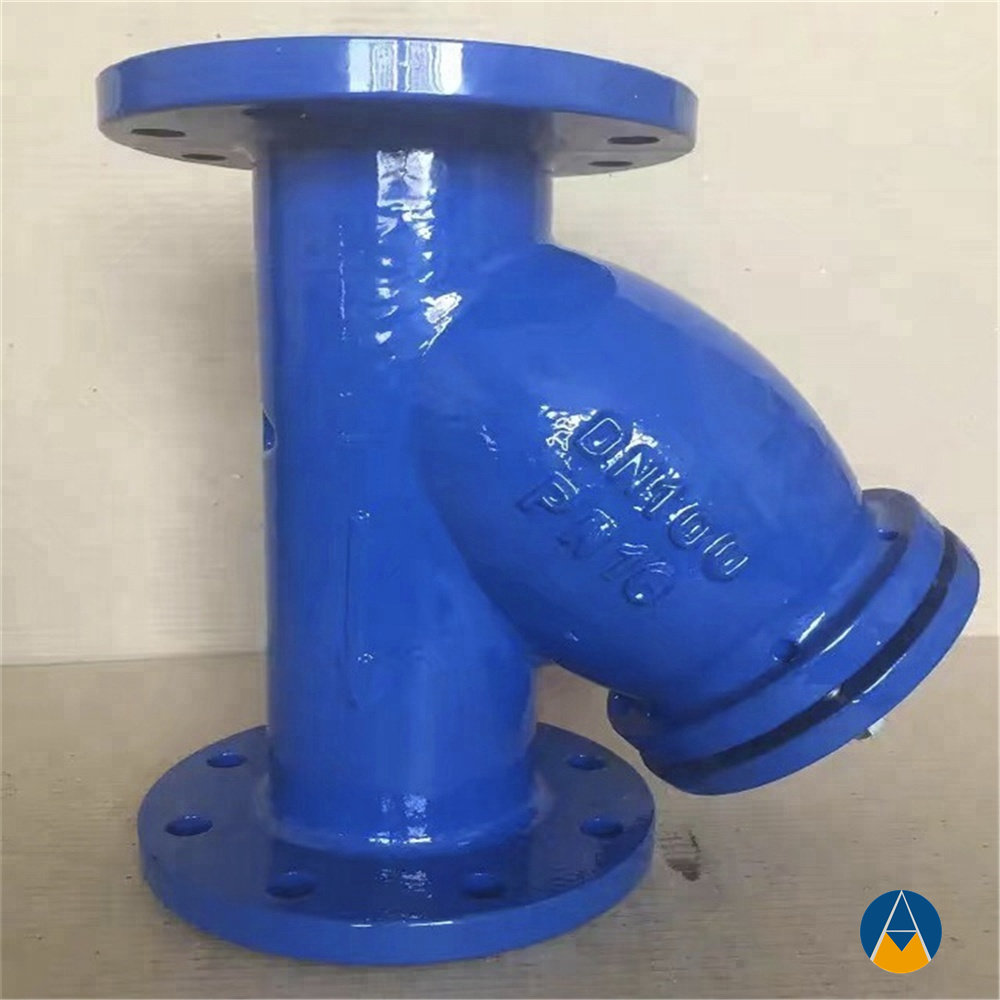

CAST IRON Y STRAINER
Product introduction
Flange Y-type strainer
Y-type
filter is a indispensable device in transmission pipeline system,
usually installed inlet in pressure reducing valve, pressure relief
valve, water valve and other device, the valve is used to remove
impurities in order to protect the valve and equipment in normal use.
Product Advantage
Size:1/2"--18"
Material: cast iron,WCB,stainless steel 304(CF8)
Pressure: Class 150
Connection:Flange
Temperature range: ≤250℃
Applicable Media:water,oil
Adoptive Standards
Valve Design: DIN3352
Face To Face: DIN3202, BS2080
Flange Drilling: DIN2531/2/3, BS4504
| NO | Part | Material |
| 1 | Body | Ductil Iron |
| 2 | Screen | Stainless Steel |
| 3 | Body Gasket | Graphite |
| 4 | Cover | Ductil Iron |
| 5 | Bolts | Steel |
| 6 | Plug | Steel |
Dimensions(mm)
| DN | L | D | D1 | D2 | b | f | n-do | H | PN |
| 40 | 200 | 150 | 110 | 84 | 19 | 3 | 4-19 | 212 | PN10/16 |
| 50 | 230 | 165 | 125 | 99 | 19 | 3 | 4-19 | 235 | |
| 65 | 290 | 185 | 145 | 118 | 19 | 3 | 4-19 | 255 | |
| 80 | 310 | 200 | 160 | 132 | 19 | 3 | 8-19 | 288 | |
| 100 | 350 | 220 | 180 | 156 | 19 | 3 | 8-19 | 342 | |
| 125 | 400 | 250 | 210 | 184 | 19 | 3 | 8-19 | 376 | |
| 150 | 480 | 285 | 240 | 211 | 19 | 3 | 8-23 | 422 | |
| 200 | 600 | 340 | 295 | 266 | 20 | 3 | 8-23 | 510 | |
| 250 | 730 | 405 | 350 | 319 | 22 | 3 | 12-23 | 615 | |
| 300 | 850 | 460 | 400 | 370 | 24.5 | 4 | 12-23 | 705 |
