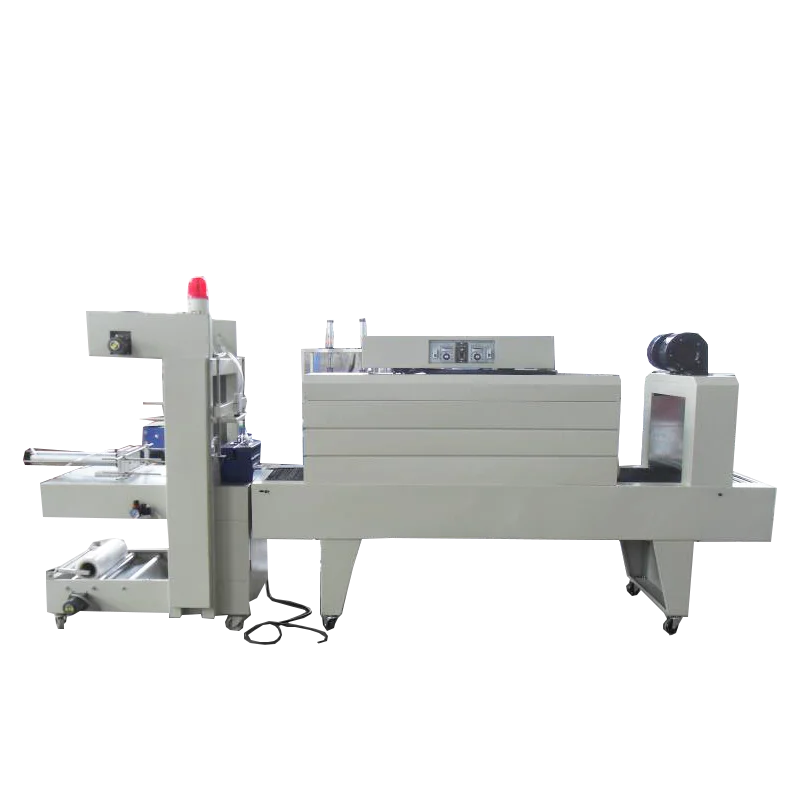

Pe Film Wrapping Machine Shrink Wrapping Machine

Manufacturing & Processing Machinery Packaging & Printing Machine

FOB Price:US$ 7,500.00 / Set(s)

MOQ:1 Set(s)

Payment Method : L/C T/T D/P Western Union Others

Keywords:Shrink Wrapping Machine Wrapping Machine  Manual Shrink Wrap Machine

Add to Favorites

Product Category: Manufacturing & Processing Machinery > Packaging & Printing Machine Trademark:
Product Package: wooden case Specifications: full automatic
Place of Origin: Port: Shanghai

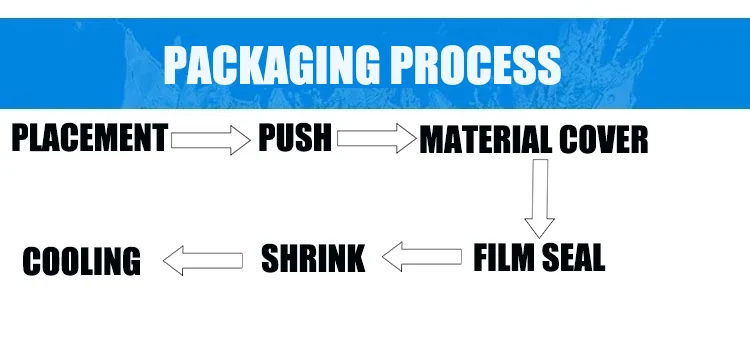

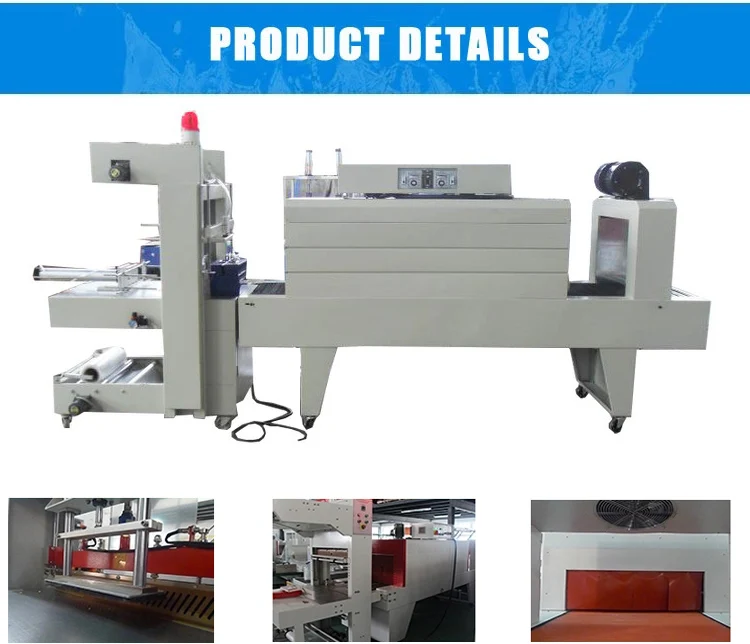

Bottle Accurate Control Semi-automatic Shrink Wrap Packaging Machine





1 Placement:

The packaging enters the working platform of the sealing machine, and the working platform is equipped with an adjustable guardrail. After the package is placed in the set position.

2. Pushing:

 After the package is placed on the pushing platform, the start button push cylinder works simultaneously to push the package through the sealing and cutting line.

3. Cover film sealing:

The package pushed through the sealing and cutting line is pressed by the pressing device set up above to prevent it from falling. After the pushing cylinder is retracted, the film sealing cylinder and the film cutting cylinder work simultaneously to seal the film.

4. Shrinking:

 After finishing the filming, the package enters the shrinking furnace to shrink.

5. Cooling:

After the packaging is finished shrinking, it enters the auxiliary rack and waits for stacking after the cooling device installed at the end of the machine.

Model

XSQ-A3000-I

Equipment dimensions:

Shrinking furnace L2500*W820*H1680mm

 Machine head L1400*W850*H2000mm

Furnace size: 1500x500x450mm

Diameter of equipment

L450×W270×H330mm

Shrink film material

PE

Shrink film thickness

   0.03-0.12mm

Sealing knife width

600mm

Maximum temperature of

 heat shrinkable furnace

10-200° arbitrary adjustment

speed

0-6b/m

Power

  18KW

Actual power consumption

  10Kw/h

Voltage

  380/220V

Weight

  400kgs








Contact Name: Mrs Lemon Liu Contact Email: ma****r@shfillingmachine.com
Contact Job Title: Founder Contact Mob: 139***957
Contact Tel: Contact Fax:
Address: Website: http://www.shfillingmachine.com
Shean ( Cangzhou) Corp Ltd which has more than 20years, the company is growing up time by time in research and design, quality and production, sales and after sale service. Our machineries are sold to more than 50 countries and over cross domestic. We specialize in producing beverage, paste, beer, oil, milk, Bird's nest filling-packing equipments ,water treatment equipments. Aseptic carton packaging machine, manual liquid filling machine. The quality already pass drinkable standard. At present we produce: production lines for mineral water, pure water, fruit juice,tea drink,milk drink and carbonated drink with capacity 1000-20000bottles/hour; production lines for vinegar, soy sauce and wine 1000-20000bottles/hour; 3-5 gallon barreled water with capacity 60-1200 barrels per hour and water treatment plants 1-30 ton/hour; Aseptic carton packing machine 2400ctn/h, 3500ctn/h. We provide separate machinery or turnkey project. Our products pass quality inspection executed by Bureau of Quality and Technical Supervision every year. We pass Italy CE inspection in 2011. We have full-time development and design engineer team, we absorb technologies from Germany, Japan, France, Italy, Switzerland, combined with international technologies to develop high starting point and advanced technology filling equipments, degree of automation to achieve the advanced level. We own 3700 square meters modern factory in accordance with ISO9001: 2000 certification system standards with all kinds of advanced processing equipment and testing equipment, experienced technicians, scientific and strict management, all constitute SHEAN excellence in product manufacturing system, which provides the professional protection for SHEAN product quality. We believe in Shean future while you choose us!
