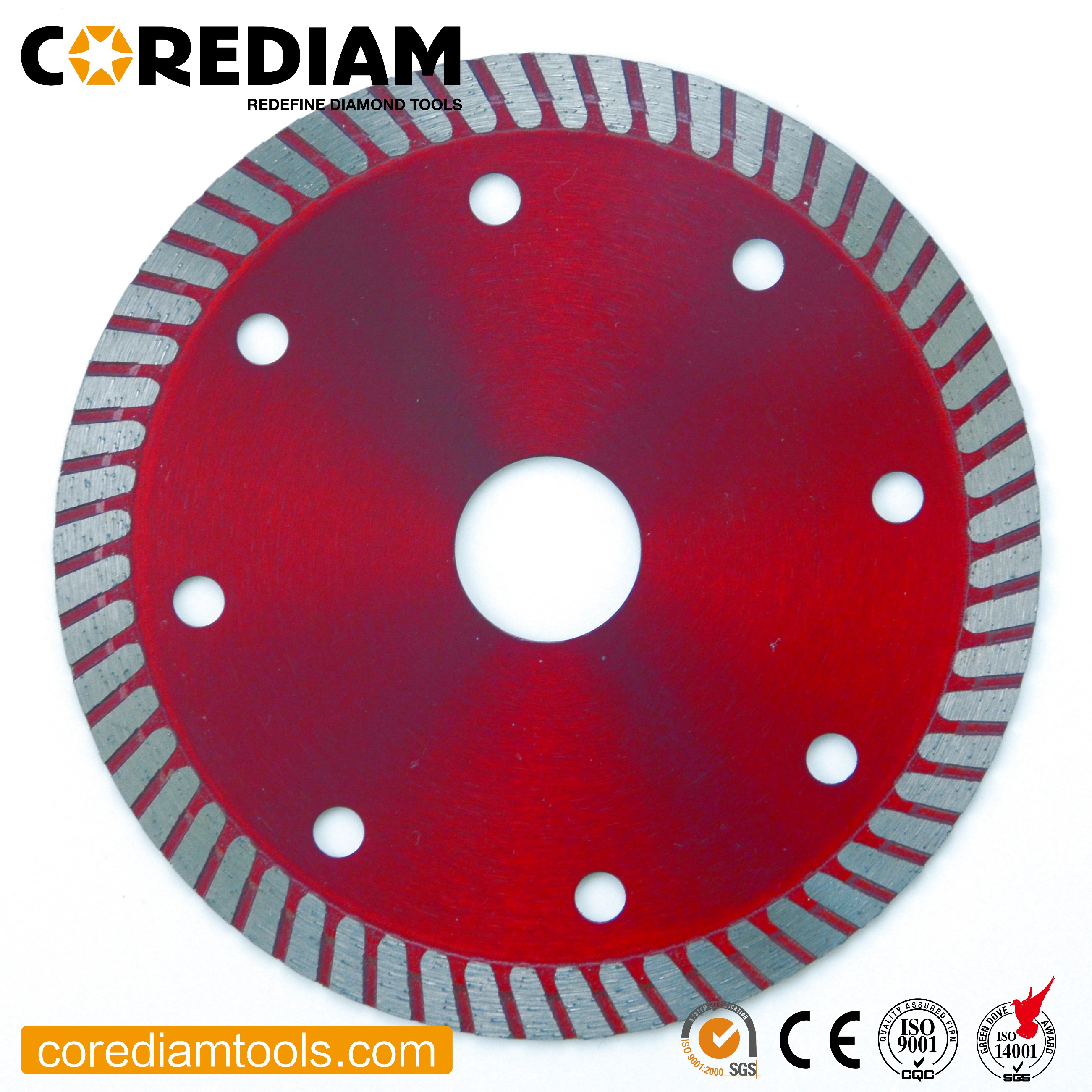

105mm Sinter Hot-Pressed Turbo Super thin blade

Tools,Hardware & Instruments Power Tools

FOB Price:US$ 2.00 / Piece(s)

MOQ:100 Piece(s)

Payment Method : L/C T/T D/P Western Union

Keywords:Diamond Saw Blades Turbo Saw Blade Sintered Turbo Blade Diamond Turbo Saw Blade Diamond Cutting Disc

Add to Favorites

Product Category: Tools,Hardware & Instruments > Power Tools Trademark:
Product Package: Carton/Pallet Specifications: 105mm-300mm
Place of Origin: China Port: Tianjin

1. Product Introduction

Sinter Hot-pressed Turbo Blade With Cooling Hole is sintered with turbo segments provide better removal of debris. There are some cooling holes on the steel core, they are designed for better cooling during cutting. Using specially designed water slots in the steel core, we can both improve the cooling and reduce the noise during cutting projects.  Diamond saw blade offer fast and smooth cutting performance due to the special design of slots and segments as well as long life. Circular saw blades are installed on handheld saw, floor saw, walk-behind saw, using for dry or wet cutting concrete, cured concrete, green concrete reinforced concrete cutting. The other size can be customed by your request.



Features of Sinter Hot-pressed Turbo Saw Blade for General Purpose

1). Sinter Hot-pressed technology, the segmented type with efficient cutting all range of materials.
2). Both Dry and Wet Use.
3). Maximizing the value with good performance.
4). Superior fast cutting
5). Long cutting life
6). Different grade to choose

2. Application

These blades are used for cutting brick, block, slate, masonry, concrete with good efficiency.

3. Specification

Item No.DiameterSegment HeightSegment WidthArbor
CGST10508105mm8mm2.2mm22.23mm
CGST11508115mm8mm2.2mm22.23mm
CGST12508125mm8mm2.2mm22.23mm
CGST15008150mm8mm2.2mm22.23mm
CGST18008180mm8mm2.5mm22.23mm
CGST23008230mm8mm2.7mm22.23mm
CGST30010300mm10mm3.2mm20/25.4mm
CGST35010350mm10mm3.2mm25.4mm
CGST40010400mm10mm3.2mm25.4mm


OEM service offered.

4. Delivery time

Our leading time will be about 2 weeks for the batch order.


5Corediam Introduction

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing the manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.

6. Quality Control Process
