STEP 4:

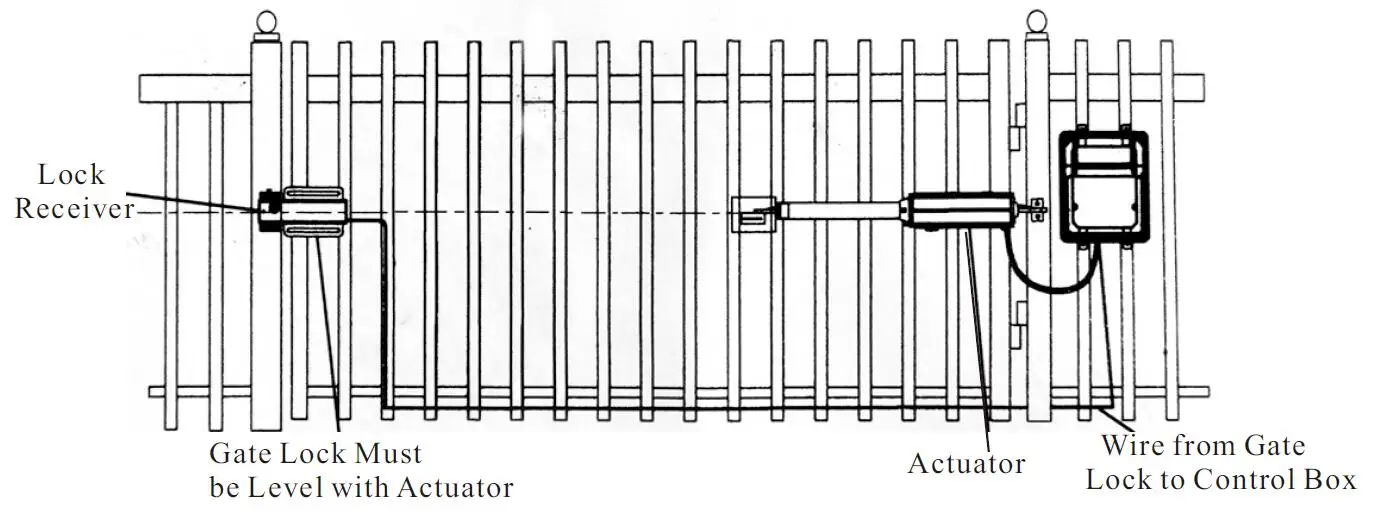

        Find a location on the fence post level with the gate lock and temporarily tie the lock receiver into position using the nylon ties provided. Slide the gate lock back and forth until it lines up with the receiver. The pin holes on the receiver must line up with the slot in the lock. Once this position is achieved, mark the post through the center of the two slots in the receiver.

STEP 5:

        Drill through the marks on the post and attach the receiver with the mounting bolts, washers and nuts that you have purchased.

STEP6:

        The gate lock must now be permanently mounted to the gate cross member or gate surface. Make sure that the lock is aligned with the receiver and mark holes on the gate through the upper and lower slots on the lock.

STEP7:

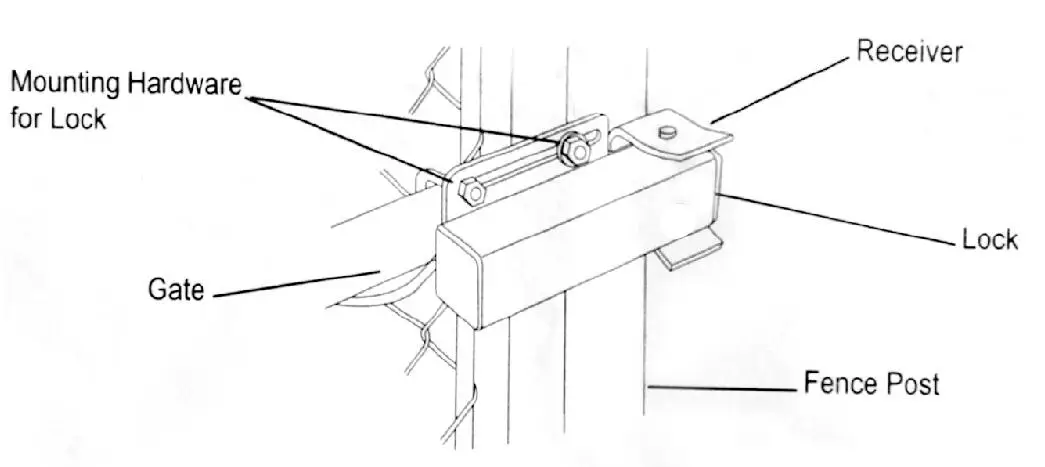

        Drill holes through the marks and attach the lock to the gate surface with the appropriate hardware. Do not use bolts greater than 5/16 inch diameter as they will not It through the slots. See illustration below.

STEP 8:

        Insert the clevis pin through the holes in the receiver and hammer the locking cap onto the bottom of the pin.

NOTE: it may be easier to remove the receiver from the post and then hammer the pin into the blocking cap on a hard surface. Then the receiver can be remounted to the post.

.
