Eignal - EMG 1000 Models (Metering / Dosing Pump)
Manufacturing & Processing Machinery Valves & Pumps & Compressors
MOQ:1 Piece(s)
Payment Method : T/T
Keywords:Metering Pumps dosing pump diaphragm pump acid pump fertigation pump chemigation pump coagulants dosing pump injection pump flocculants dosing pump
| Product Category: | Manufacturing & Processing Machinery > Valves & Pumps & Compressors | Trademark: | WRS |
| Product Package: | Carton Box | Specifications: | Standard |
| Place of Origin: | Port: | Shanghai |

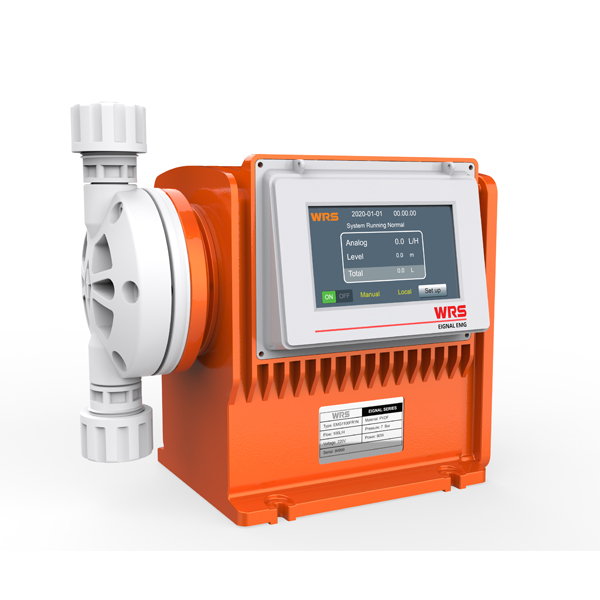

MOTOR DRIVEN DOSING PUMP
The EMG model is from the Eignal Series Dosing Pump family. This is a smart, digital intelligence model designed for this new digital world. This is a volumetric, mechanically operated reciprocating metering pump. Widely used in petroleum, chemical, food, pharmaceutical, paper, light industry, agriculture, water plant and other industrial and technological sectors, in the process of dealing with all kinds of media measurement and dosing applications. According to different media, different selection of materials is available, including PVC, SS304, SS316, PTFE and others.
EMG series metering pump can transport temperature -15 ℃ ~ 60 ℃, viscosity 0.3 ~ 1000cps corrosive or non-corrosive liquid which does not contain solid particles. Pump rated flow range is 15 ~ 130 l / h, with corresponding maximum output pressure of 10 ~ 4bar. The flow rate of the pump can be adjusted by the hand wheel from 0% to 100%, regardless of whether the pump is running or not. In the range of 30% ~ 100% flow rate, the steady-state accuracy is ± 1%. It is a simple structure, small energy consumption, accurate measurement practical metering pump. Different models can be configured according to the requirements of 220V, 380V or other voltage motor.
PUMP GENERAL SPECIFICATIONS
| Model | EMG 1000 |
| Type | Motor Driven Mechanical Diaphragm |
| Flowrate (LPH) | 15 ~ 150 |
| Pressure (Bar) | 10 ~ 4 |
| Pump Head Material | Standard： PVDF Optional：SS316 |
| Features | Full Manual Analog 4-20mA Pulse Signal Modbus RS485 Communication External ON/OFF Built-In Cycle Fuction Built-In Volumn Function Built-In Timer Function High Pressure Alarm / Stop Function Low Volumn Alarm / Stop Function |
| Number of pump head | 1 |
| Connection Type | Tube Compression Fitting / Glue Union / Weld Union |
| Flow Adjustment Method | Digital |
| Flow Adjustment Display Method | Full Touch Screen Display |
| Suction Lift (m) | 2 |
| Number of Valve Ball | Single |
| Stroke per minute | 80 ~ 180 |
| Accuracy | ±1% within 30% ~ 100% flowrate |
| Weight （kg） | Gross Weight: 9.5 KG Net Weight: 10KG |
MODEL SELECTION
| Model | Stroke per Minute (min-1) | Rated Flow (LPH) | Rated Pressure (Bar) | Rated Power (W) | Connection Type | ||
|---|---|---|---|---|---|---|---|
| PVDF | SS 316 | ||||||
| EMG0015 | 144 | 15 | 10 | 60 | Φ6×9 PE Hose Compression Fitting | Φ8×14 Weld Union | |
| EMG0025 | 144 | 25 | 10 | ||||
| EMG0040 | 144 | 40 | 10 | RC 1/2 Inner Thread NPT | |||
| EMG0060 | 144 | 60 | 7 | Φ10×16 Weld Union | |||
| EMG0080 | 144 | 80 | 7 | ||||
| EMG0100 | 144 | 100 | 7 | ||||
| EMG0120 | 144 | 120 | 7 | ||||
| EMG0150 | 180 | 150 | 5 | ||||
MATERIAL SELECTION
| Pump Head Material | Diaphragm | Valve Seat | Valve Ball | Inlet | Outlet |
|---|---|---|---|---|---|
| PVC | PVC | Viton Rubber | Ceramic | PE | PE |
| PVDF | PTFE | Viton Rubber | Ceramic | PE | PE |
| SS316 | PTFE | SS316 | Ceramic | SS316 | SS316 |
| Contact Name: | Mr. YI ZHANG | Contact Email: | in****l@wrsdosing.com |
| Contact Job Title: | Export Manager | Contact Mob: | 151***167 |
| Contact Tel: | Contact Fax: | ||
| Address: | Website: | https://www.wrsdosing.com |
Zhejiang WRS Machinery Equipment Co. ,Ltd is a branch office of WRS S.R.L. based in China, where our manufacturing plant established. We specialized in manufacturing high accuracy dosing pumps. Our pumps are solenoid and motor driven. Pumping method design ranges from diaphragm, hydraulic diaphragm, and piston design. WRS pumps are widely used in water/wastewater treatment, agriculture, food processing, pharmaceutical, chemical manufacturing, electroplating etc.
