Duct Outdoor Central loose tube Optical Fiber Cable Single Mode GYXTW

Electrical & Power Energy Wires,Cables & Accessories

FOB Price:US$ 300.00 / Meter(s)

MOQ:1000 Meter(s)

Payment Method : T/T

Keywords:Fiber Optic Cable Central Tube Optical Cable

Inquire


Add to Favorites

Product Category: Electrical & Power Energy > Wires,Cables & Accessories Trademark:
Product Package: Specifications:
Place of Origin: Port: Shanghai

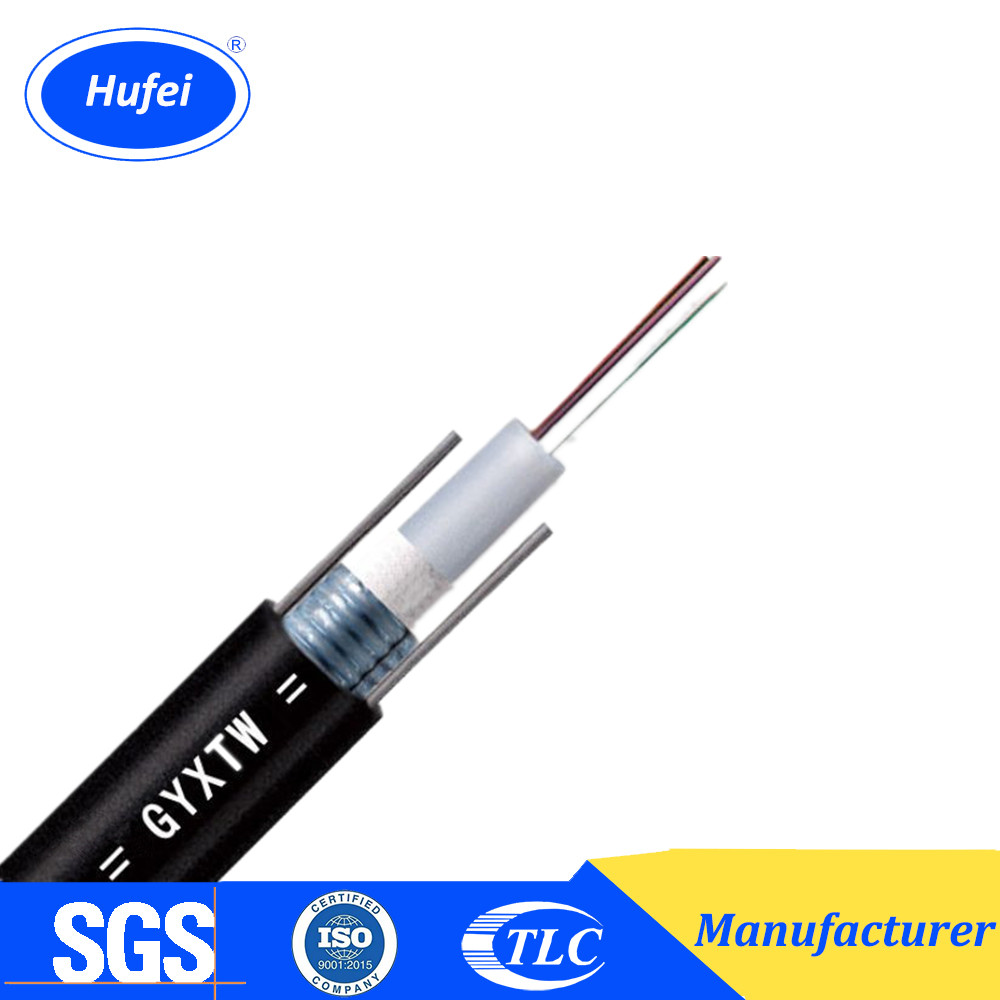

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

G.652

G.655

50/125μm

62.5/125μm



Attenuation

(+20oC)

@850nm



≤3.0 dB/km

≤3.0 dB/km

@1300nm



≤1.0 dB/km

≤1.0 dB/km

@1310nm

≤0.36 dB/km

≤0.40 dB/km



@1550nm

≤0.22 dB/km

≤0.23dB/km



Bandwidth (Class A)

@850nm



≥500 MHz·km

≥200 MHz·km

@1300nm



≥1000 MHz·km

≥600 MHz·km

Numerical Aperture



0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelengthλcc

≤1260nm

≤1480nm
