Safety valve
MOQ:6 Piece(s)
Payment Method : L/C T/T
Keywords:SCSSV 5000 PSI API14A Self qualizing HPHT
| Product Category: | Oil & Gas > Piping and valves | Trademark: | PrimeGuard |
| Product Package: | Specifications: | 2 3/8; 2 7/8; 3 1/2 | |
| Place of Origin: | China | Port: | Tian |
Description

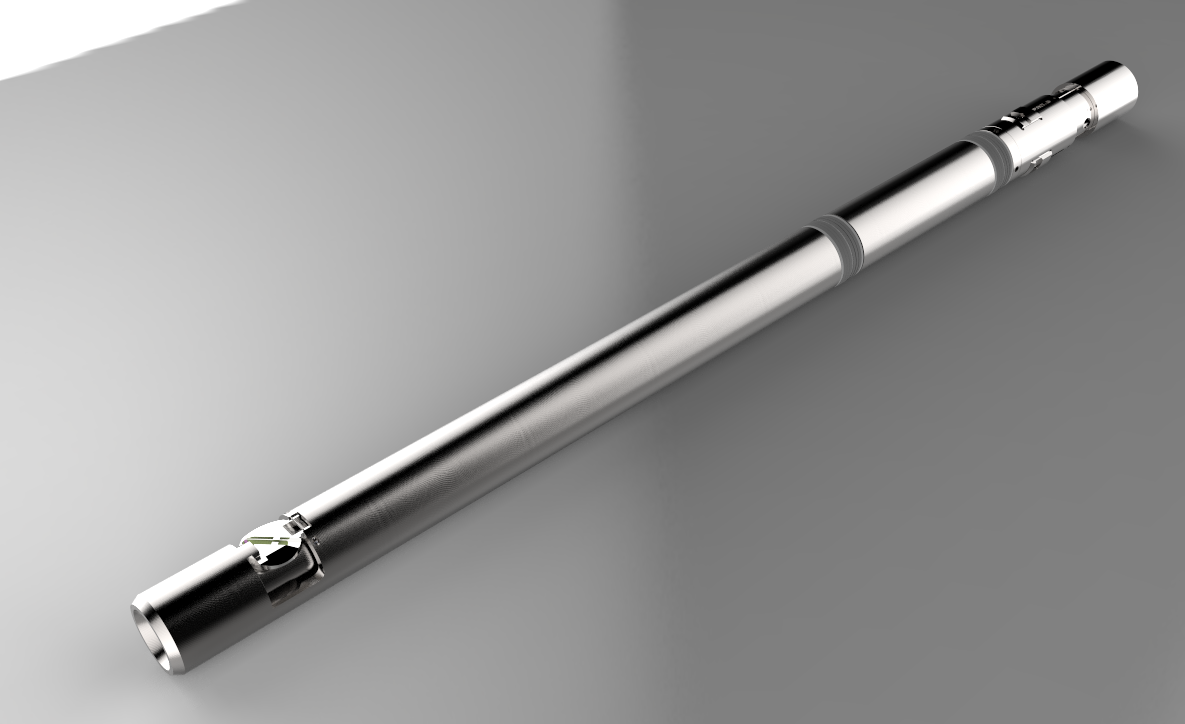

Subsurface safety valves are installed in the upper wellbore to provide emergency closure of the producing conduits in the event of an emergency. The wellbore is isolated in the event of any system failure or damage to the surface production control facilities. C series safety valve is a self-equalizing, surface controlled and flapper type. Mainly used for producing well or a liquid or gas environment in the injection well.
Features and Benefits
? Conforming to API 14A subsurface safety valve equipment standards
? Metal-to-metal seal in closed position
? Patented thru-the-flapper self-equalizing
? Working pressure: 5,000 psi～10,000 psi
? Working temperature: 500℉(260℃)
Specification
Tubing Size | Max OD | Min ID | Working Pressure | ||||
in | mm | in | mm | in | mm | psi | Mpa |
2 3/8 | 60.30 | 3.625 | 92.08 | 1.875 | 47.60 | 5,000 | 34.47 |
2 7/8 | 60.33 | 5.000 | 127.00 | 2.312 | 58.72 | 10,000 | 68.95 |
3 1/2 | 88.90 | 5.700 | 144.78 | 2.812 | 71.42 | 10,000 | 68.95 |
4 1/2 | 114.30 | 7.539 | 191.50 | 3.813 | 96.90 | 10,000 | 68.95 |
5 1/2 | 139.70 | 8.592 | 218.20 | 4.563 | 115.90 | 10,000 | 68.95 |
| Contact Name: | Mrs Mary Liu | Contact Email: | li****l@primestaroil.com |
| Contact Job Title: | Commercial Manager | Contact Mob: | 156***889 |
| Contact Tel: | 8615620334889 | Contact Fax: | |
| Address: | Tianjin | Website: |
PrimeStar Oil Technology CORP. (hereinafter referred to as " PrimeStar ") is an established manufacturer and service provider of a comprehensive range of downhole drilling & completion tools.
PrimeStar range comprises
PrimeGuard series of subsurface safety valves,
PrimeSeal series of packers,
StarEdge series performance mills,
StarReam Drilling Reamer
Star Mag String Magnet,
StarClear Casing Scraper,
StarFlush Circulation Sub, etc.
PrimeStar is registered as a National High-tech Enterprise and Beijing science and technology R&D institutions.
PrimeStar is listed on National Equities Exchange and Quotations with Stock Code 430321.
Quality Assurance and Quality Control System
PrimeStaris an ISO9001, ISO14001 and OHSAS18001 certified company.
API 14A API 11D1 APIQ1
SCSSV and packers are monogram licensed to API 14A and API 11D1. The company has all the quality system in place for design, manufacturing and quality monitoring to ensure a consistent high quality which is similar to international majors.
HSE Management System
PrimeStar is committed to provide the safest working place and always regard safety as its top priority. Rigorous policies and procedures are in place to ensure this commitment is improved on a continuous basis. Manager and employees at all levels are provided with sufficient tools and training to implement safety practices for the prevention of accidents.
