Functions and Features

• Color LCD displaying, touch screen and keypad for operating.

• Four types of working mode: Flow rate mode; Volume dispensing mode; Time dispensing mode; Copy dispensing mode.

• Three dispensing modes store five groups of working parameters automatically.

• Easy button control to reverse direction, start/stop and run full speed (for cleaning).

• Display and control flow rate, accumulated dispensing volume.

• Expert guide calibration flow function.

• Remote infrared control (optional).

• Professional operating system.

• Intelligent temperature control technology reduces working noise.

• External on/off voltage input controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; External analog signal input adjusts the rotating speed.

• MODBUS RS485 interface, easy to connect external device.

• Internal double-deck isolation structure; circuit board with conformal coating makes it dust proof and moisture proof.

• Anti-interference feature, wide input voltage range for complex power environment.

• Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid, alkali, sodium and the organic solvents.

• Large torque output, can drive multi-channels and various types of pump heads.

• Optional footswitch or timer for dispensing fluid.

Specifications

• Flow range: 0.0001-1700 mL/min

• Speed range: 0.1-150 rpm

• Speed resolution: 0.1 rpm

• Flow accuracy: 0.5%

• Power supply: AC 100-240V,50Hz/60Hz

• Power consumption: < 60W

• External logic level control signal: 5V, 12V (standard), 24V (optional)

• External analog control signal: 0-5V (standard), 0-10V, 4-20mA (optional)

• Communication interface: MODBUS RS485

• Operating condition: 0~40 °C

• Relative humidity: < 80%

• IP grade: IP31

• Dimensions (L x W x H): 285mm × 250mm × 195mm (11.2 inch x 9.8 inch x 7.7 inch)

• Weight: 6.5kg (14.3 lbs)

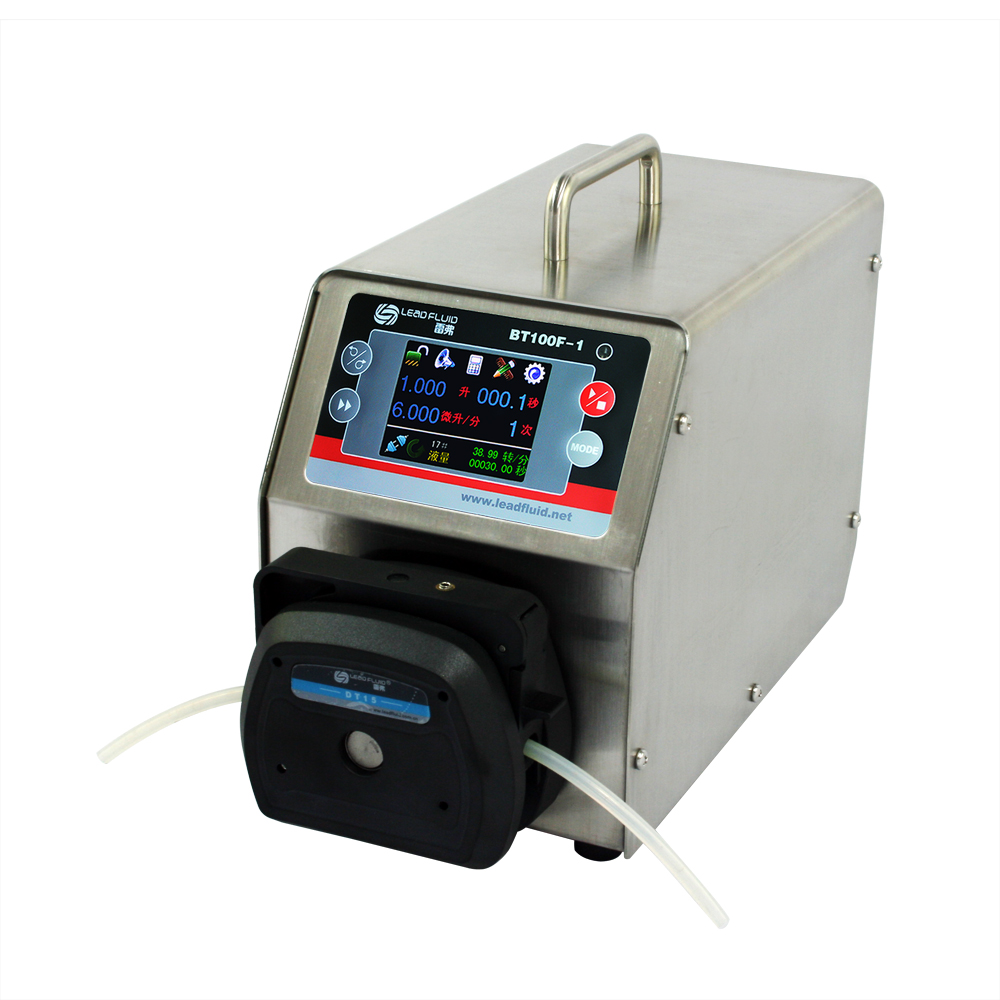

BT100F-1 Suitable Pump Heads and Tubing, Flow Parameters
