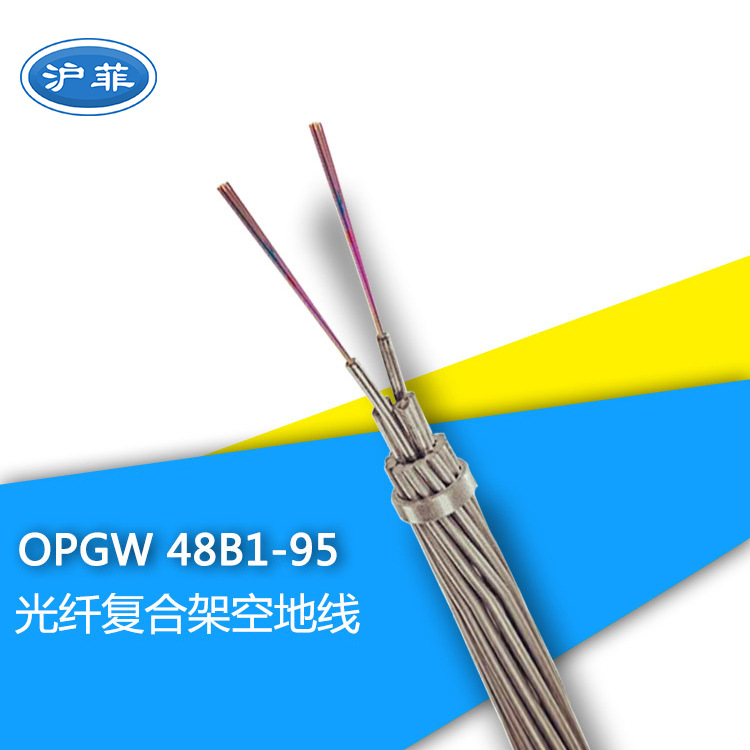

Fiber Optical Composite Overhead Ground Wire Opgw Cable

Electrical & Power Energy Wires,Cables & Accessories

FOB Price:US$ 1,000.00 / Meter(s)

MOQ:1000 Meter(s)

Payment Method : T/T

Keywords:Optical Fiber Cable Overhead single mode

Inquire


Add to Favorites

Product Category: Electrical & Power Energy > Wires,Cables & Accessories Trademark:
Product Package: Specifications:
Place of Origin: Port: shanghai

Central Tube Optical Ground Wire (OPGW)

The Central Tube Optical Ground Wire (OPGW) is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. are the most widely used cables ,their design is fully adapted to the most common electric line needs.

Typical design for Single Layer:

SpecificationFiber CountDiameter (mm)Weight(kg/km)RTS (KN)Short Circuit Capacity(KA2s)
OPGW-32(40.6;4.7)127.824340.64.7
OPGW-42(54.0;8.4)249313548.4
OPGW-42(43.5;10.6)24928443.510.6
OPGW-54(55.9;17.5)3610.239467.813.9
OPGW-61(73.7;175)4810.843873.717.5
OPGW-61(55.1;24.5)4810.835855.124.5
OPGW-68(80.8;21.7)5411.448580.821.7
OPGW-75(54.5;41.7)60124596336.3
OPGW-76(54.5;41.7)601238554.541.7

Typical design for Single Layer:

SpecificationFiber CountDiameter (mm)Weight(kg/km)RTS (KN)Short Circuit Capacity(KA2s)
OPGW-96[121.7;42.2]127.824340.64.7
OPGW-127[141.0;87.9]249313548.4
OPGW-127[77.8;128.0]24928443.510.6
OPGW-145(121.0;132.2)2810.239467.813.9
OPGW-163(138.2;183.6)3610.843873.717.5
OPGW-163(99.9;213.7)3610.835855.124.5
OPGW-183(109.7;268.7)4811.448580.821.7
OPGW-183(118.4;261.6)48124596336.3

Stranded Optical Ground Wire (OPGW)
The Stranded Optical Ground Wire (OPGW) is stranded by double or three layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires.

Typical design for Double Layer:

SpecificationFiber CountDiameter (mm)Weight(kg/km)RTS (KN)Short Circuit Capacity(KA2s)
OPGW-89(55.4;62.9)2412.638155.462.9
OPGW-110(90.0;86.9)241460090.086.9
OPGW-104(64.6;85.6)2813.644164.685.6
OPGW-127(79.0;129.5)361553779.0129.5
OPGW-137(85.0;148.5)3615.657585.0148.5
OPGW-145(98.6;162.3)481671998.6162.3
